SLIM SOFA

PRODUCT INFORMATION

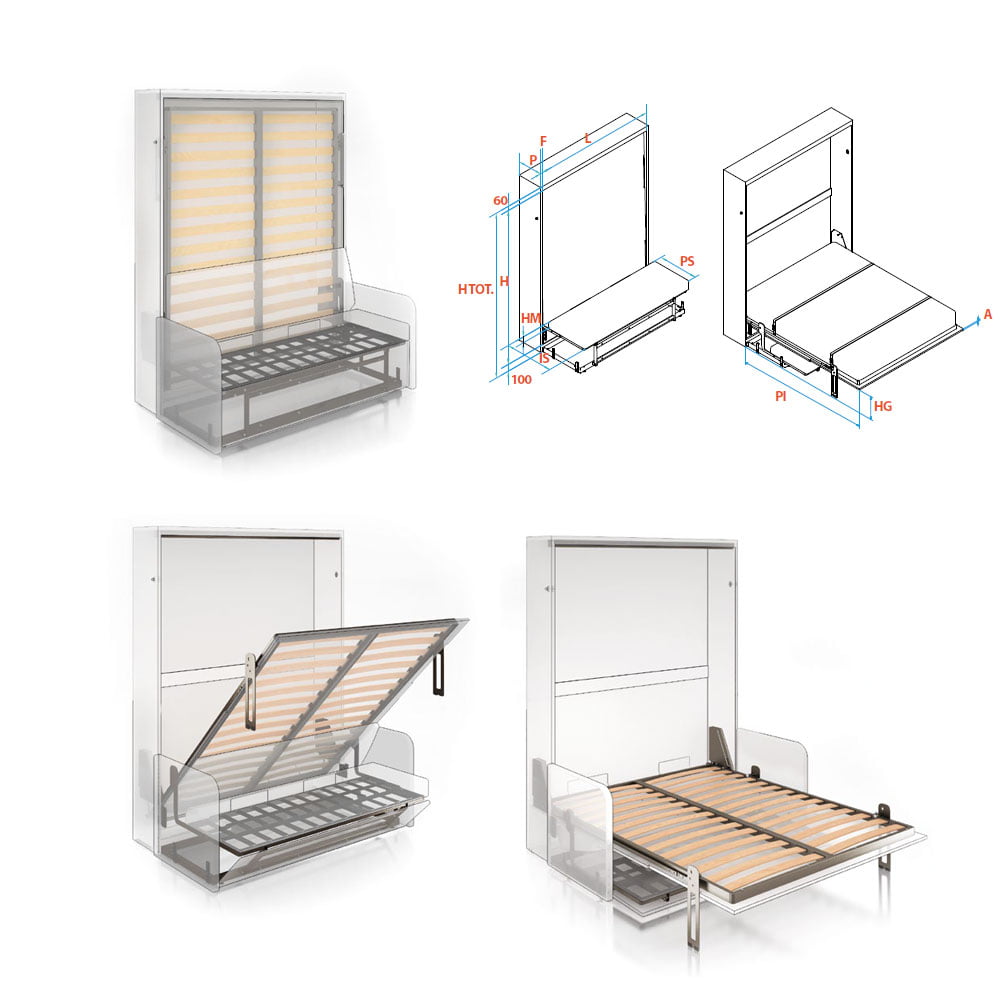

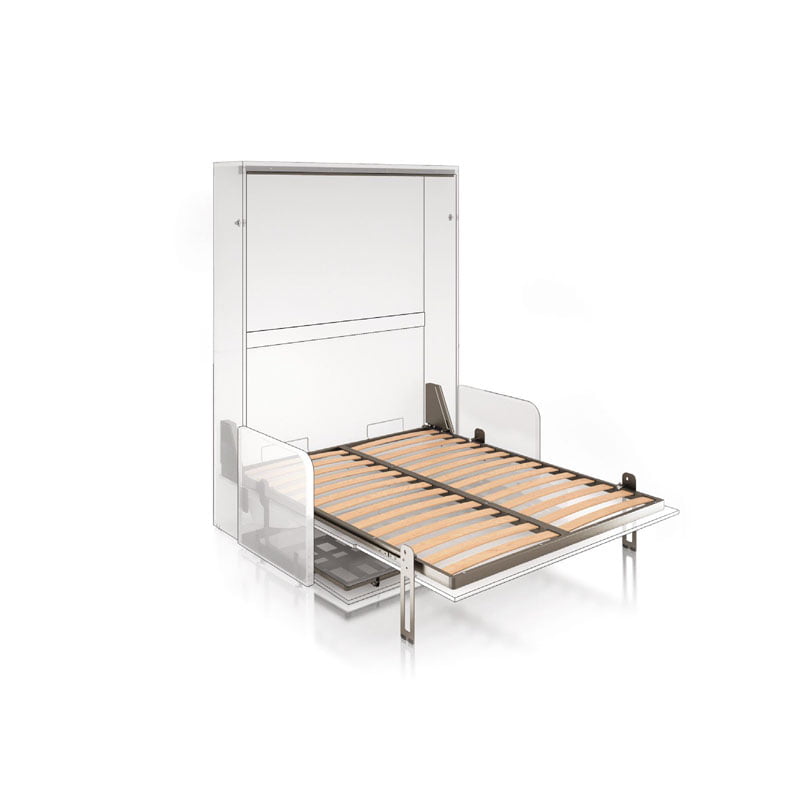

SYSTEM FOR VERTICAL BEDS TO BE USED IN CABINETS WITH MINIMUM DEPTH OF 350MM FOR ALL BED BASE SIZES WITH MAT TRESSES OF STANDARD DIMENSIONS H.200MM. THE DOOR IS STRAIGHT AND CAN BE REALIZED WITH REDUCED DIMENSIONS IN ALL HEIGHT FOR ACCOMODATE THE SOFA. THE HANDLING MECHANISM IS CONTROLLED BY ADEQUATE GAS SPRINGS.

• Bed base and matters: 1600×2000
• Mattress, Kg: 30-35 kg.
• Max. mattress H: 200.
• Total H of structure: 2320.
• Width of structure: 1693.
• Height of structure: 2160.
• Min. Depth of structure: 350.
• Min. thickness of side: 25.
• Max. thickness of door: 18.
• Door weight approximate: 47 kg (±4%).

Set is composed of:

• no.01 SLATTED BED BASE (tube profile: bed sides and footboard side 50×25, headboard side 50×30) with synchronized bed leg and transmission system for bed
  legs; with door retaining bracket and belts to hold the mattress in place;
• no. 01 MECHANISM KIT with safety covers
• no. 01 SOFA SUPPORT KIT + BED BASE FOR SOFA.
