GLIDER

PRODUCT INFORMATION

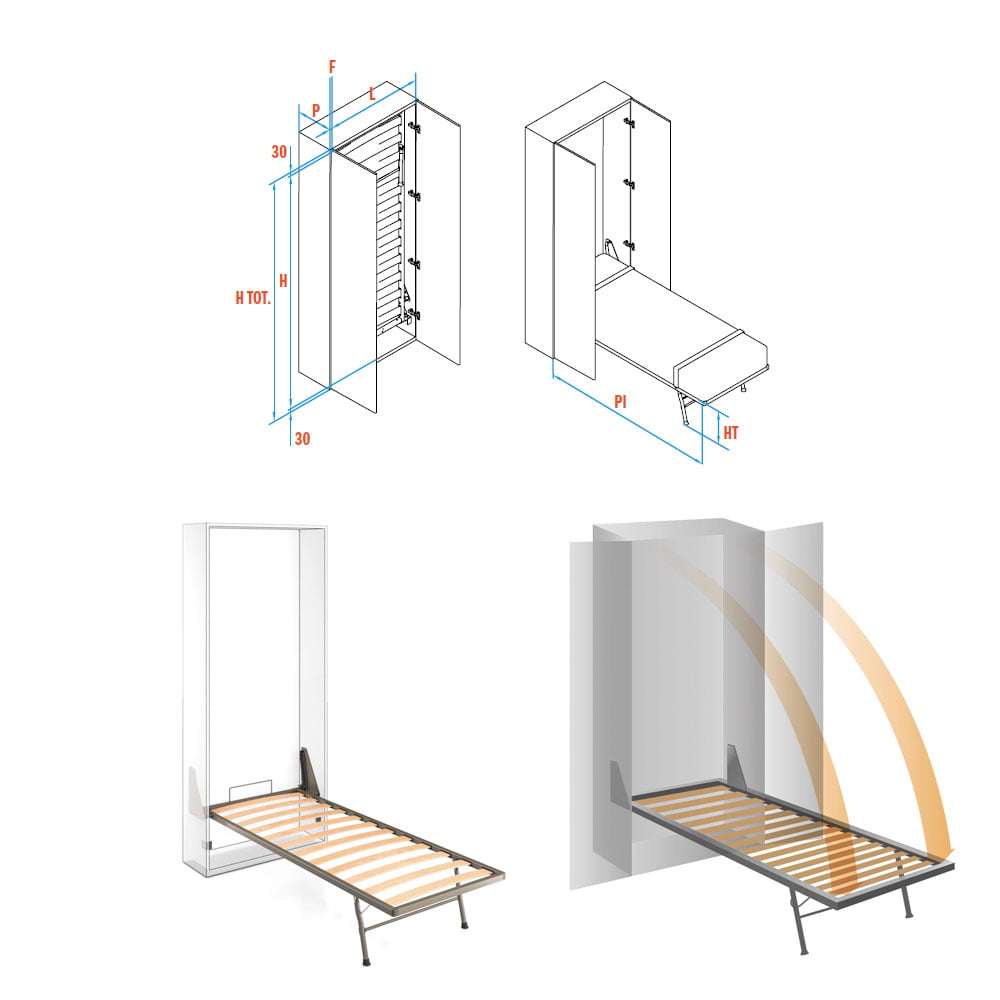

SYSTEM FOR VERTICAL BEDS TO BE USED IN CABINETS WITH MINIMUM DEPTH OF 350MM FOR ALL BED BASE SIZES WITH MAT TRESSES OF STANDARD DIMENSIONS H.200MM. THE DOOR IS STRAIGHT AND CAN BE REALIZED WITH REDUCED DIMENSIONS IN ALL HEIGHT FOR ACCOMODATE THE SOFA. THE HANDLING MECHANISM IS CONTROLLED BY ADEQUATE GAS SPRINGS.

  • Bed base and matters: 1600×2000
  • Mattress, Kg: 30-35 kg.
  • Max. mattress H: 200.
  • Total H of structure: 2320.
  • Width of structure: 1693.
  • Height of structure: 2160.
  • Min. Depth of structure: 350.
  • Min. thickness of side: 25.
  • Max. thickness of door: 18.
  • Door weight approximate: 47 kg (±4%).

Set is composed of:

  • no. 01 SLATTED BED BASE (tube profile: bed sides, footboard and headboard side 30x30mms) with folding leg for use in hinged-door wardrobes at least 320mm deep and belts to hold the mattress in place; Suitable for mattresses up to 180 mm high.
  • no. 01 MECHANISM KIT with gas springs

NOTES

Download catalog page

ORDER INFORMATION

£456.96 (ex. VAT) £548.35 (inc. VAT)

SKU: glider_1900 Category: Tag:
