OPLA STANDING

PRODUCT INFORMATION

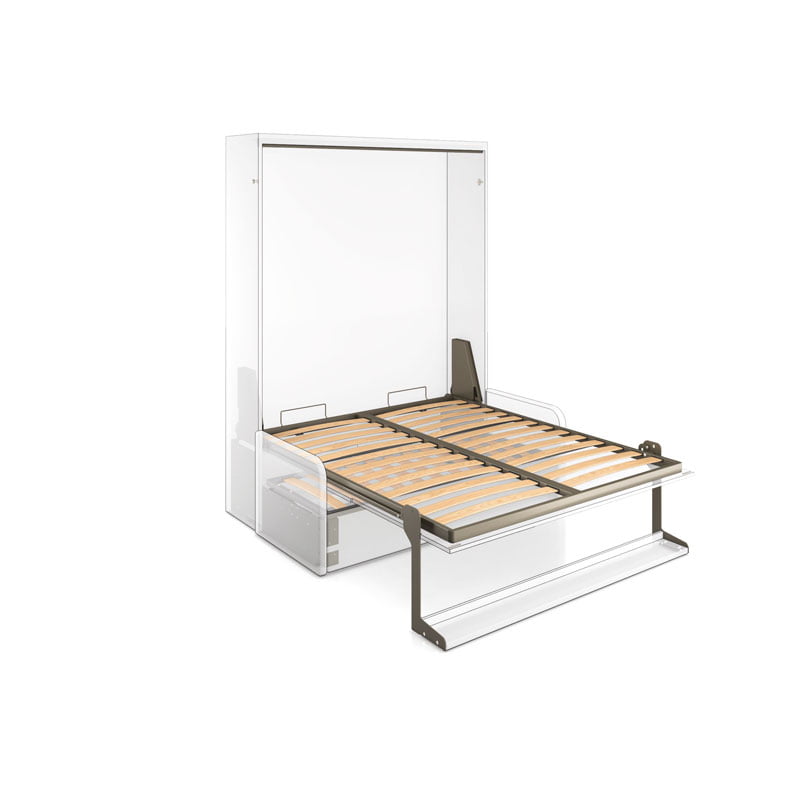

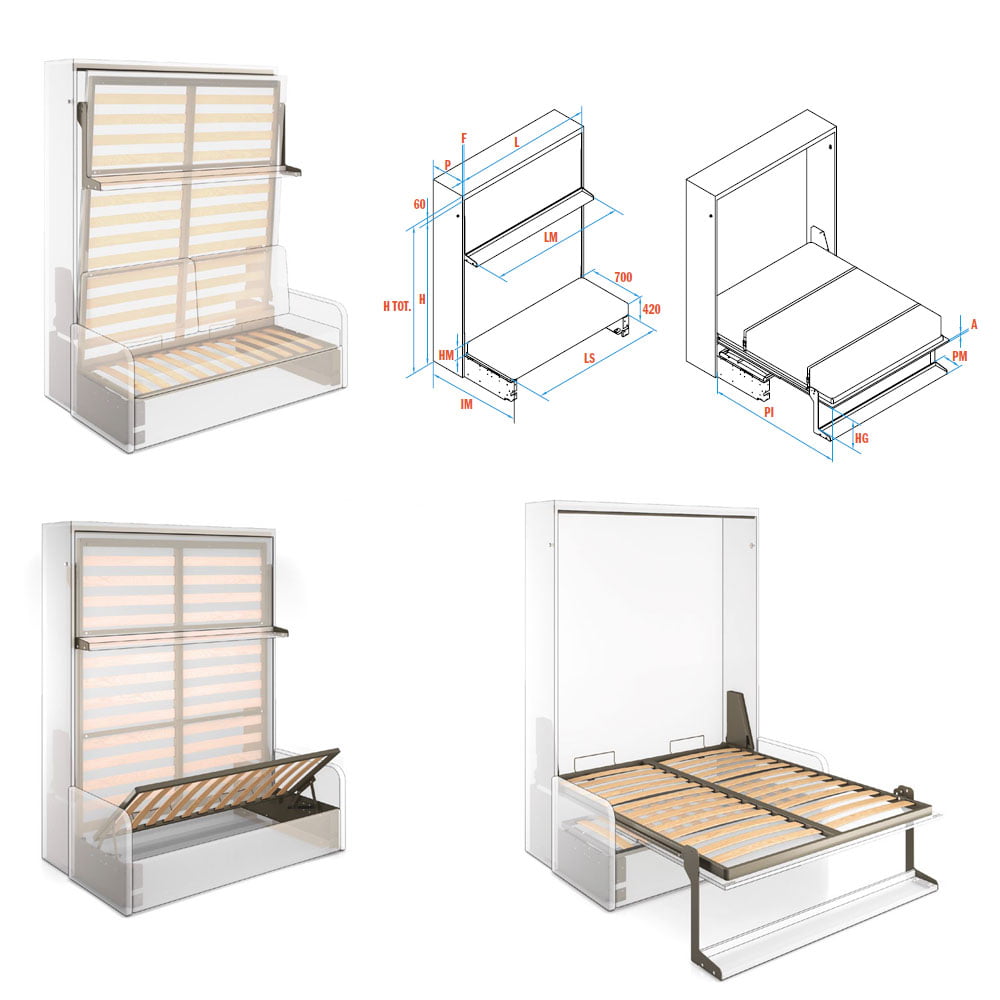

VERTICAL BED SYSTEM FOR USE IN WARDROBES AT LEAST 420 mm DEEP AND WITH SIDES AT LEAST 25 mm THICK. THE DOOR IS PLAIN AND DESIGNED TO ACCOMMODATE THE SOFA. IT IS DESIGNED SO THAT A STORAGE COMPARTMENT CAN BE BUILT UNDER THE SOFA SEAT. THE SUPPORTING LEG IS ALSO USED TO SUPPORT THE SHELF, WHICH STAYS PARALLEL TO THE GROUND WHILE BEING MOVED. THE OPENING AND CLOSING MECHANISM IS CONTROLLED BY SUITABLE GAS SPRINGS.

  • Bed base and matters: 1600×2000
  • Max. mattress H: 230.
  • Mattress Kg: 30-35kg
  • Total H of structure: 2365.
  • Width of structure: 1693.
  • Height of structure: 2360.
  • Min. Depth of structure: 420.
  • Min. thickness of side: 25.
  • Max. thickness of door: 18.
  • Door weight approximate: 47 kg (±4%)

Set is composed of:

  • no. 01 SLATTED BED BASE (tube profile: bed sides and footboard side 50×25, headboard side 50×30) with synchronized bed leg used as shelf and transmission system for legs; belts to hold the mattress in place;
  • no. 01 MECHANISM KIT with safety covers and mechanism for storage compartment;
  • no. 01 SOFA SUPPORT KIT + BED BASE FOR SOFA.

NOTES

Download catalog page

ORDER INFORMATION

£1,301.83 (ex. VAT)

SKU: OPLASTANDING_2000 Category: Tag:
