OPLA

PRODUCT INFORMATION

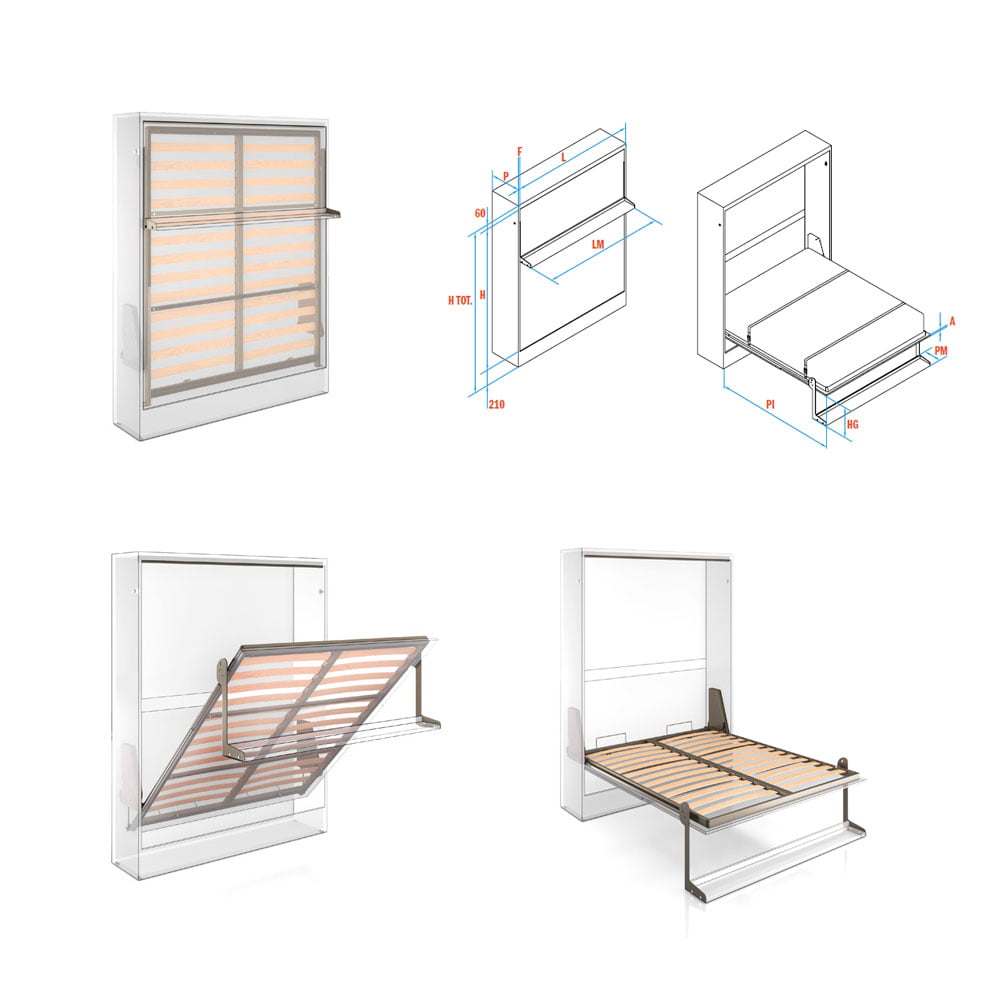

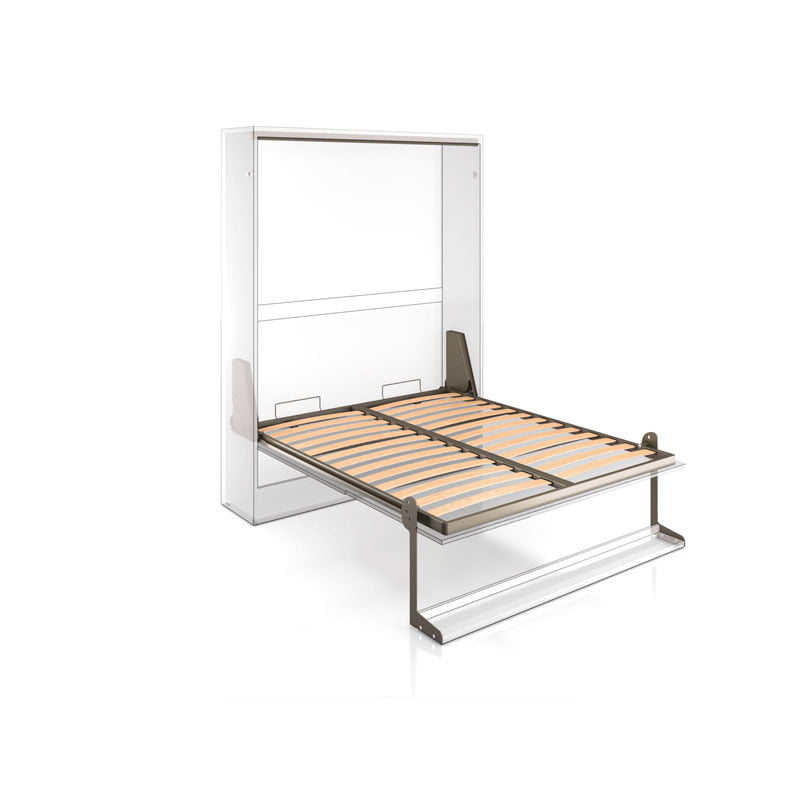

VERTICAL BED SYSTEM FOR USE IN WARDROBES AT LEAST 420 mm DEEP. THE DOOR IS PLAIN AND DESIGNED TO ACCOMMODATE THE SHELF. THE SUPPORTING LEG IS ALSO USED TO SUPPORT THE SHELF, WHICH STAYS PARALLEL TO THE GROUND WHILE BEING MOVED. THE OPENING AND CLOSING MECHANISM IS CONTROLLED BY SUITABLE GAS SPRINGS.

• Bed base and matters: 1600×2000
• Mattress, Kg: 30-35 kg.
• Max. mattress H: 230.
• Total H of structure: 2365.
• Width of structure: 1693.
• Height of structure: 2095.
• Min. Depth of structure: 420.
• Min. thickness of side: 25.
• Max. thickness of door: 15.
• Door weight approximate: 46 kg (±4%).
• Shelf weight approximate: 14,5 kg (±4%).

Set is composed of:

• no. 01 SLATTED BED BASE (tube profile: bed sides, footboard 50X30 mm and headboard side 50×25 mms) with synchronized opening leg for shelf support and
  transmission system; belts to hold the mattress in place; standard mattress stoppers; upper crossbar as door retainer;
• no. 01 MECHANISM KIT with standard safety covers CARTERS

NOTES
