Triade Mini

PRODUCT INFORMATION

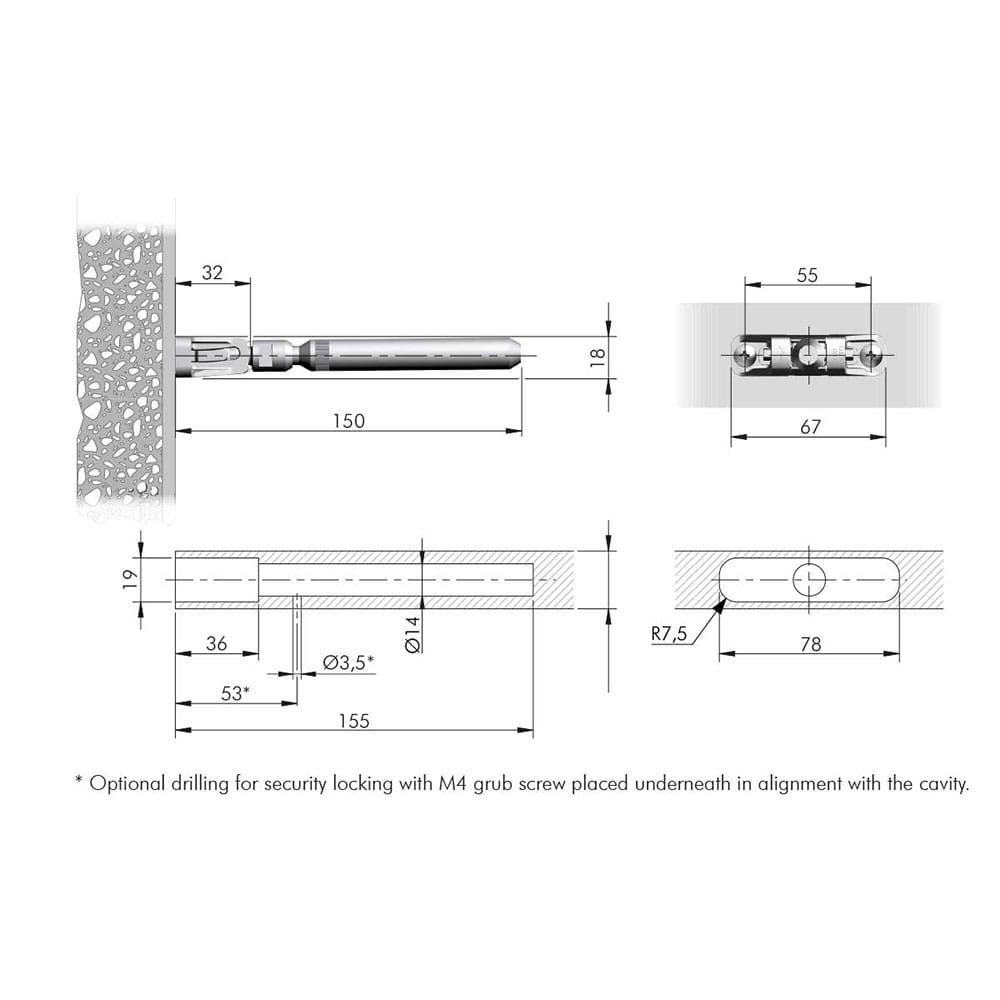

TRIADE MINI is the concealed mounting bracket for shelves 25 mm thick. It has been conceived to simplify the shelf installation. It is provided with three indipendent adjustments:

• 1) VERTICAL: before installing the shelf, the mounting brackets can be adjusted in height and (vertically) aligned through the slots.
• 2) HORIZONTAL: while placing the shelf in position, the supporting pins can be slided horizontally.
• 3) INCLINATION: when the shelf is partially inserted, the shelf angle can be adjusted front to back by turning the supporting pins with a 12 mm open-ended wrench.
• The capacity loading is 4,5 Kg each (shelf weight included) for a shelf max 200 mm deep.
• The minimum shelf depth required is 165 mm.

ADDITIONAL BENEFITS DUE TO SECURITY LOCKING FEATURE

• Simple additional drilling.
• Small diameter hole in the shelf (only Ø3,5 mm).
• Multiple assembly and disassembly of the shelf.
• Suitable for all thicknesses.
• Tested on plywood, mdf and chipboard.

This product requires :

• Shelf bracket support

Download mounting instructions.
