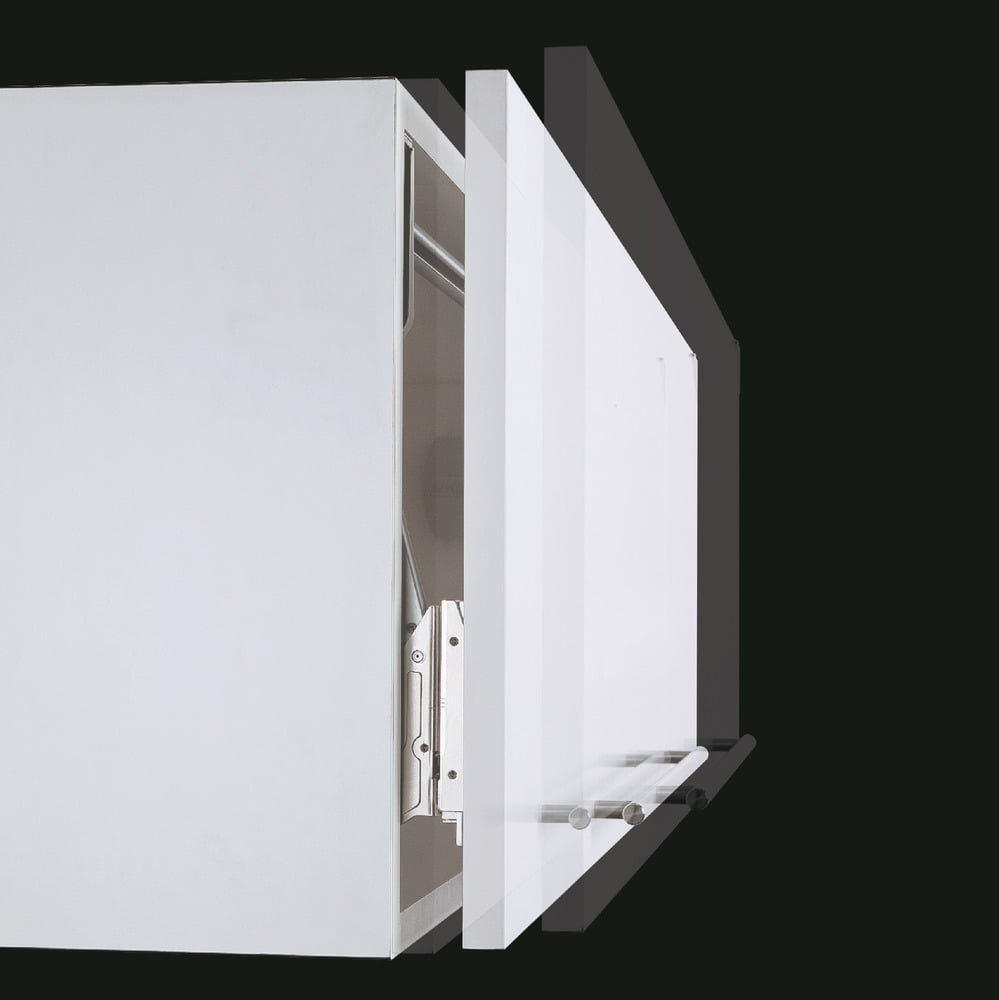

SWING lift-up stay SLU-ELAN


For upward-opening flap doors.
Equipped with:

  • Lift assist (to make flap doors feel lighter)
  • Free stop (holds position at any angle with a certain range)
  • Soft-closing (slows down closing speed to prevent slamming near closing radius)
  • Successfully passed 30,000 open/close cycles in a private test.

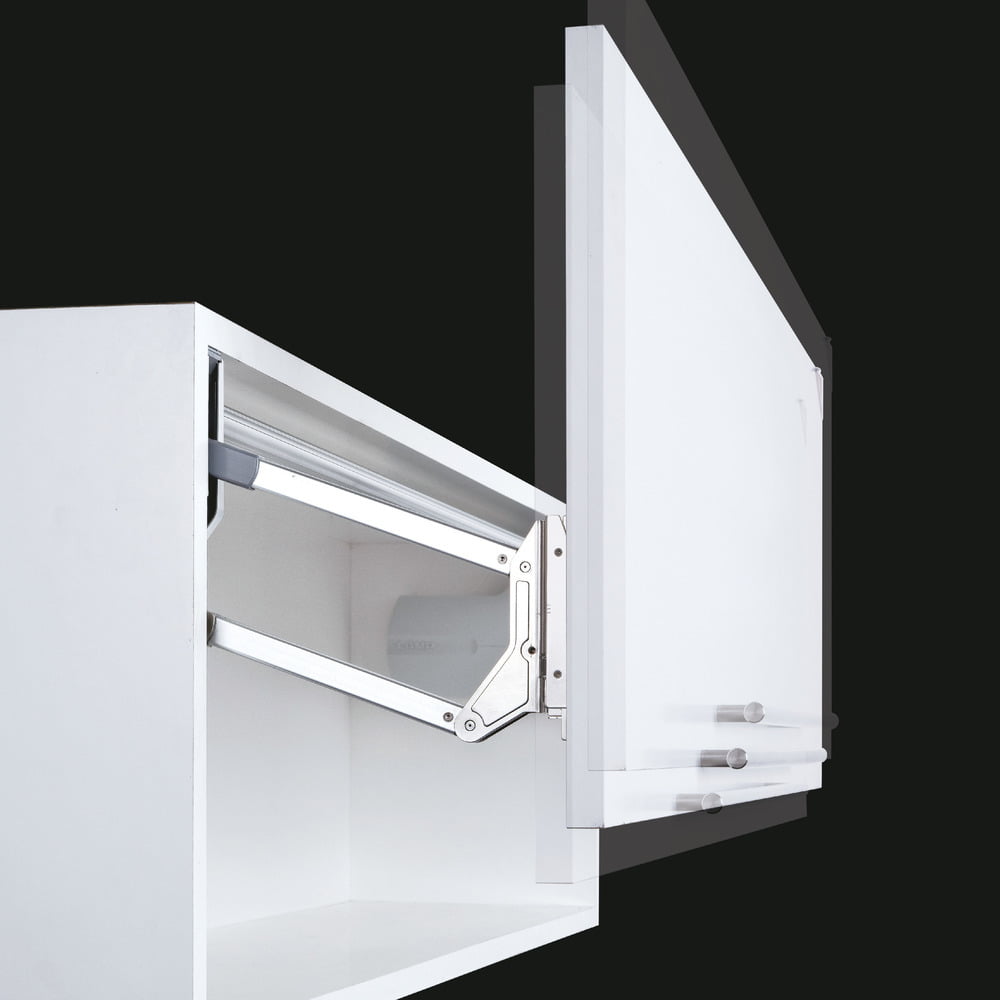

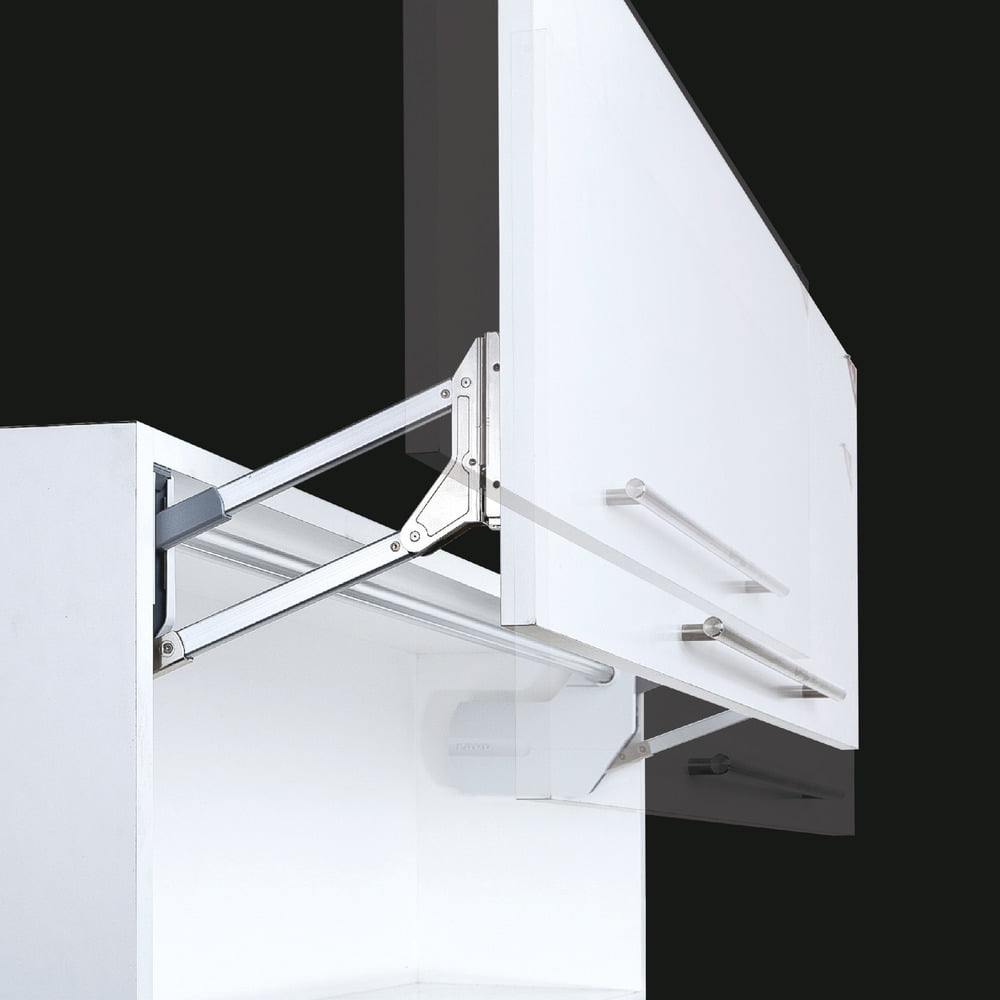

  • Placed at the top of interior of the cabinet, significantly reducing dead space and not getting in the way when installing shelves.
  • Easy alignment
  • Fast and easy installation: Body is attached to mounting plate (on flap) by simply snapping it
  • Max Flap Width,mm : 1800.
  • Min Flap Height,mm: 390.
  • Max Flap Height,mm: 500
  • Material: Aluminum Alloy, ABS.
  • Finish/Color: Anodized/Light Grey.

Parts Included:

  • Mounting plate for main body (2 pcs)
  • Guide plate (2 pcs)
  • Countersunk head tapping screw 3.5×38 for main body (6 pcs)
  • Binding head tapping screw 3.5×15 for mounting plate (6 pcs)
