MonoFlat FAD-5


  • MonoFlat FAD-5.
  • Maximum door weight: 5 kg/Door.

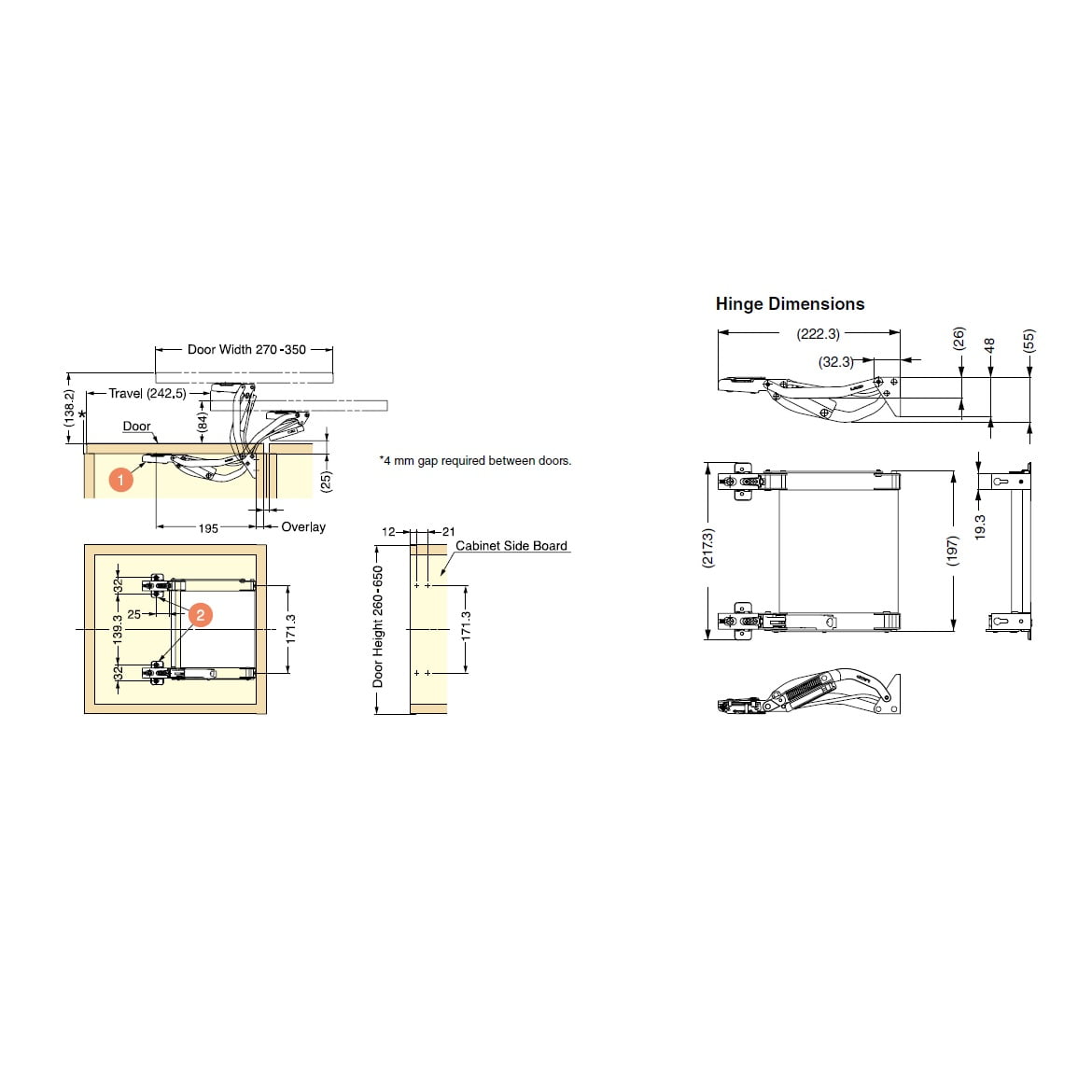

  • Door width: 270–350 mm, height: 260-650 mm, thickness: 15–20 mm.

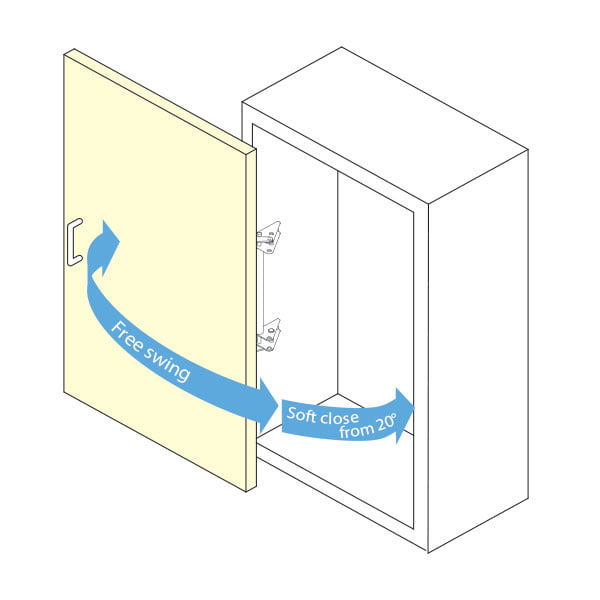

  • Lateral swing system for smaller cabinets with an overlay installation.
  • Smaller opening radius than swing open doors. Does not get in the way after being opened.
  • Doors close gently and quietly.
  • 3-way adjustment post-installation: vertical(±3mm), horizontal(±2.5mm), paralel (5°).
  • Great solution for kitchen, bathroom and laundry room cabinets.
  • Various types of installations: Can be used on single or double doors.


 Download catalog page.

Download Instruction Manual.


£90.68 (ex. VAT) £108.82 (inc. VAT)
