Pegasus LIBELL shelf lift mechanism


  • Pegasus LIBELL shelf lift mechanism.
  • Rotating adjuster for setting the brake/soft-swinging mechanism.
  • System can be adjusted by the weight of items put in the shelves.
  • Just a light pull on the handle brings the unit’s contents down to eye level.
  • Maximizes storage space for tableware, groceries and appliances.
  • Shelves can easily be removed for cleaning and clipped back into the frame.
  • Load capacity – 0-12 or 10-20 kg.

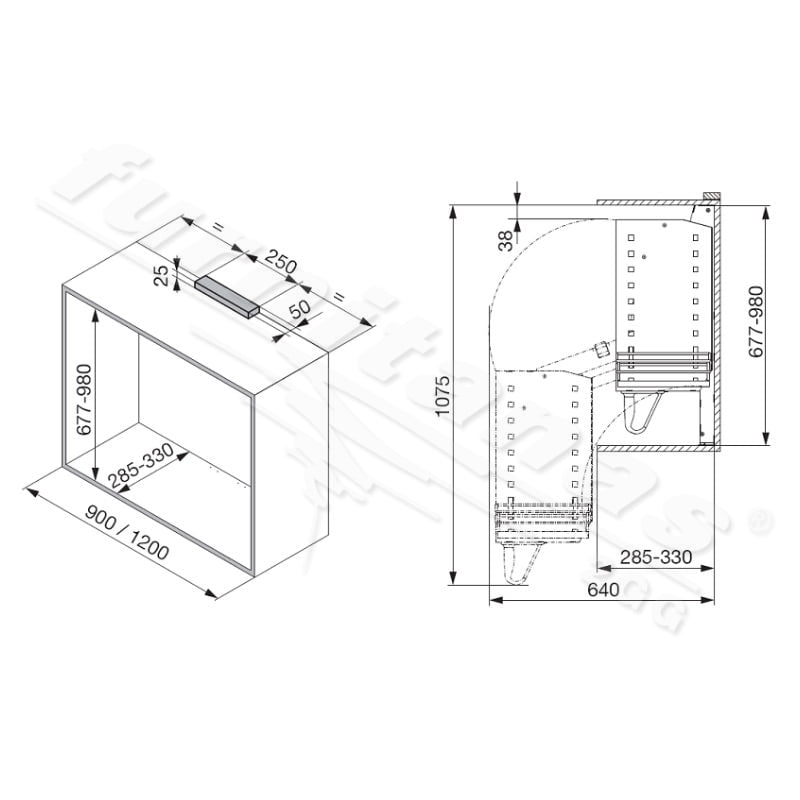

  • Cabinet width – 900-1200 mm.
  • Inner cabinet depth – 285-330 mm.
  • Inner cabinet height – 677-980 mm.
  • Suitable for cabinets with width of 900 or 1200 mm.

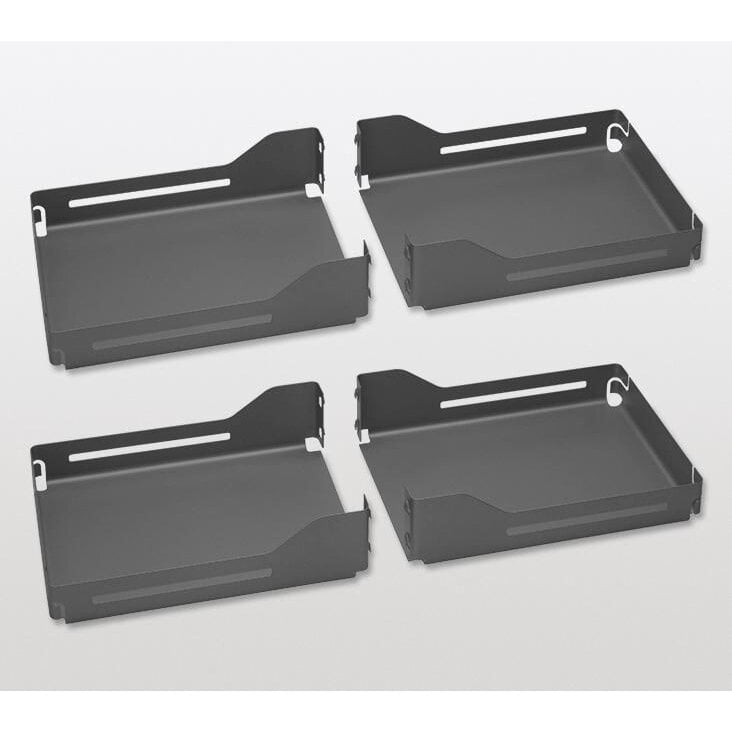

Set contains: – Shelves set (4 pcs.)

 Download mounting instructions.

Download catalog page.
