MonoFlat FAD-44


  • MonoFlat FAD-44.
  • Maximum door weight: 35 kg/Door.
  • Door width: 800–850 mm, height: Max. 2380 mm for FAD-44, Max. 2980 mm for FAD-44L, thickness: 24-38 mm.

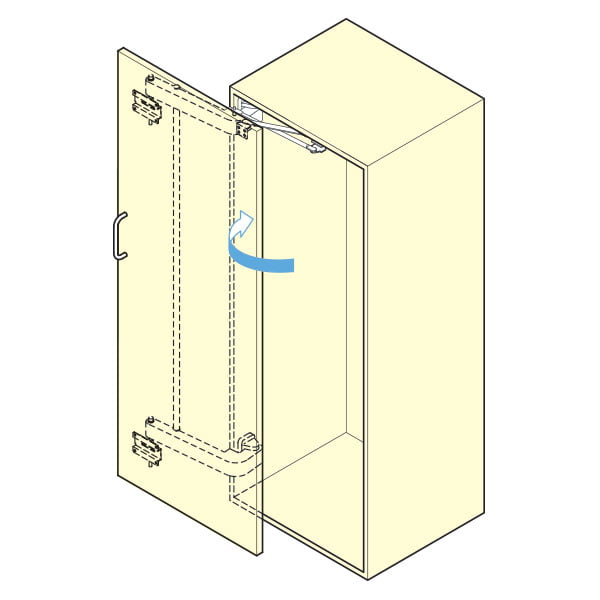

  • Lateral swing system for full-sized cabinets with an overlay installation.
  • Doors close flush with neighboring walls or doors for a clean and sleek appearance.
  • Smaller opening radius than swing open doors. Does not get in the way after being opened.
  • No need to do any processing on the bottom of the cabinet.
  • Height can be adjusted by cutting the arm connector.
  • Uses a gas spring to make opening and closing smooth with little resistance.
  • Holds door firmly in fully opened and fully closed positions.
  • Can be adjusted vertically (-3-+7 mm) and horizontally (+/- 7 mm) post installation.
  • For wooden frames. FAD-54 is a similar product for aluminium frames.
