KIARO Opening System ADJ

PRODUCT INFORMATION

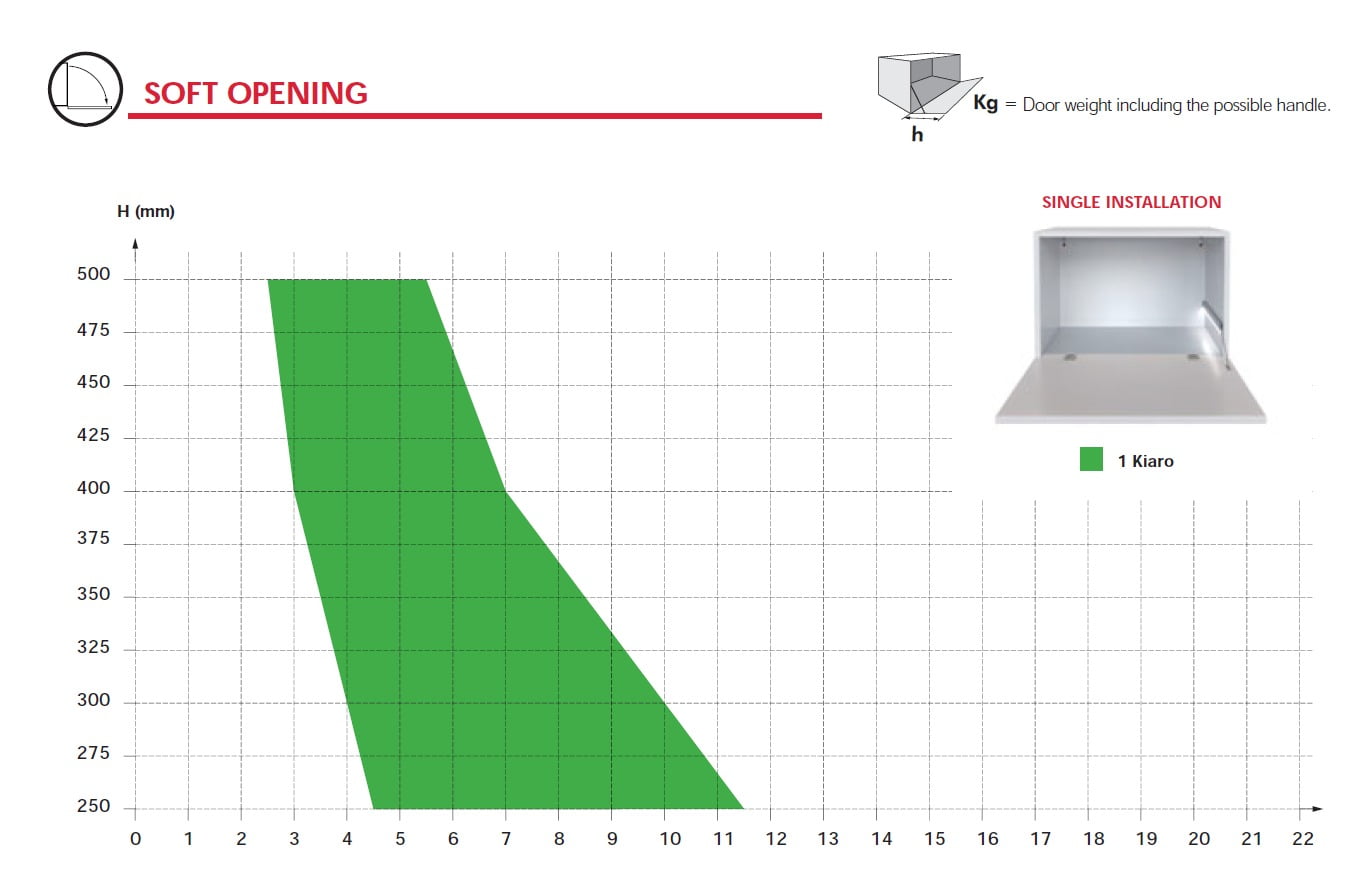

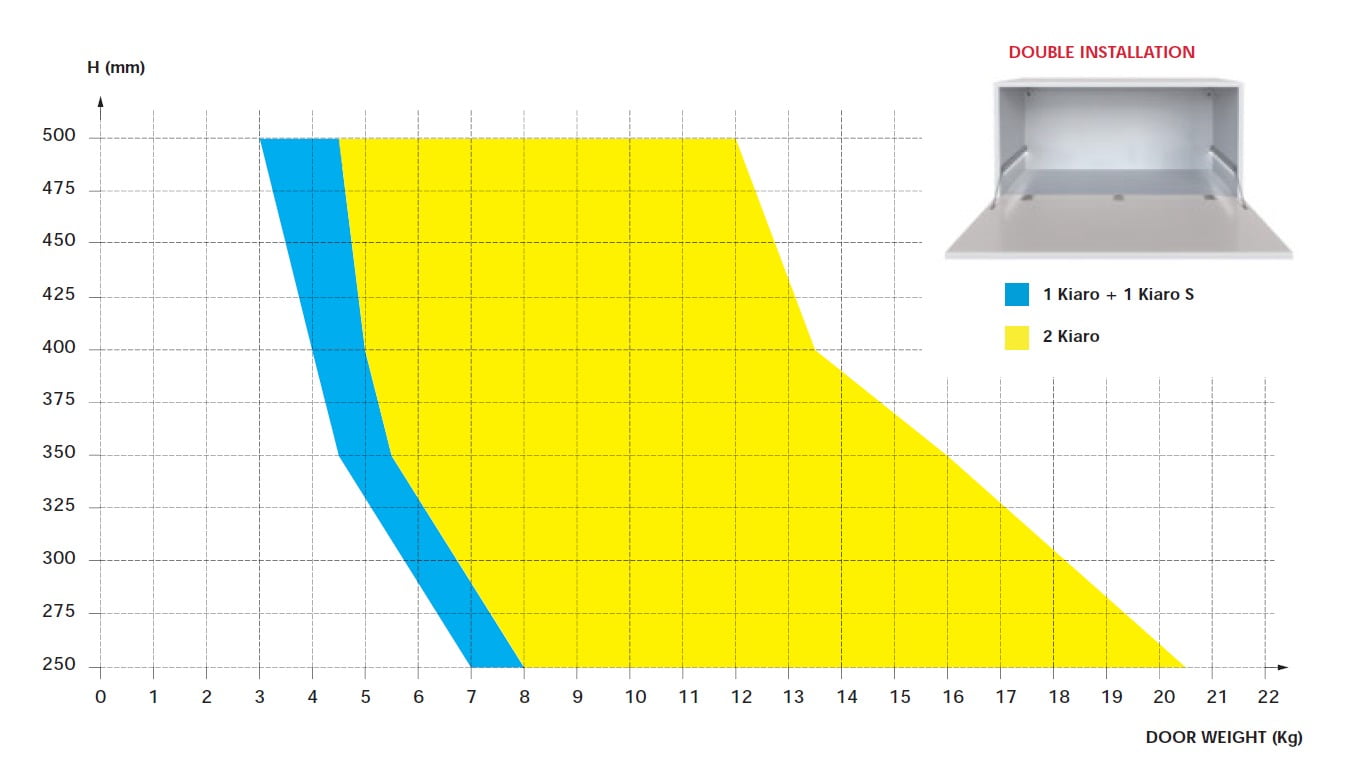

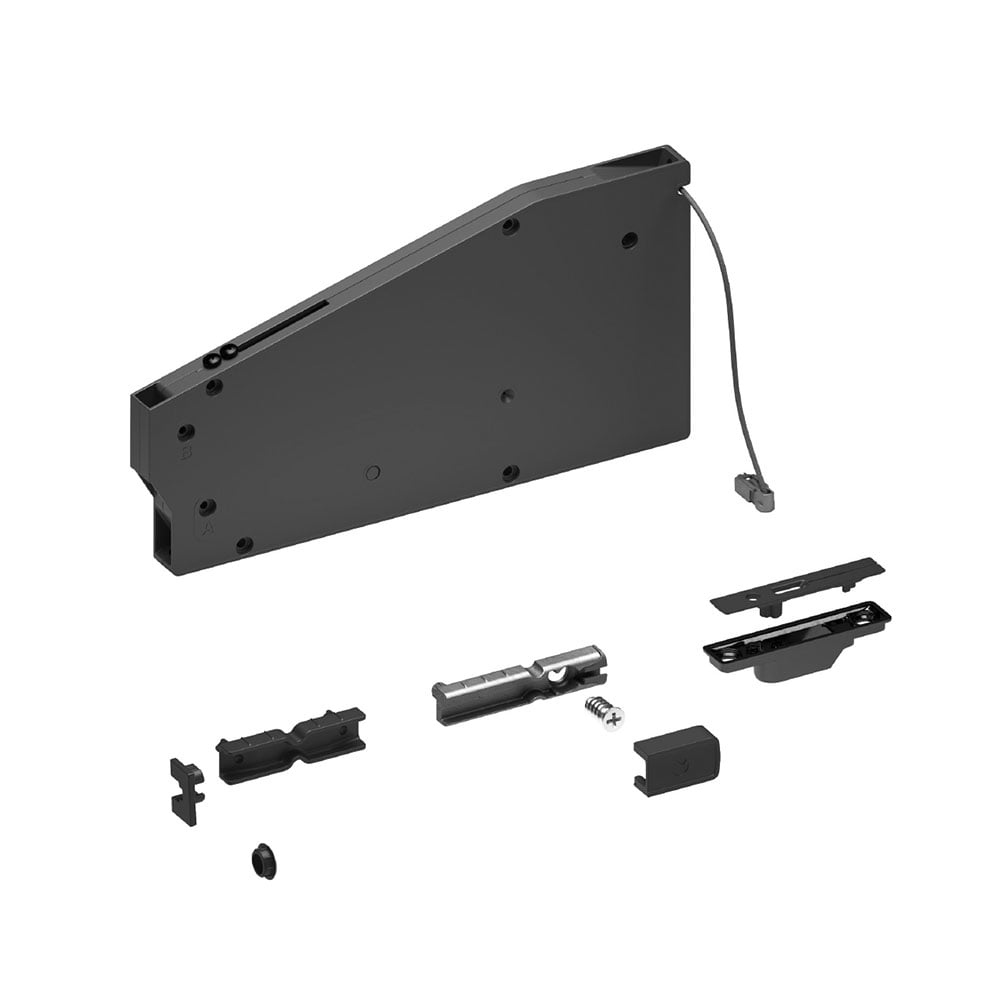

KIARO is an opening system for drop down doors with a concealed mechanism which allows to adjust the settings depending on door weight and dimension, thus enabling to manage a wide range of doors with only one reference. As it is a two-handed mechanism, it can be installed both on right and left side. A high resistance technical wire grants a significant loading capacity together with minimal shapes and elegant design. Available in two finishes which respond to the current overriding trends in the furniture appliances industry. It is conceived also to be installed with integrated led lighting.

• MINIMAL AND ELEGANT DESIGN

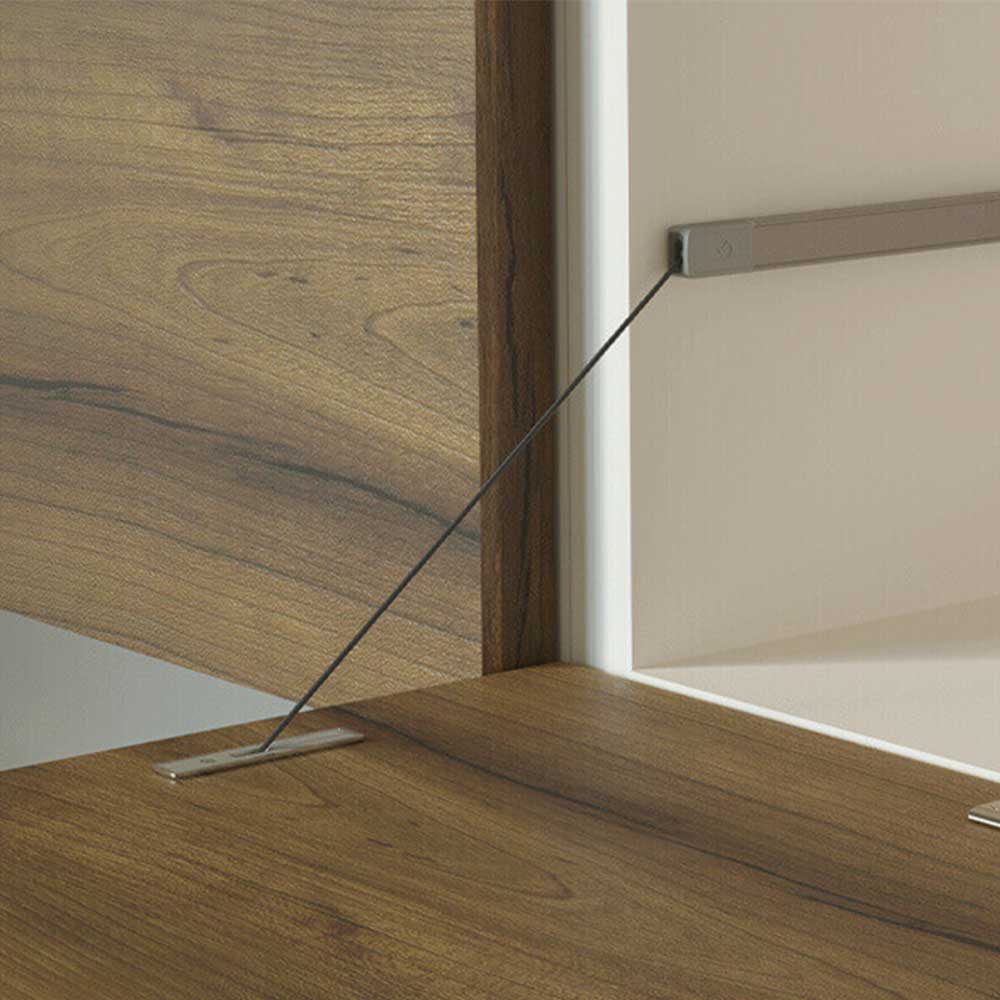

  Wire opening system with reduced size and elegant shapes, becoming an element of design for the whole cabinet
• OPTIMIZED STOCK MANAGEMENT
  One reference to cover a wide range of door weights and dimensions
• TWO-HANDED MECHANISM
  The same mechanism can be installed both on right and left side

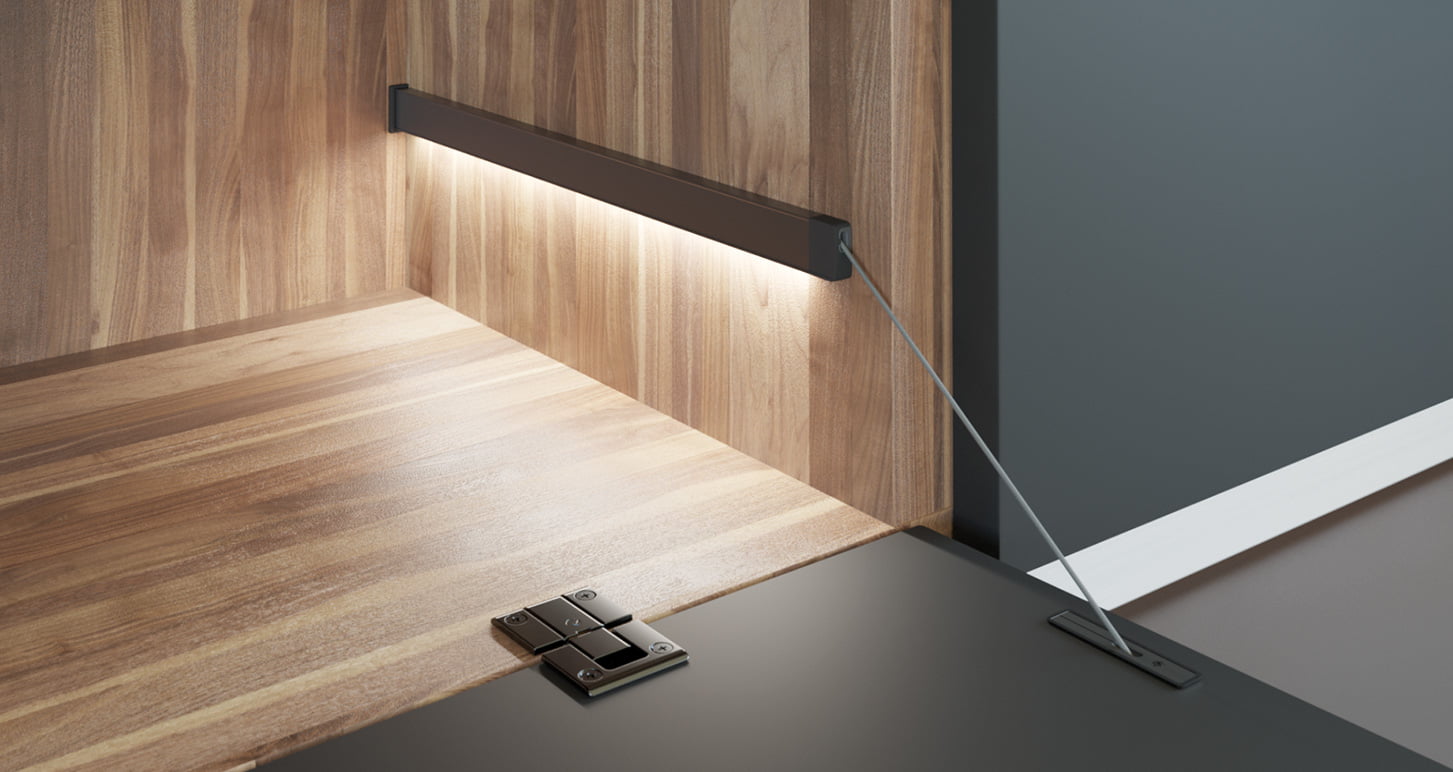

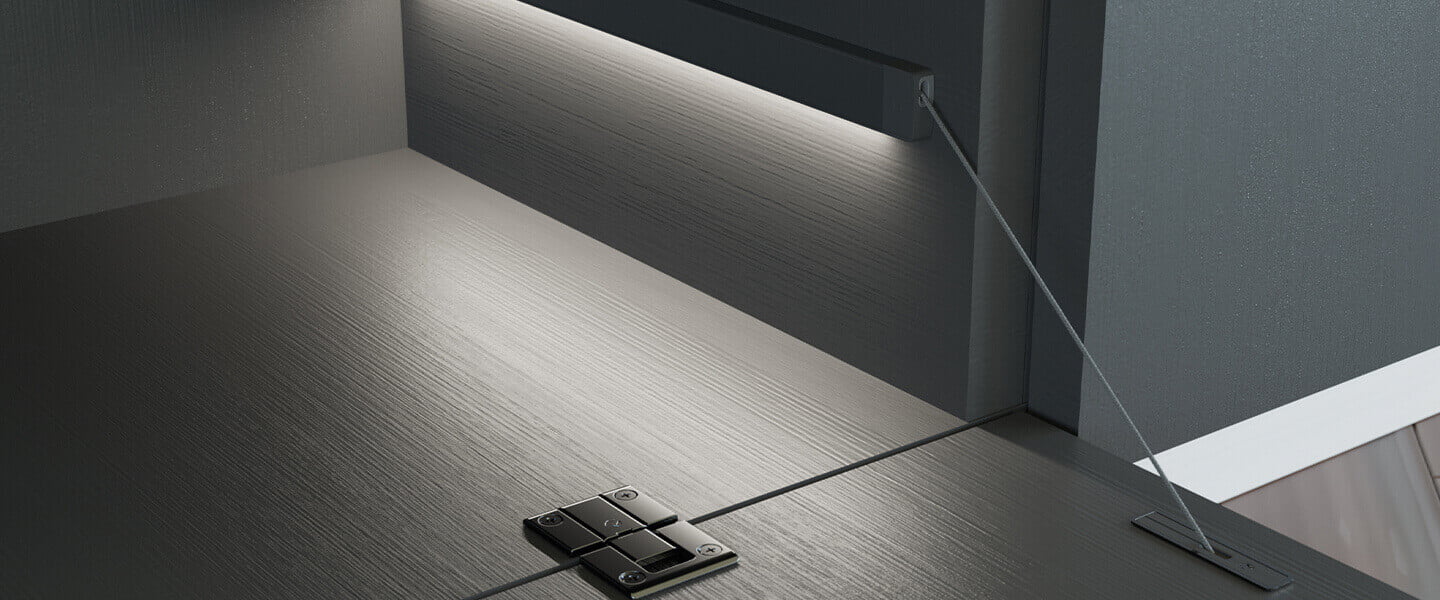

• INTEGRATED LED LIGHTING
  Available also with an integrated decorative led lighting which includes an innovative activation system
• HANDLELESS DOORS
  Just one K PUSH TECH enables the door opening, with any door weight and size
• WIDE ADJUSTMENT
  The mechanism allows a wide adjustment of the opening angle
• EASY INSTALLATION

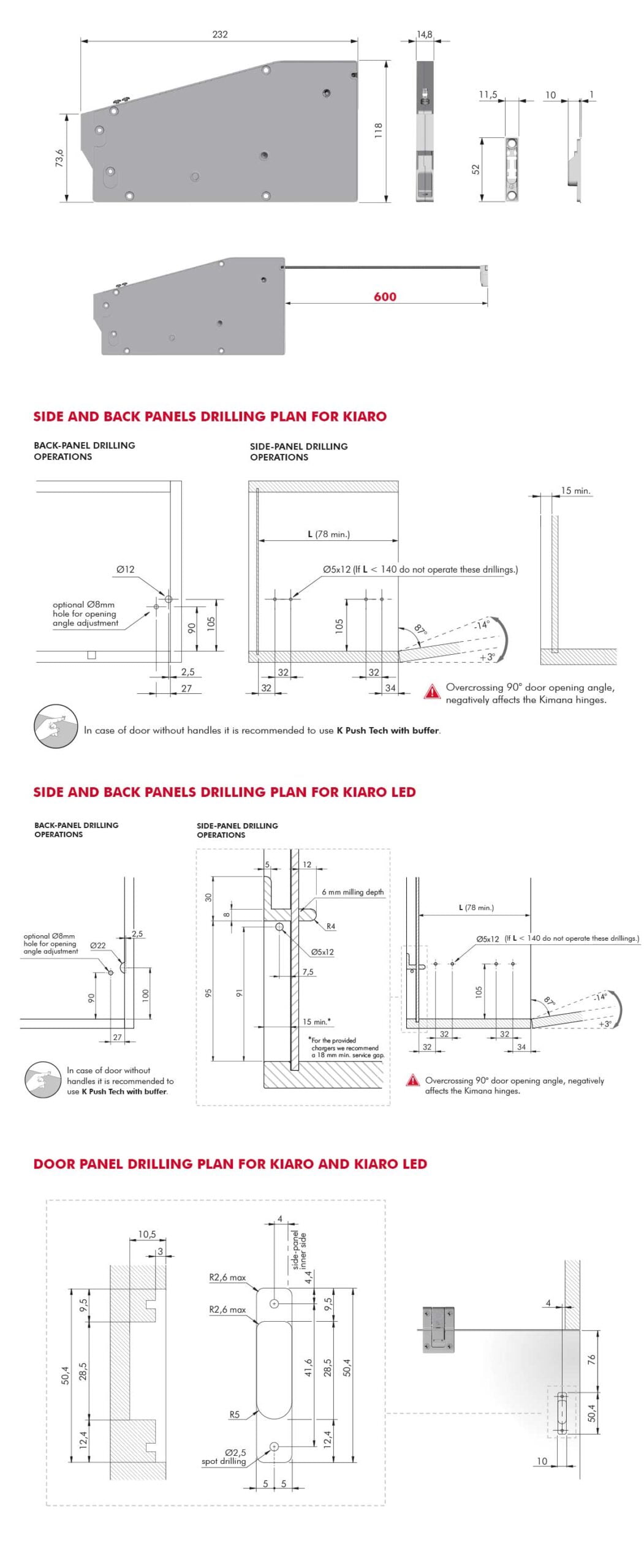

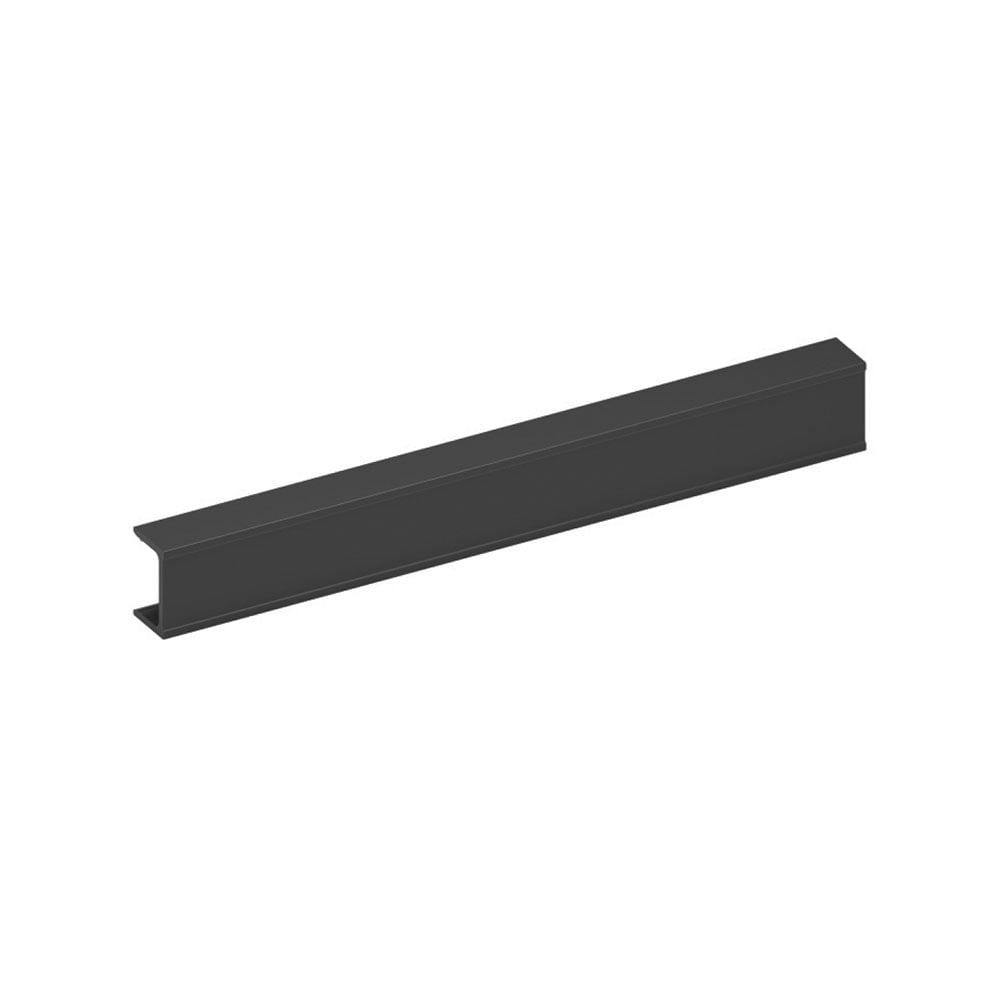

  The opening system can be installed with an easy mounting of the lateral profile on the cabinet side and an easy fixation of the wire onto the door

 Download mounting instructions.

Kiaro mounting tutorial

ARTICLE NUMBER

46006000YQ
