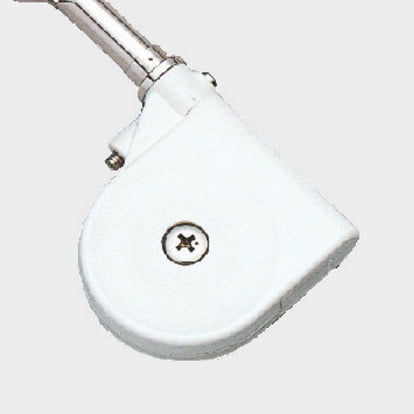

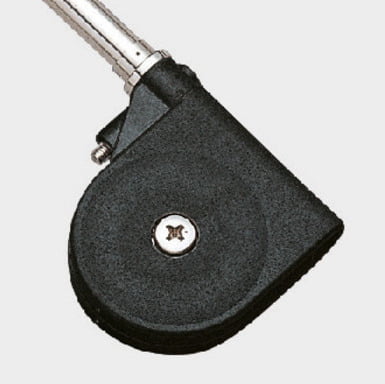

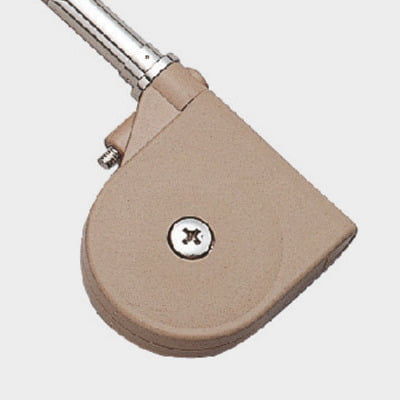

SOFT-DOWN STAY SDS-100, SDS-C100

PRODUCT INFORMATION

  • For downward-opening flap doors.
  • Built-in damper causes flap to open gently near fully open radius.
  • Non-handed: Can be installed either on left or right side.
  • SDS-C100 has a built-in catch to hold the door in a closed position.
  • SDS-100 does not have a catch and needs to have one installed separately.
  • Material : ABS/Steel

Sold Separately

Parts included:

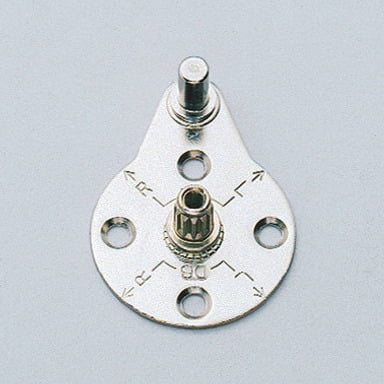

  • Mounting plate SDS-A
  • Countersunk head tapping screw 3.5×14

Torque

  • With 1 stay
    Torque = 3.43 – 4.9 N·m (35 – 50 kgf·cm)
  • With 2 stays, the torque will be doubled.

Download mounting instructions

Download catalog page.

ORDER INFORMATION

Clear

£20.76£22.33 (ex. VAT)

All Variations

SKUPriceTypeFinishQuantityAdd to Cart
SDS-100G£20.76 (ex. VAT)Without CatchGrey
SDS-100U£20.76 (ex. VAT)Without CatchSand
SDS-100W£20.76 (ex. VAT)Without CatchWhite
SDS-100-B£20.76 (ex. VAT)Without CatchBlack
SDS-C100-G£22.33 (ex. VAT)With CatchGrey
SDS-C100-U£22.33 (ex. VAT)With CatchSand
SDS-C100-W£22.33 (ex. VAT)With CatchWhite
SDS-C100-B£22.33 (ex. VAT)With CatchBlack
