Aileron stay for olympia ARN-2

PRODUCT INFORMATION

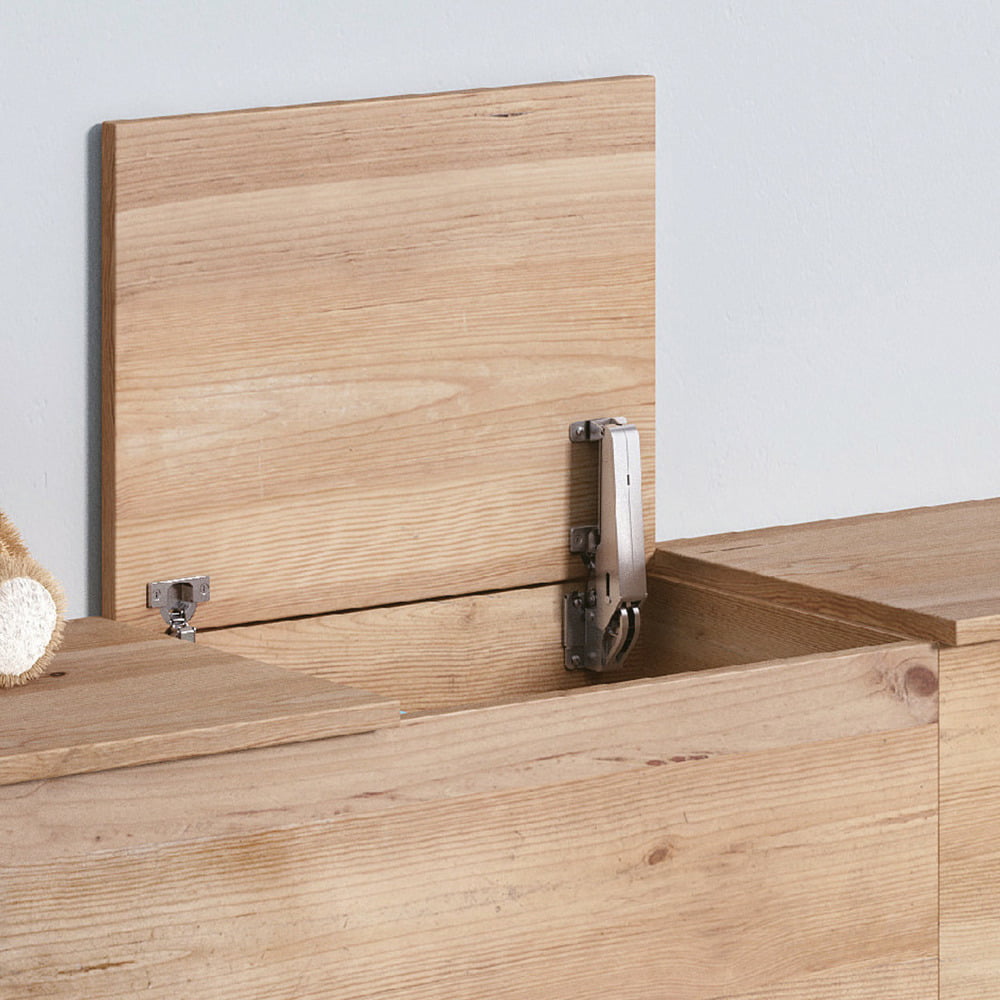

  • Smooth door movement. It is specially designed for use with the OLYMPIA concealed hinge.
  • The lift-assist function allows for light opening of doors.
  • The force of lift-assist is adjustable.
  • The soft-close function makes doors close gently (0°-30° degrees).
  • Integrated design combines a concealed hinge and lid stay.
  • The free-stop function enables doors to hold in position.
  • Closing speed of doors is adjustable.
  • Material: Steel (SPCC) / POM.
  • Finish: Nickel plating / Grey
  • Door Width,mm: 450~900.
  • Operating temperature: 0℃ – 40℃

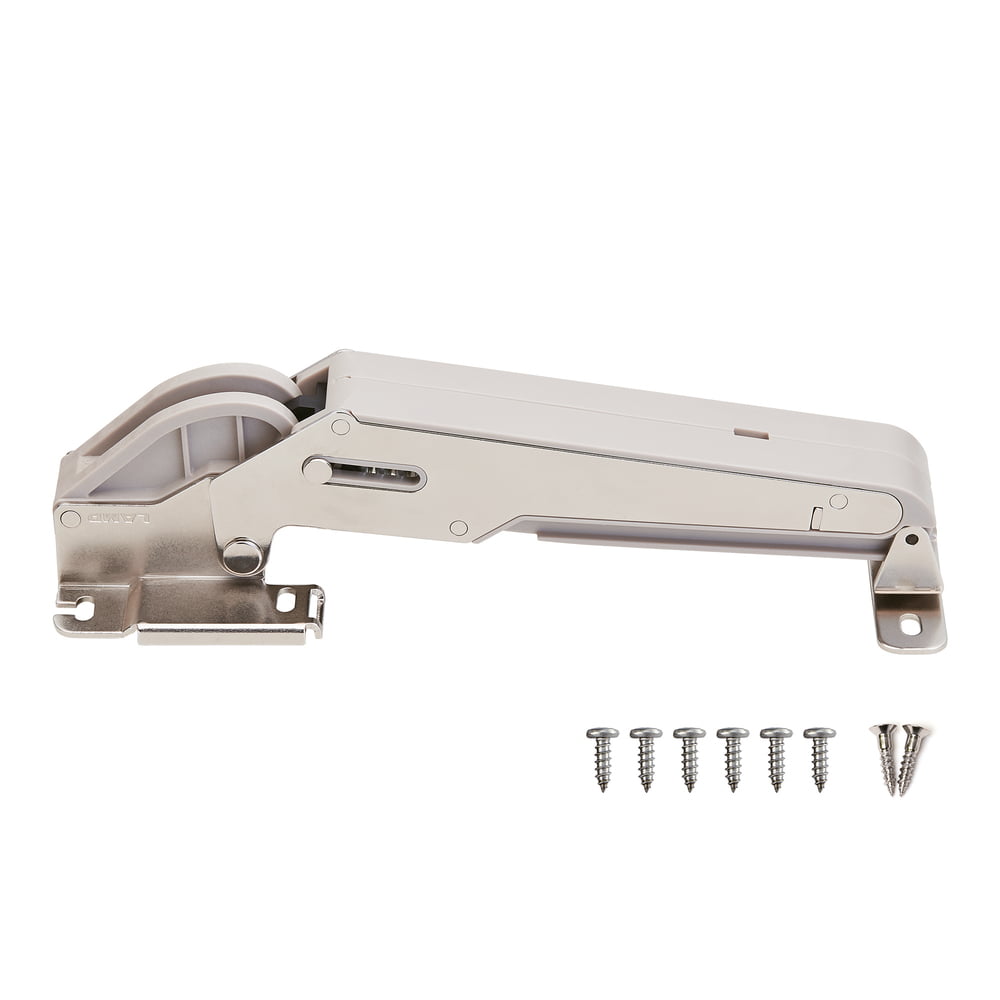

Set contains:

  • Aileron stay
  • Mounting plate for Aileron stay
  • Olympia hinge
  • Mounting plate for Olympia hinge
  • Screws

Download mounting instructions

Download catalog page.

Pricing:

Price for 1+ :£43.84  (ex. VAT)
Price for 10+ :£39.68  (ex. VAT)

To calculate the required product.

Door Height in meter/2 x kg x 9,8

Example: 0,48m/2 x 9kg x 9,8 = 21,18Nm.

ORDER INFORMATION

Clear

£43.48 (ex. VAT)

SKU: N/A Categories: , Tags: ,

Quantity based pricing table

All Variations

SKUPriceMax. Door Moment kgf・cm/pcQuantityAdd to Cart
SU.ARN-2-M-S£43.48 (ex. VAT)40.8 ~61.2
SU.ARN-2-H-S£43.48 (ex. VAT)61.2 ~81.6
