Mechanical lift up or drop down mechanism

PRODUCT INFORMATION

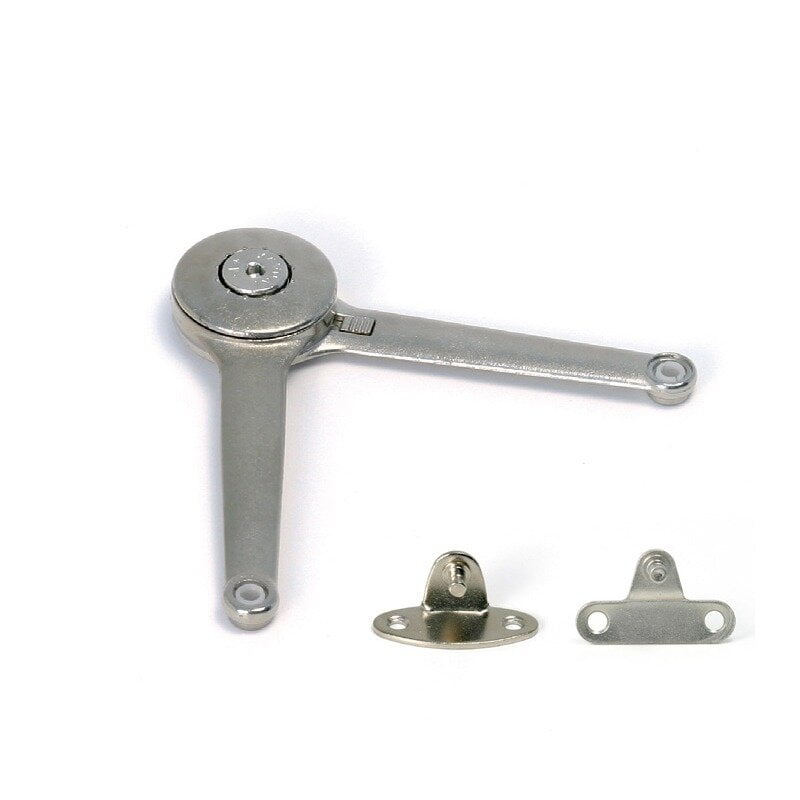

Lift up/drop down mechanism, nickel plated.

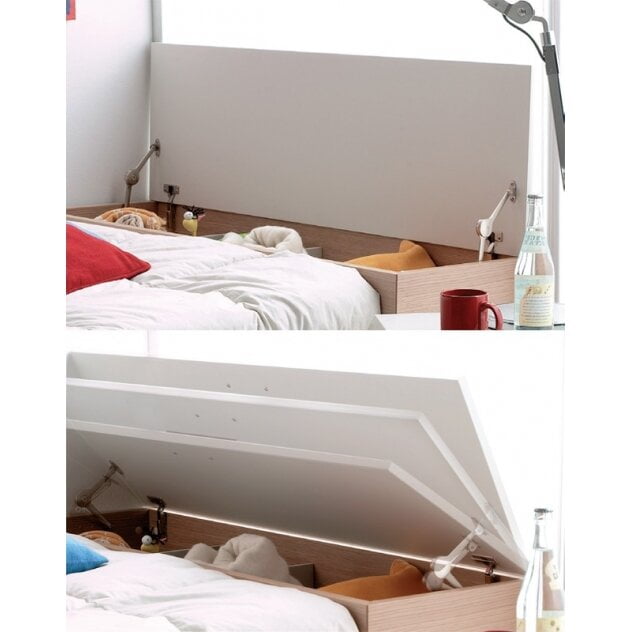

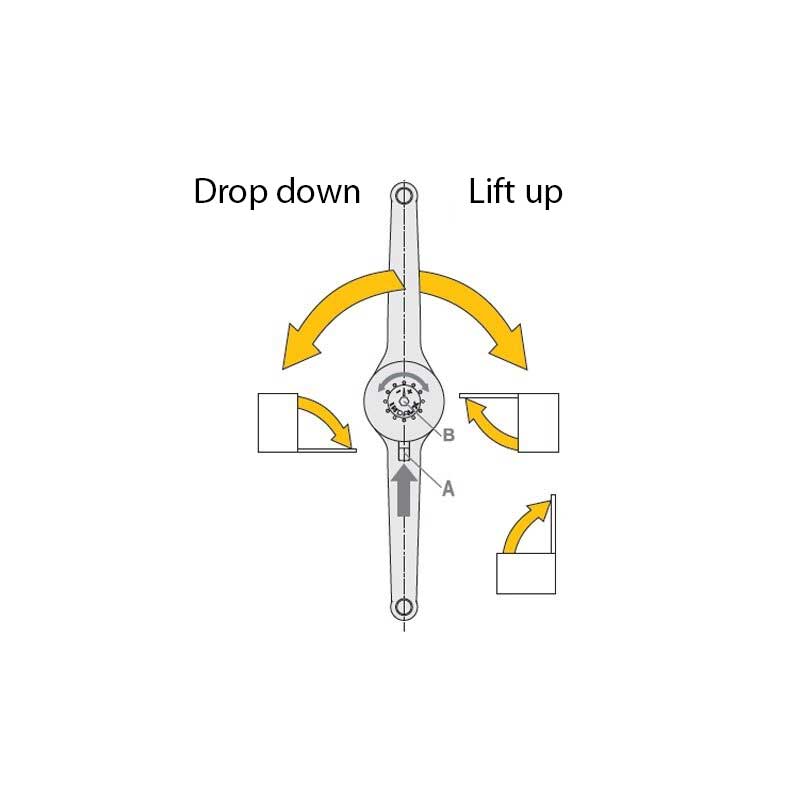

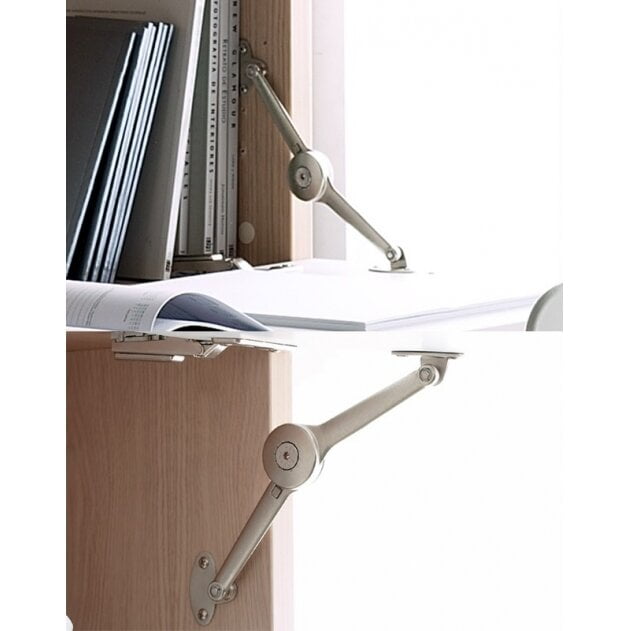

  • Simply pressing the actuator (a) permits the upper arm to be passed to one side or the other, changing  the braking action from braking when closing to  braking when opening. In this way the functioning for lift-up doors and lids is changed to functioning for drop-down doors.

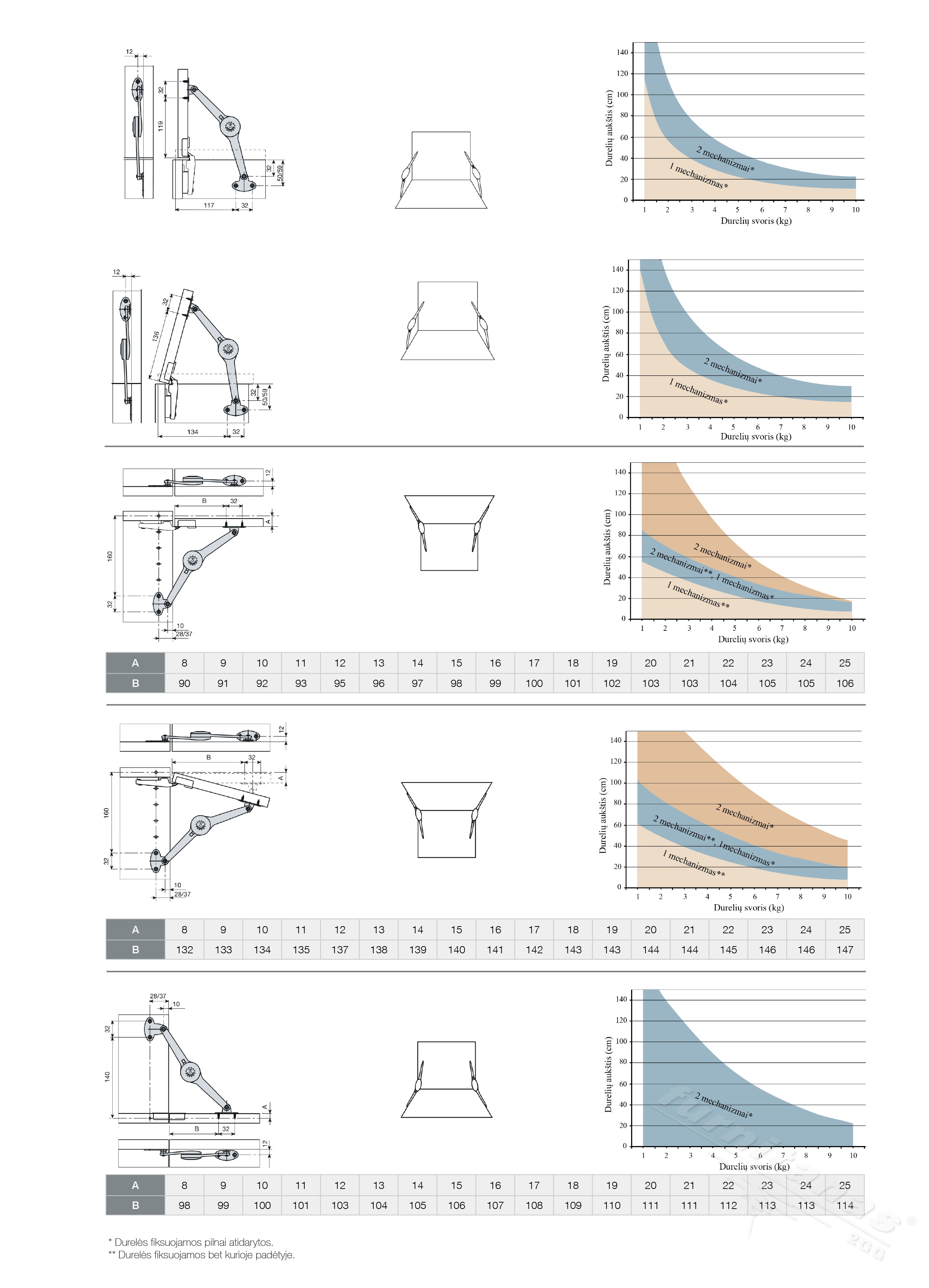

  • Depending on the force adjustment, a variety of positions can be achieved with the 4 mm allen screw (b), from simply braking the door when dropping to the intermediate positioning of the door.

ORDER INFORMATION

£7.20 (ex. VAT)
