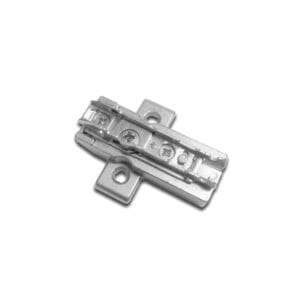

PRODUCT INFORMATION Steel, nickel-plated. Fixing with Ø 5 mm dowels or 11 mm dowels. Height adjustment (HV) via slot. Do not use a hammer for inserting the mounting plate! ORDER INFORMATION

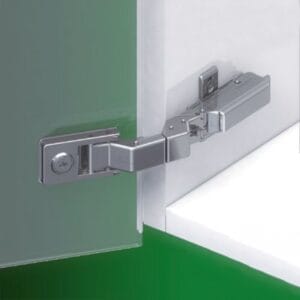

PRODUCT INFORMATION 125° opening angle, with integrated damper. Fastening through door-side gluing of a stainless steel adapter. Connection of the hinge to the adapter using a cam. Quick final assembly without glass drilling. 4-dimensional adjustment with appropriate mounting plate. High overlay up to 19 mm. ORDER INFORMATION
PRODUCT INFORMATION For 45° angled cabinets. 110° opening angle. Convenient depth adjustment via worm gear. 4-dimensional adjustment with appropriate mounting plate. Minimum reveals. ORDER INFORMATION
PRODUCT INFORMATION For 45° angled cabinets. 110° opening angle. Convenient depth adjustment via worm gear. 4-dimensional adjustment with appropriate mounting plate. Minimum reveals. ORDER INFORMATION
PRODUCT INFORMATION For 37° angled cabinets. 110° opening angle. Convenient depth adjustment via worm gear. 4-dimensional adjustment with appropriate mounting plate. Minimum reveals. ORDER INFORMATION
PRODUCT INFORMATION For 37° angled cabinets. 110° opening angle. Convenient depth adjustment via worm gear. 4-dimensional adjustment with appropriate mounting plate. Minimum reveals. ORDER INFORMATION
PRODUCT INFORMATION For 30° angled cabinets. 110° opening angle. Convenient depth adjustment via worm gear. 4-dimensional adjustment with appropriate mounting plate. Minimum reveal. ORDER INFORMATION
PRODUCT INFORMATION For 30° angled cabinets. 110° opening angle. Convenient depth adjustment via worm gear. 4-dimensional adjustment with appropriate mounting plate. Minimum reveal. ORDER INFORMATION
PRODUCT INFORMATION 110° opening angle. Optimum gap widths for aluminium frames with a frame thickness of up to 24 mm and a frame width of 22 mm. Hinge not visible from the outside. Convenient depth adjustment via worm gear. 4-dimensional adjustment with appropriate mounting plate. ORDER INFORMATION
PRODUCT INFORMATION 95° opening angle. Optimum reveals up to 36 mm door thickness. Convenient depth adjustment via worm gear. 4-dimensional adjustment with appropriate mounting plate. ORDER INFORMATION
PRODUCT INFORMATION 160° opening angle. Convenient depth adjustment via worm gear. For cabinets with inset drawers or pull-out shelves. Optimum reveals for door thicknesses up to 32 mm. 4-dimensional adjustment with appropriate mounting plate. Minimum reveals. Shallow cup depth. ORDER INFORMATION
