Triade Maxi

PRODUCT INFORMATION

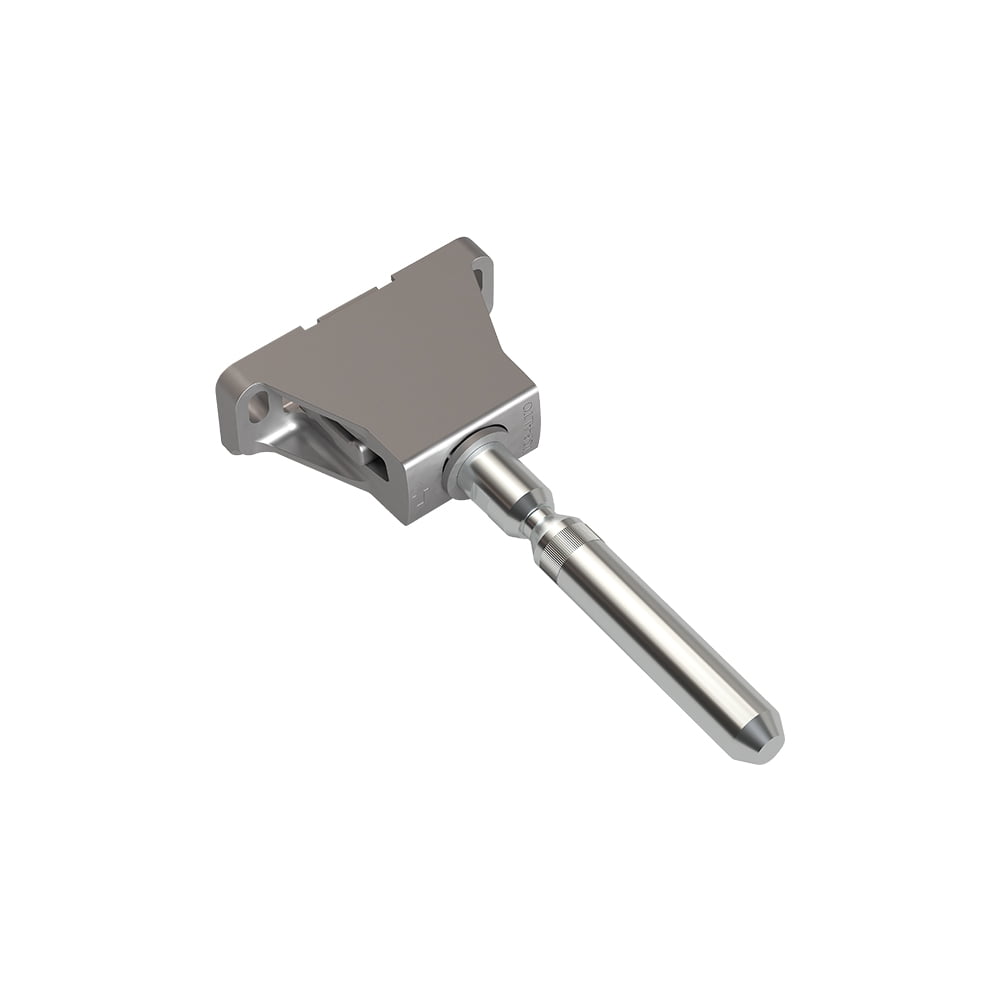

TRIADE MAXI is the concealed mounting bracket for shelves minimum 40mm thick. It has been conceived to simplify the shelf installation. It is provided with three indipendent adjustments:

  • 1) VERTICAL: before installing the shelf, the mounting brackets can be adjusted in height and (vertically) aligned through the slots.
  • 2) HORIZONTAL: while placing the shelf in position, the supporting pins can be slided horizontally.
  • 3) INCLINATION: when the shelf is partially inserted, the shelf angle can be adjusted front to back by turning the supporting pins with a 12 mm open-ended wrench.
  • The capacity loading is 20 Kg each (shelf weight included) for a shelf max 400 mm deep.
  • The minimum shelf depth required is 200 mm.

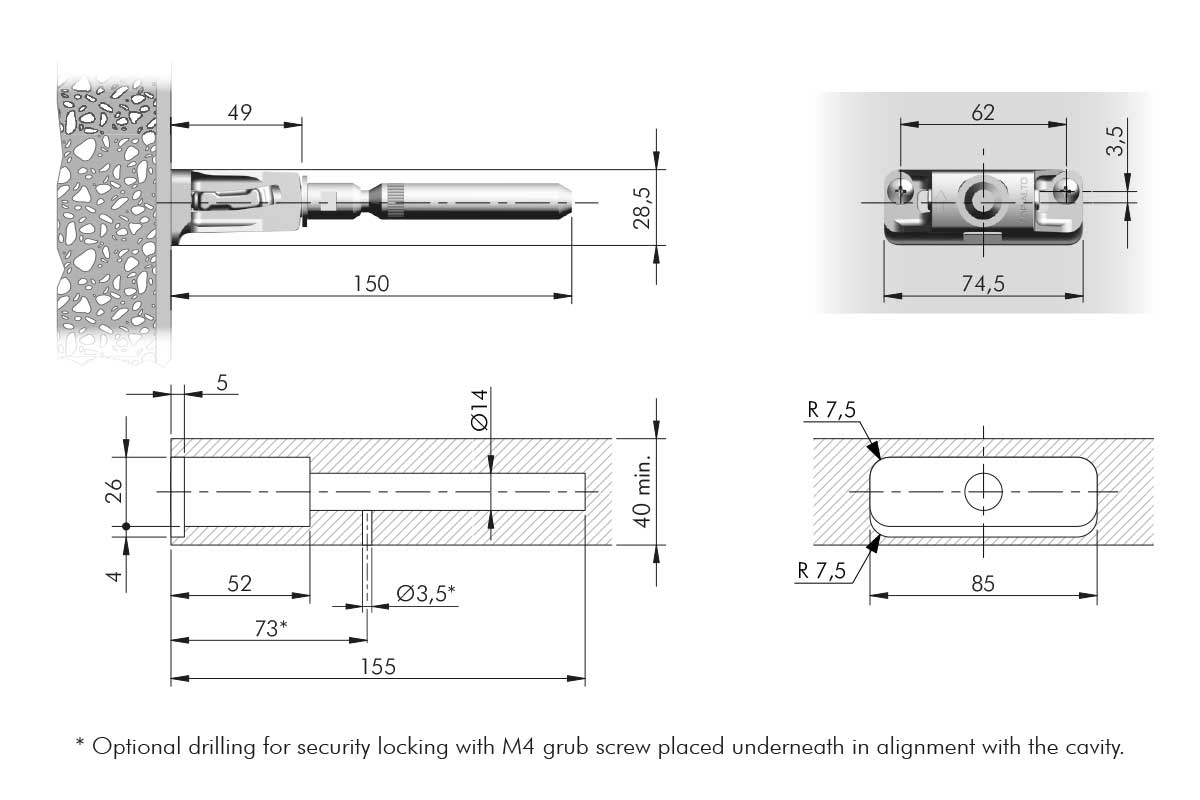

ADDITIONAL BENEFITS DUE TO SECURITY LOCKING FEATURE

  • Simple additional drilling.
  • Small diameter hole in the shelf (only Ø3,5 mm).
  • Multiple assembly and disassembly of the shelf.
  • Suitable for all thicknesses.
  • Tested on plywood, mdf and chipboard.

This product requires :

Download mounting instructions.

ORDER INFORMATION

£7.68 (ex. VAT) £9.22 (inc. VAT)

SKU: 1621601000 Category: Tags: ,
