TOWER BUNK BED

PRODUCT INFORMATION

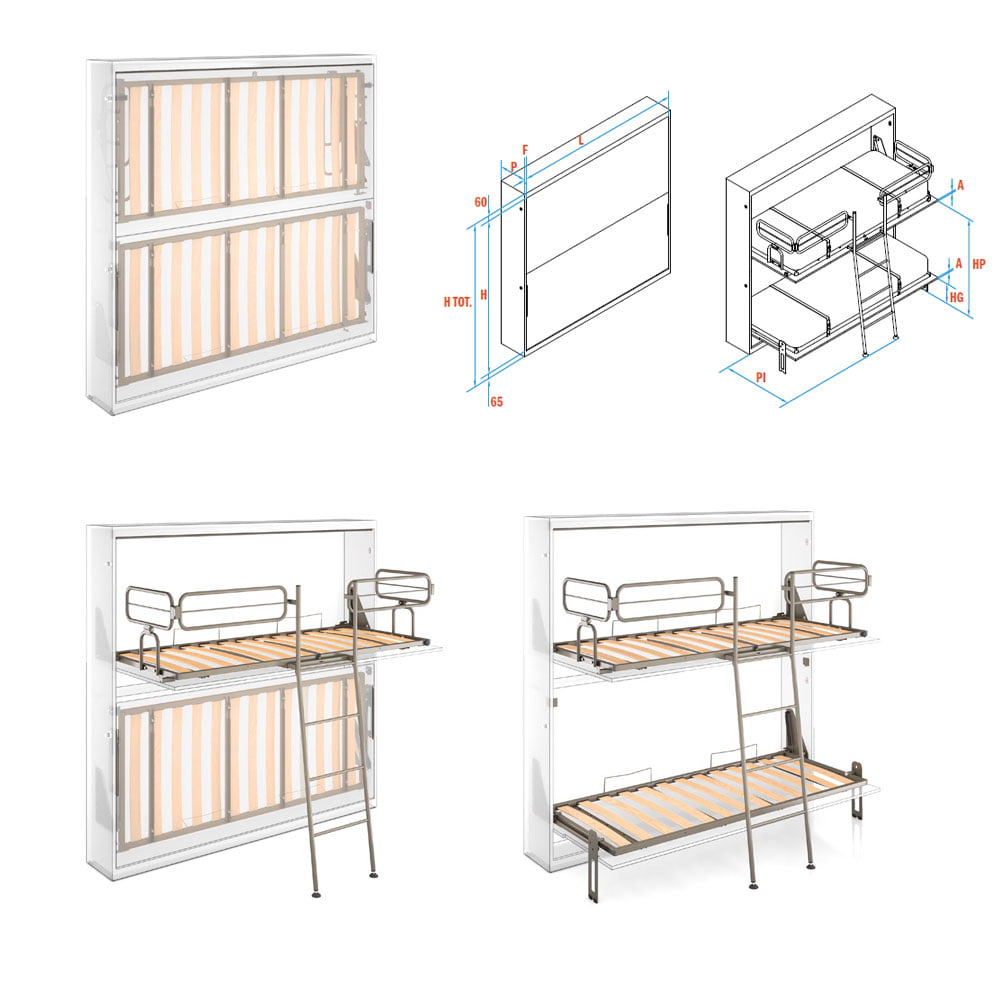

SINGLE BUNK BED SYSTEM FOR USE IN WARDROBES AT LEAST 330 mm DEEP. THE DOOR IS PLAIN WITH RECESSES CUT OUT OF THE BOTTOM BUNK TO ACCOMMODATE THE FOLDING LEG FEATURING SYNCHRONIZED MOVEMENT AND SHOCKPROOF PVC FERRULE. THE TOP BED BASE IS SELF-SUPPORTING AND NOT LINKED TO THE BOTTOM ONE. THE OPENING AND CLOSING MECHANISM IS CONTROLLED BY SUITABLE GAS SPRINGS. GUARD RAILS ARE
SECURED TO THE SELF-SUPPORTING LADDER FOR TOTALLY SAFE ACCESS.

• Bed base and matters: 900×2000
• Max. mattress H: 160.
• Mattress, Kg: 15-20 kg.
• Total H of structure: 2190.
• Width of structure: 2090.
• Height of structure: 2065.
• Min. Depth of structure: 330.
• Min. thickness of side: 22.
• Max. thickness of door: 18.
• Door weight approximate: 28 kg (±4%).

Set is composed of:

• no.01 UPPER SLATTED BED BASE TOWER, (tube 50×25 mms) side opening, with opening mechanism kit, belts to hold the mattress in place, crossbar as panel stopper;
• no.01 LOWER SLATTED BED BASE PLAY, side opening, with opening mechanism kit, belts to hold the mattress in place, retaining brackets and synchronized opening legs; brackets as panel stoppers;
• no. 01 KIT GUARD BARRIER and inclined ladder

NOTES
