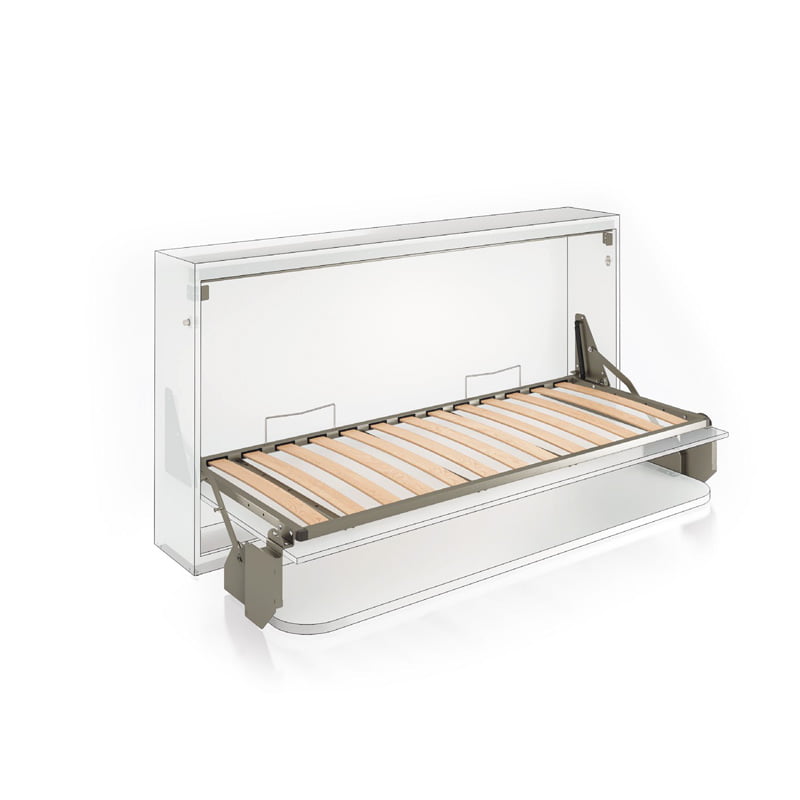

PLAY DESK

PRODUCT INFORMATION

SYSTEM FOR SINGLE BEDS USED IN CABINETS WITH MINIMUM DEPTH OF 330 MM. THE DOOR IS STRAIGHT AND WORKED FOR THE DESKTOP APPLICATION. WHICH MOVES PARALLELELY TO THE FLOOR WITH A CARTERIZED SYSTEM TO AVOID ANY ACCIDENTAL SHEARING INCREASING THE SAFETY GRADE. THE HANDLING MECHANISM IS CONTROLLED BY ADEQUATE GAS SPRINGS. SECURITY LOCK IS MANDATORY.

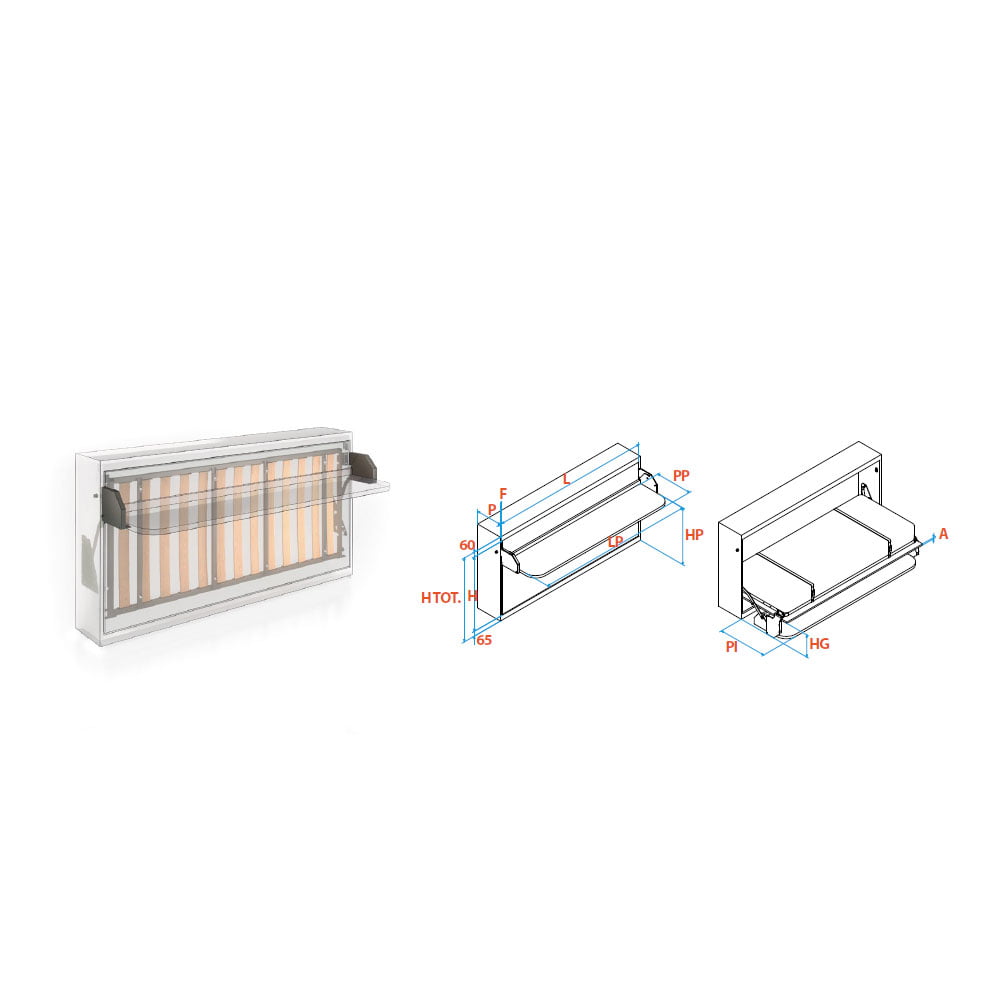

  • Bed base and matters: 1200×2000
  • Max. mattress H: 160.
  • Mattress Kg: 20-25kg
  • Total H of structure: 1460.
  • Width of structure: 2090.
  • Height of structure: 1335.
  • Min. Depth of structure: 330.
  • Min. thickness of side: 22.
  • Max. thickness of door: 18.
  • Door weight approximate: 36 kg (±4%)
  • Desk weight approximate: 20,5 kg (±4%)

Set is composed of:

  • no. 01 SLATTED BED PLAY DESK (tube 50x25mm) side opening; belts to hold the mattress in place; with door retaining brackets as panel stoppers;
  • no. 01 MECHANISM KIT with desk support, transmission system for desk opening as bed legs; legs with cover plates.

NOTES

Download catalog page

ORDER INFORMATION

Clear

£46.96£603.21 (ex. VAT)

SKU: N/A Category: Tag:

All Variations

SKUPriceProductQuantityAdd to Cart
Play_desk_2000£603.21 (ex. VAT)Play Desk
Play_desk.ADSS02£46.96 (ex. VAT)Security Lock
