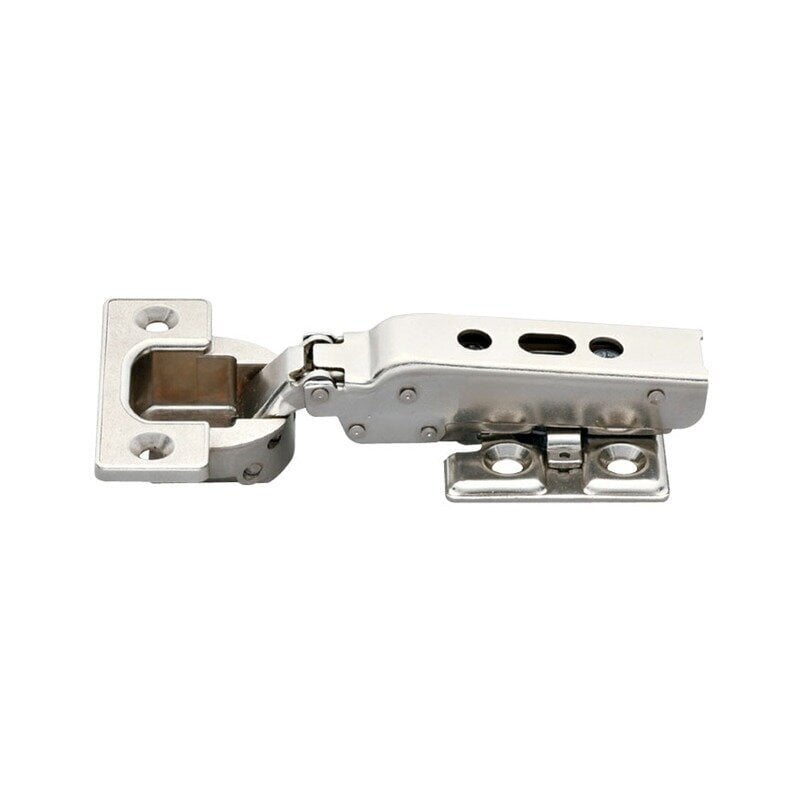

Sugastune heavy duty hinge J95

PRODUCT INFORMATION

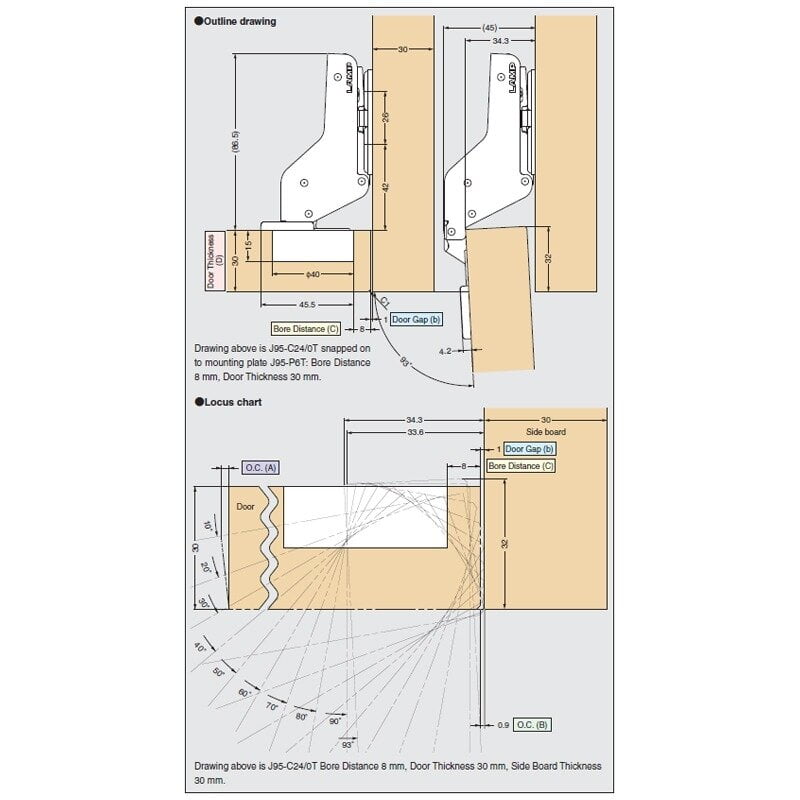

• Overlay distance from 20 ~ 25mm.
• Load capacity: 25 kg / 2pcs, 40kg / 3pcs.
• Maximum door width: 800mm / 2pcs, 900mm / 3 pcs
• Clip on type for easy installation.
• 3-way adjustment with door installed (depth + 1.5/- 2.5 mm, vertical ± 3 mm, overlay [horizontal] + 0/- 4 mm).
• Opening angle: 95°

ORDER INFORMATION
