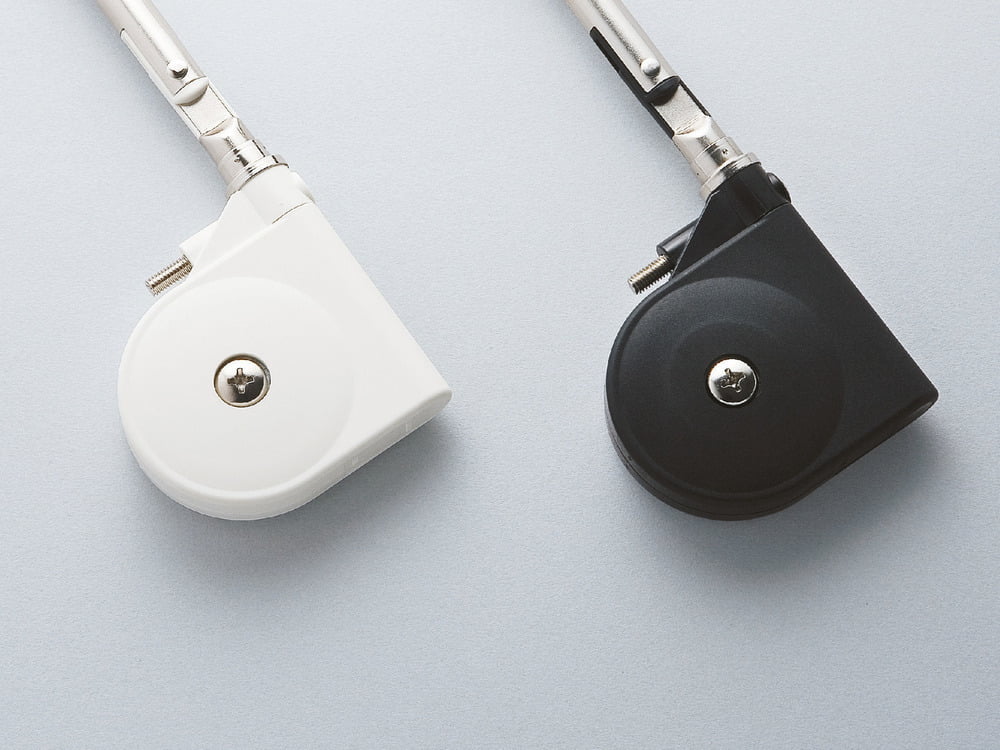

SHORT ARM SOFT-DOWN STAY SDS-100-TV, SDS-C100-TV

PRODUCT INFORMATION

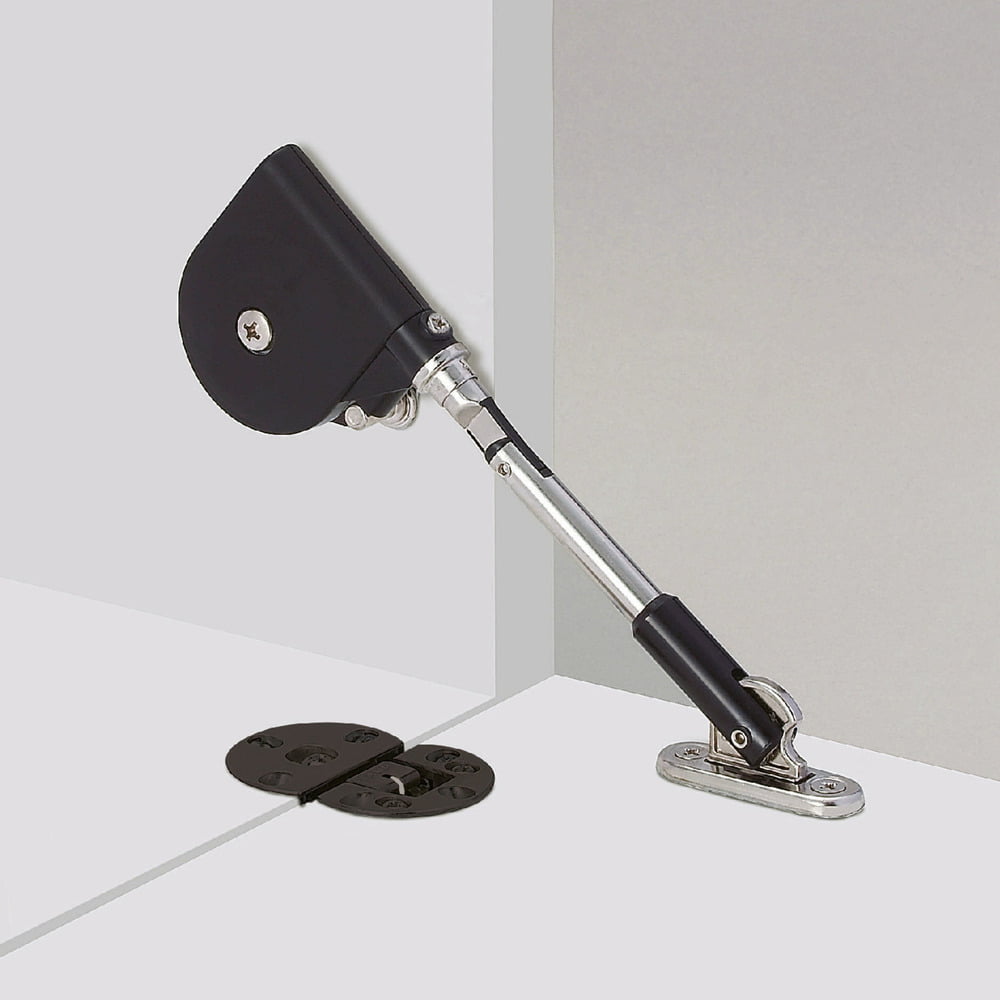

  • For downward-opening flap doors. Works well with short flap doors.
  • Built-in damper causes flap to open gently near fully open radius.
  • Non-handed.
  • SDS-C100-TV has a built-in catch to hold the door in a closed position.
  • SDS-100-TV does not have a catch and needs to have one installed separately.
  • Material : ABS/Steel

Sold Separately

Parts included:

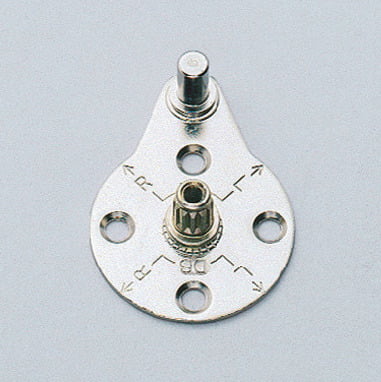

  • Mounting plate SDS-A
  • Countersunk head tapping screw 3.5 × 14

Torque

  • With 1 stay
    Torque = 0.49 – 1.18 N·m (5 – 12 kgf·cm) : TV type
    1.62 – 3.68 N·m (16.5 – 37.6 kgf·cm) : TVZ type

Download catalog page.

ORDER INFORMATION

Clear

£17.18£18.25 (ex. VAT)

All Variations

SKUPriceTypeTorque Moment/pieceFinishQuantityAdd to Cart
SDS-100W-TV£17.18 (ex. VAT)Without Catch0.49 - 1.18 N·mWhite
SDS-100B-TV£17.18 (ex. VAT)Without Catch0.49 - 1.18 N·mBlack
SDS-100W-TVZ£17.18 (ex. VAT)Without Catch1.62 - 3.68 N·mWhite
SDS-100B-TVZ£17.18 (ex. VAT)Without Catch1.62 - 3.68 N·mBlack
SDS-C100W-TV£18.25 (ex. VAT)With Catch0.49 - 1.18 N·mWhite
SDS-C100B-TV£18.25 (ex. VAT)With Catch0.49 - 1.18 N·mBlack
SDS-C100W-TVZ£18.25 (ex. VAT)With Catch1.62 - 3.68 N·mWhite
SDS-C100B-TVZ£18.25 (ex. VAT)With Catch1.62 - 3.68 N·mBlack
