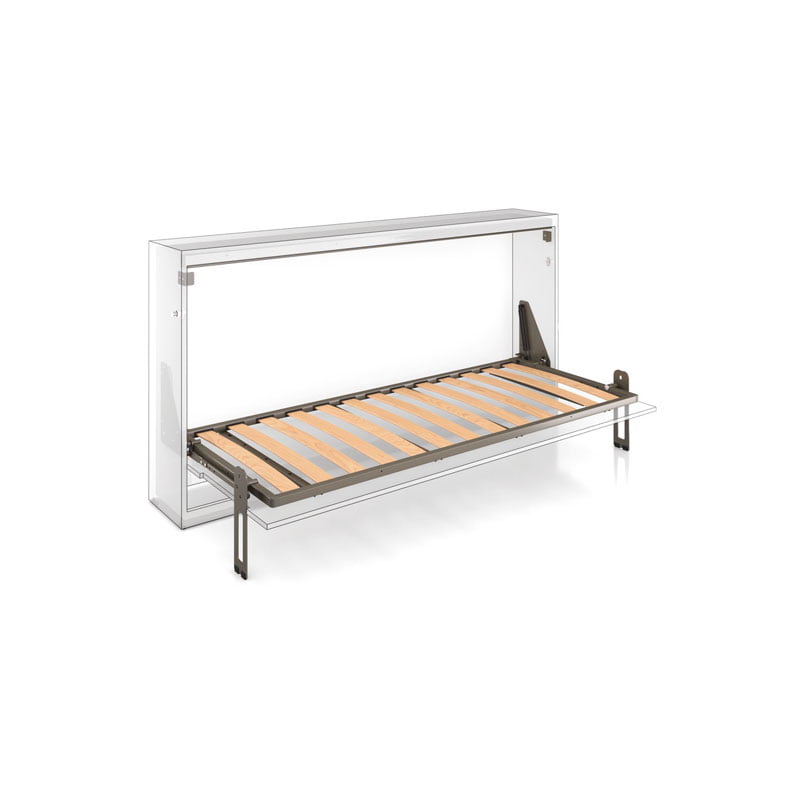

PLAY WALL BED

PRODUCT INFORMATION

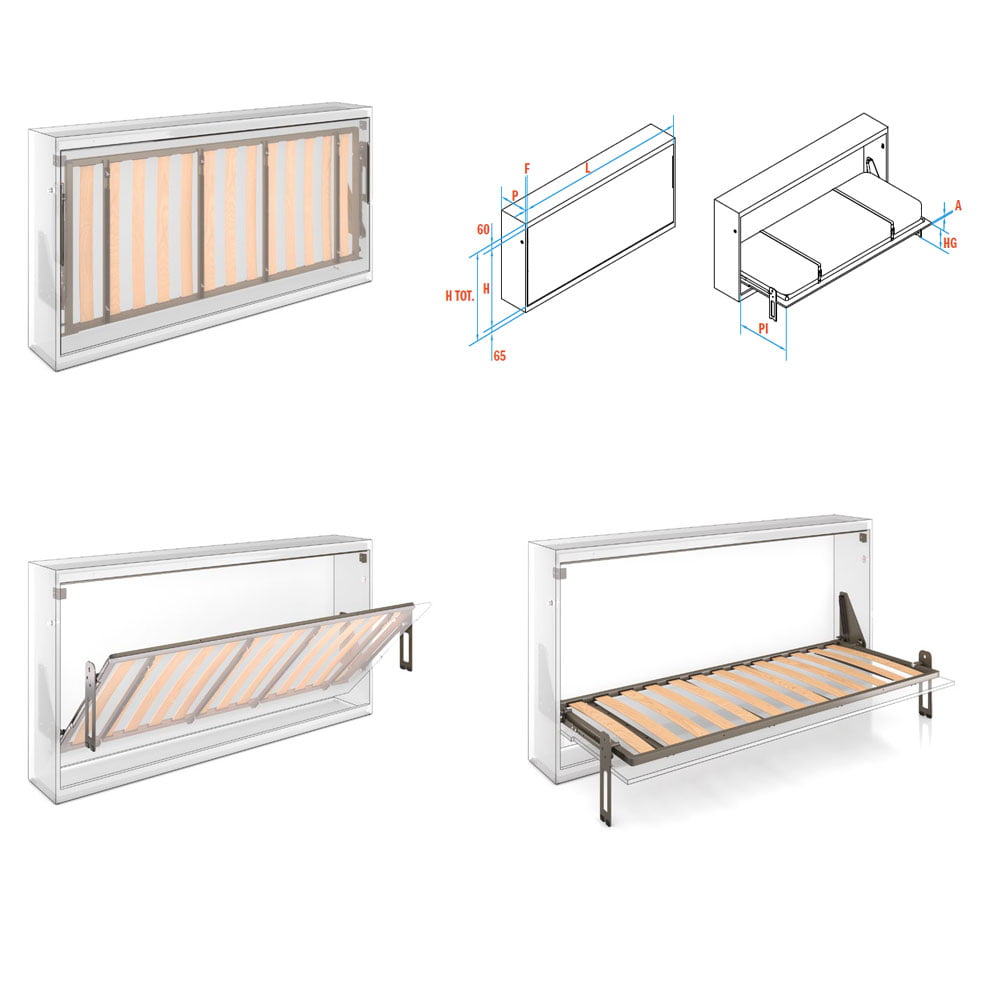

SINGLE BED SYSTEM FOR USE IN WARDROBES AT LEAST 330 mm DEEP. THE DOOR IS PLAIN WITH RECESSES CUT OUT TO ACCOMMODATE THE FOLDING LEG FEATURING SYNCHRONIZED MOVEMENT AND SHOCKPROOF PVC FERRULE. THE OPENING AND CLOSING MECHANISM IS CONTROLLED BY SUITABLE GAS SPRINGS.

• Bed base and matters: 1400×2000
• Max. mattress H: 160.
• Mattress Kg: 25-30kg
• Total H of structure: 1660.
• Width of structure: 2090.
• Height of structure: 1535.
• Min. Depth of structure: 330.
• Min. thickness of side: 22.
• Max. thickness of door: 18.
• Door weight approximate: 42 kg (±4%)

Set is composed of:

• no. 01 SLATTED BED PLAY (tube 50×25 mm) side opening, with synchronized opening legs, belts to hold the mattress in place; with door retaining brackets as panel stoppers;
• no. 01 MECHANISM KIT with gas springs
