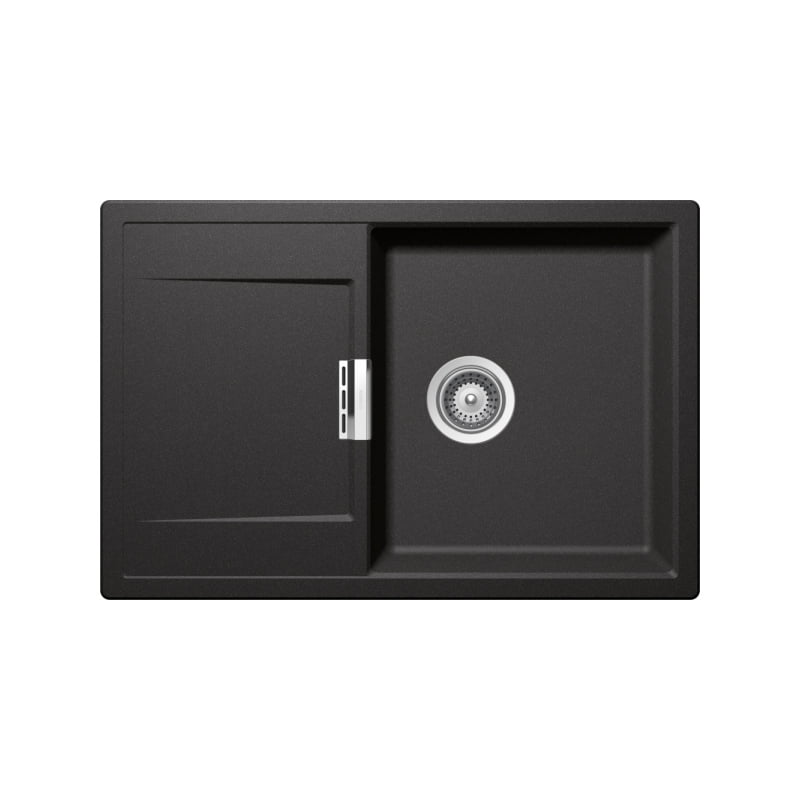

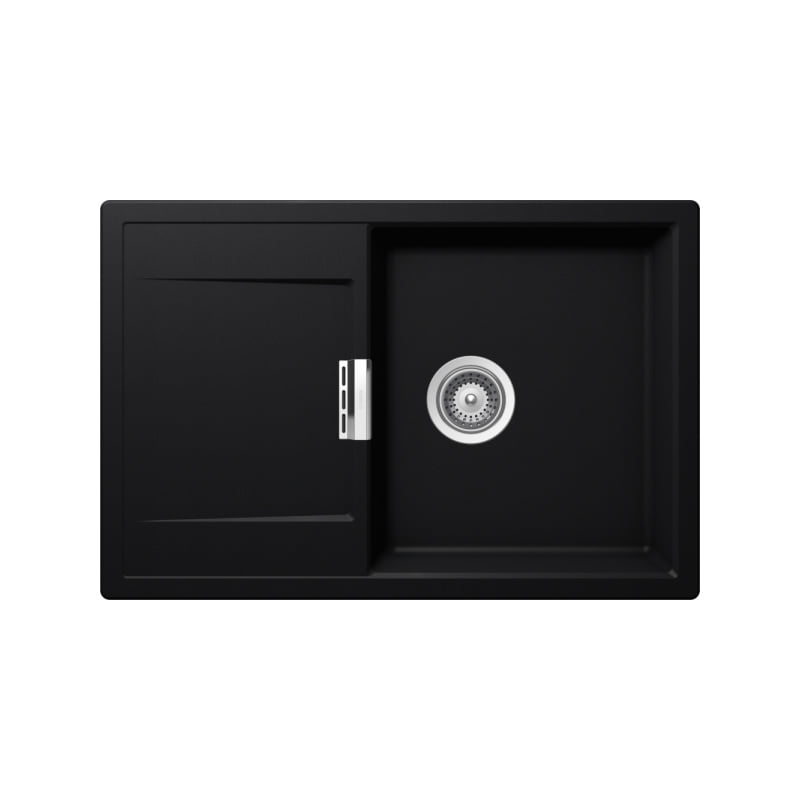

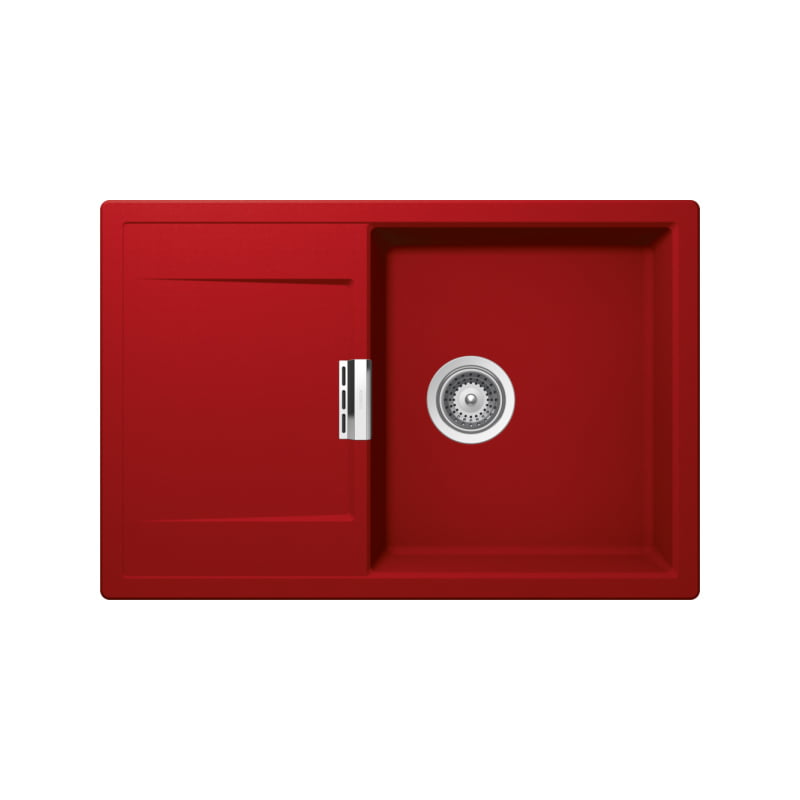

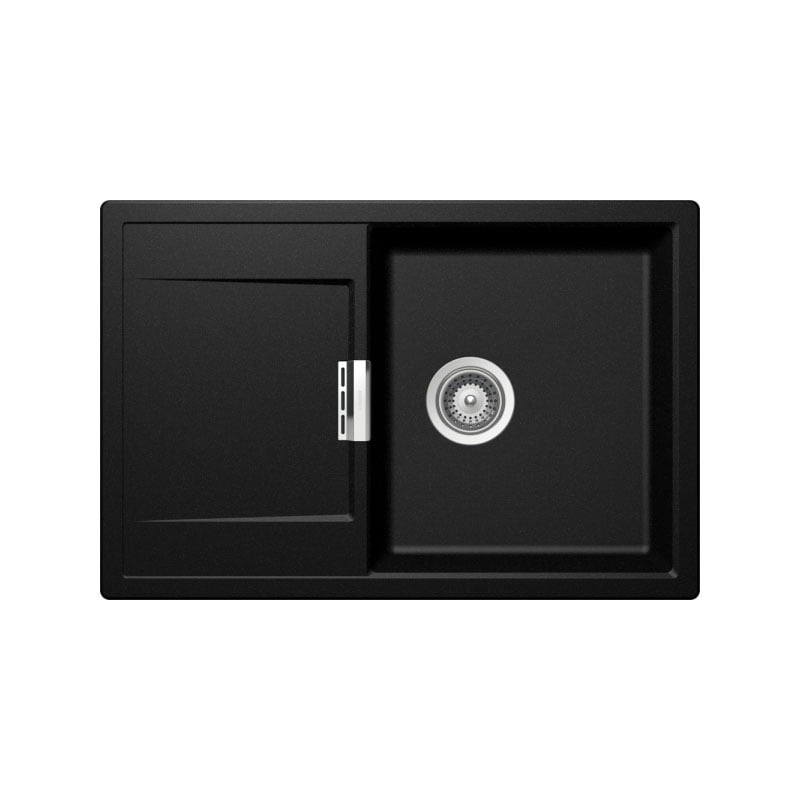

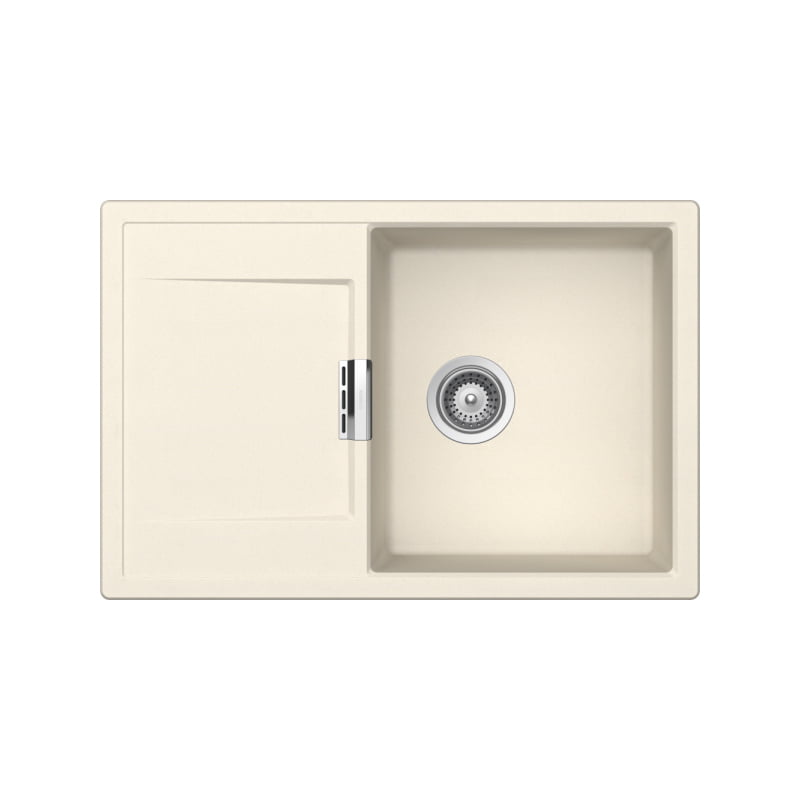

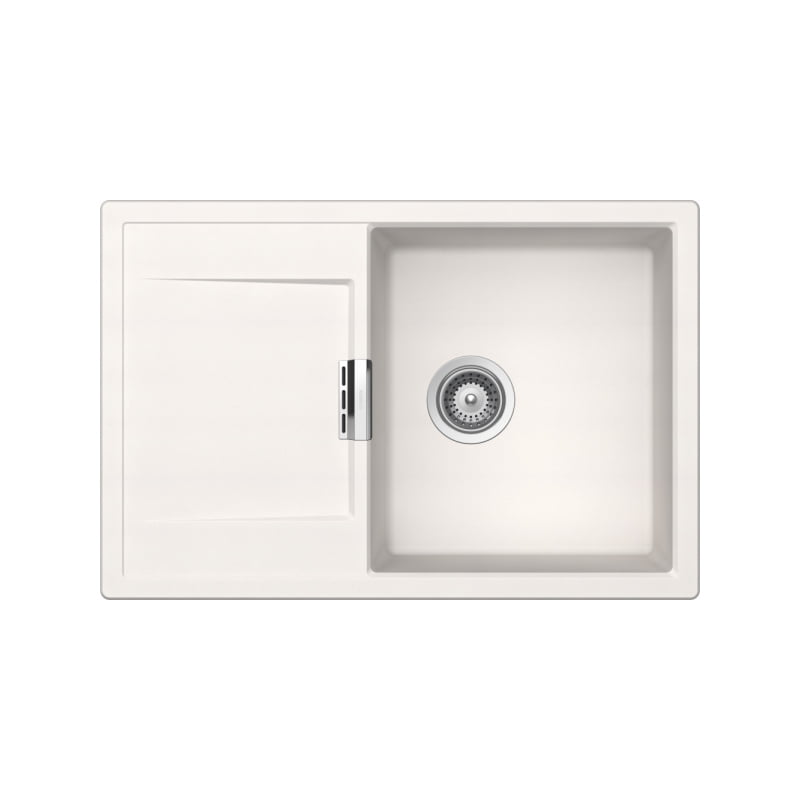

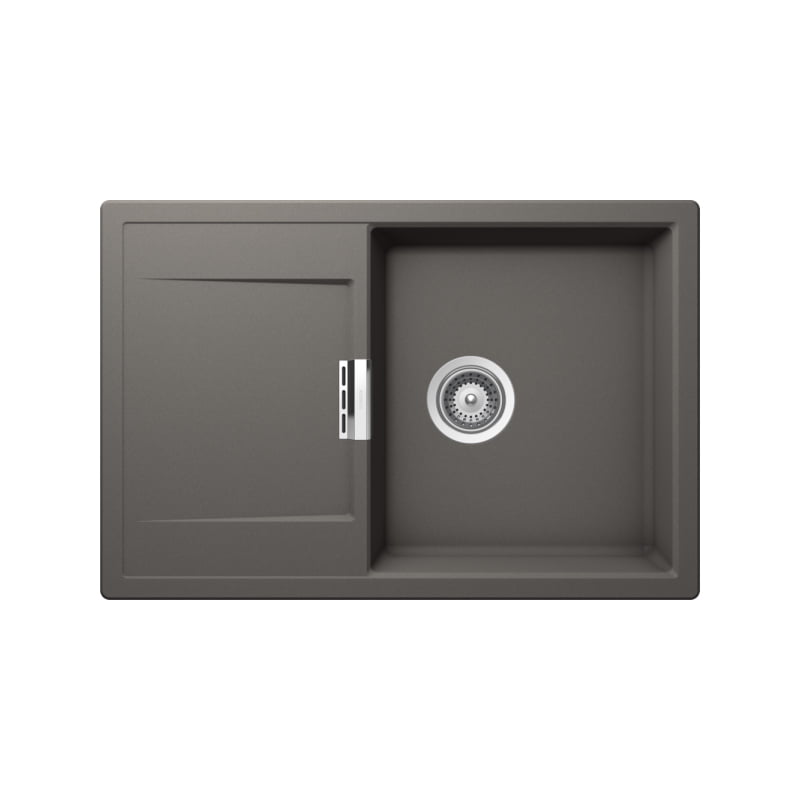

MONO D-100


MONO D-100

  • On standby: Extra drain when washing up.
  • Space saving: Compact size.
  • Distinguished: Award-winning design
  • Type of installation: Top-mount or Under-mount.

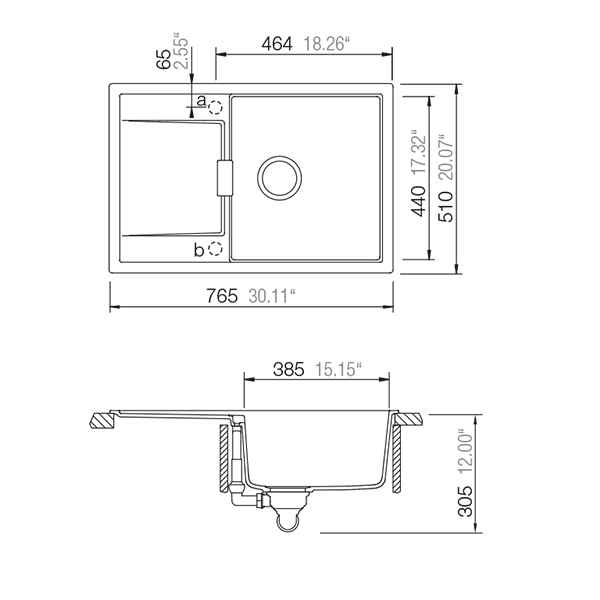

  • Product dimensions (Length x Width): 765 x 510 mm.
  • Cabinet size: 500 mm.
  • Bowl size: 385 x 440 x 195 mm.
  • Installation: reversible.
  • Manual drain kit included.
  • Cut-out top-mount : 745 x 490 mm.
  • Cut-out size under-mount: 749 x 494 mm.
  • Material : CRISTADUR.
  • Worktop thickness under-mount with dishwasher: 27 mm.


  • Upon request. Delivery time 3 – 4 weeks.
  • Minimum order quantity: 3.

 Download technical data.

 Download mounting instructions.



SKU: N/A Categories: , Tags: , ,
Previous slide
Next slide
MONO D-100 1
MONO D-100 2


The patented, premium CRISTADUR® finish boasts a compelling silky texture and feel, intense shimmering colours and the easy-care dirt-repellent effect. CRISTADUR® models can be further enhanced with many premium features (such as matching trim) and have won numerous awards.


In cooperation with our partners worldwide we offer end customers the chance to extend their product warranty. Please contact your local dealer for a warranty that lasts 15 years – in other words, a kitchen’s lifetime.

MONO D-100 3

Installation video
