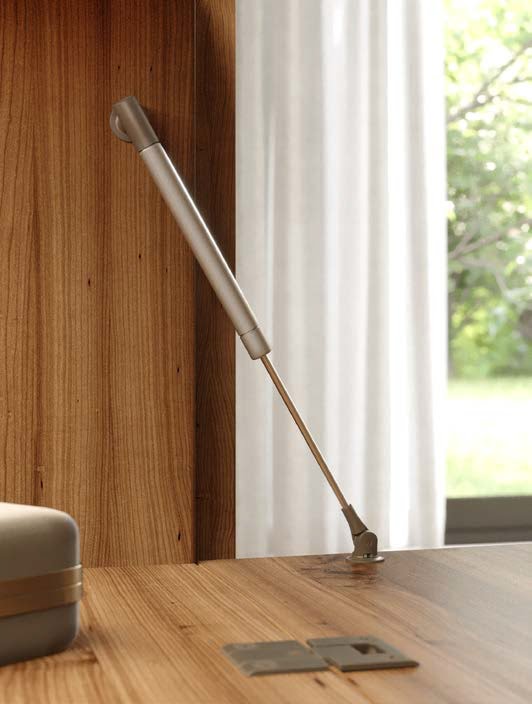

Drop down mechanism “K12 ADJ”

PRODUCT INFORMATION

Thanks to the reduced size and minimal design, K12 System ADJ provides a new concept of elegance in all details. The lift-up version is available in a wide range of N strengths and in three different lengths, to suit any door dimension and weight. K12 System ADJ is an easy-to-install solution that makes additional screws unnecessary, improving the aesthetic and reducing assembling time.

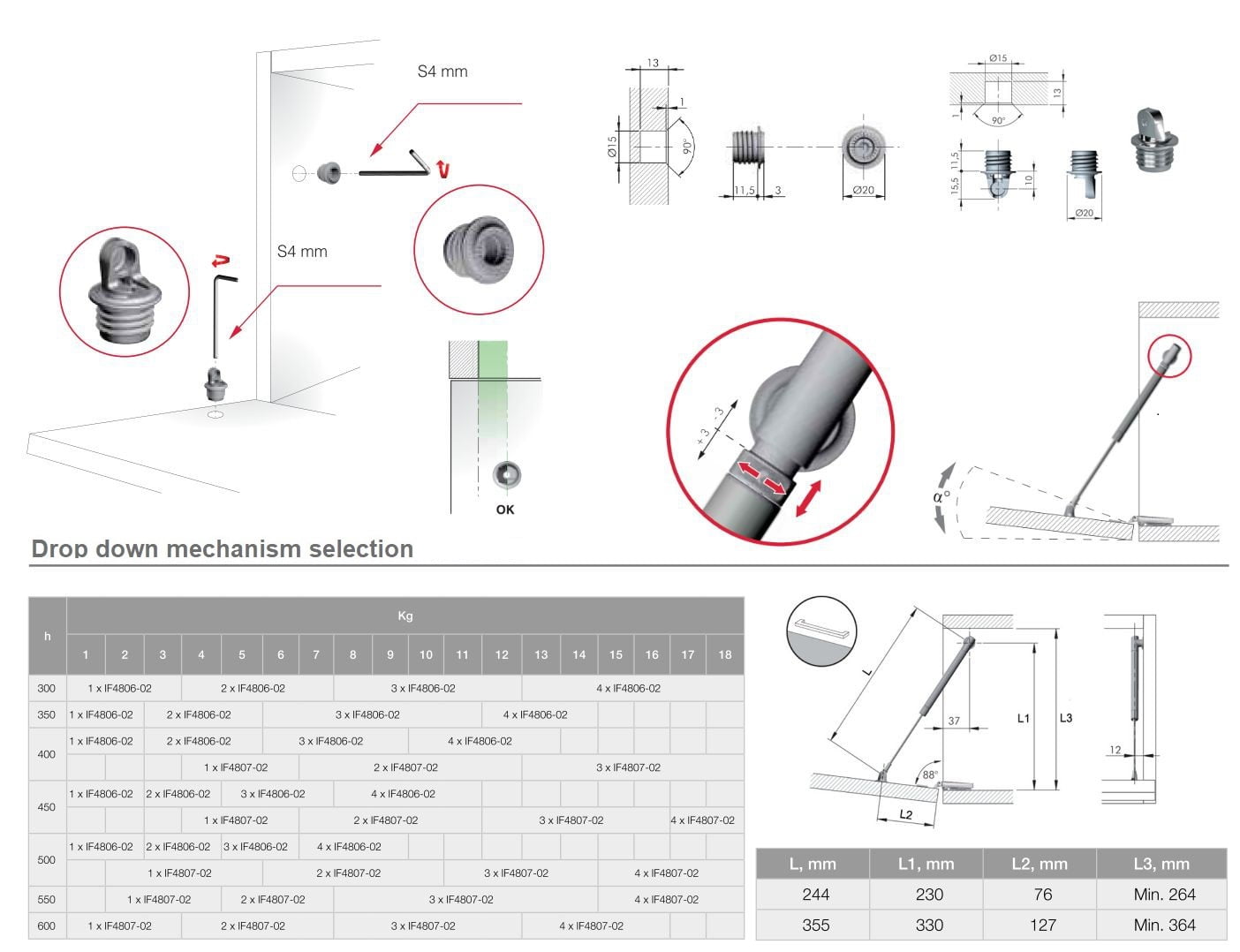

It operates through click-in door and side supports, sensibly reducing the risk of unsafe or improper installation. K12 System ADJ provides also an integrated mechanism for the adjustment of the opening angle, in order to align nearby doors. It ensures a smooth and continuous movement of the door up to its maximum opening. All parts (stay excluded) are in zinc alloy nickel plated, steel and engineering plastic.

Finish: Graphite.

This product requires :

• Side plate, milled (nickel plated)
• Drop down mechanism bracket, milled (nickel plated)

ORDER INFORMATION
