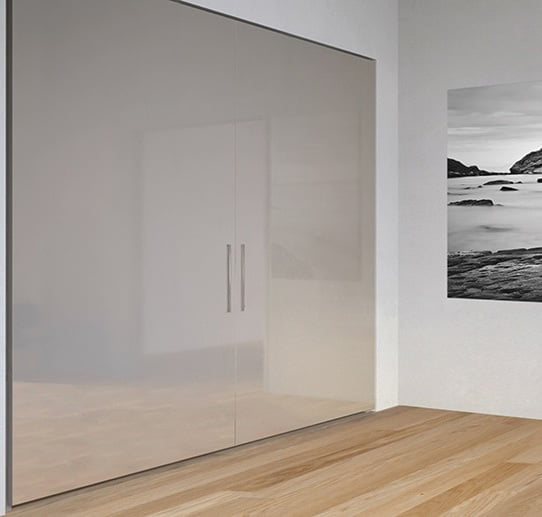

Coplanar system PS40

PRODUCT INFORMATION

  • Door width from 888 to 1800 mm.
  • The door is certified weight up to 60 kg.
  • Very easy installation, no need for routing door detail frame.
  • Rails can be cut in your workshop, by cutting operation.
  • Doors cover 100% of other doors when they are opened.
  • Rotary-type soft opening of the braking system „Soft Space“.
  • Soft closing system based on gravitational force.
  • Facade with the handle thickness from 16 mm to 55 mm (when mechanism fastened to milled slots to facade) or up to 43 mm (without mechanism fastened to milled slots to facade).
  • The narrow rail to cap allows the use of standard furniture legs.
  • Minimum gap between door and floor only 17 mm, from ceiling only 25 mm.

NOTES

Mounting scheme

ORDER INFORMATION

Clear

£0.09£564.99 (ex. VAT)

All Variations

SKUPriceDescriptionQuantityAdd to Cart
CI.PS40.2000£296.70 (ex. VAT)Set of rails, L, mm 2000
CI.PS40.2450£301.53 (ex. VAT)Set of rails, L, mm 2450
CI.PS40.3050£370.32 (ex. VAT)Set of rails, L, mm 3050
CI.PS40.3850£507.78 (ex. VAT)Set of rails, L, mm 3850
CI.PS40MECH.D£564.99 (ex. VAT)Set of mechanism for one doors, right side
CI.PS40MECH.K£564.99 (ex. VAT)Set of mechanism for one doors, left side
CI.PS40KL4001£24.59 (ex. VAT)Set of elements for mounting without door molding (for 1 doors)
CI.VA12103927/£0.10 (ex. VAT)Screw for rail fixing, for an 18 mm thick panel (3,9x27 mm)
CI.VA12103932/£0.09 (ex. VAT)Screw for rail fixing, for a 24 mm thick panel (3,9x32 mm)
