Cabineo X Starterset

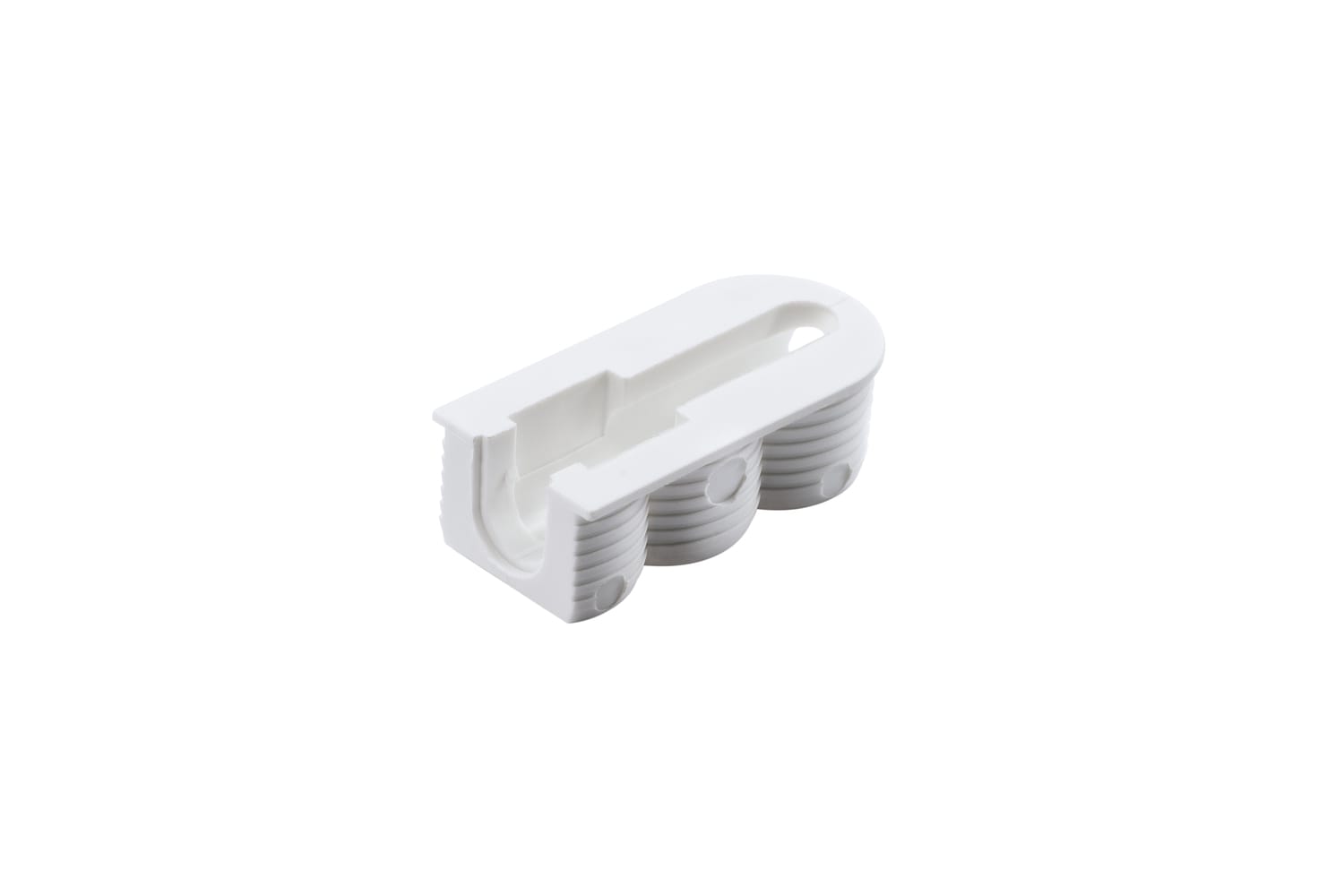

Cabineo X is a connector for cabinets and shelves that can be used with all CNC machines and is pressed into place in the workshop or on site. Due to the open housing, it is possible to insert a Cabineo screw from the top and screw it into the counterpart with a hexagon bit. Using it with screws, Cabineo X is ideal when installing shelves into already joined cabinets or when assembling corner joints. Combined with shelf supports, Cabineo X prevents shelves from being pulled out.

Contents Include:

  • 80 x Cabineo X
  • 40 x Cover caps

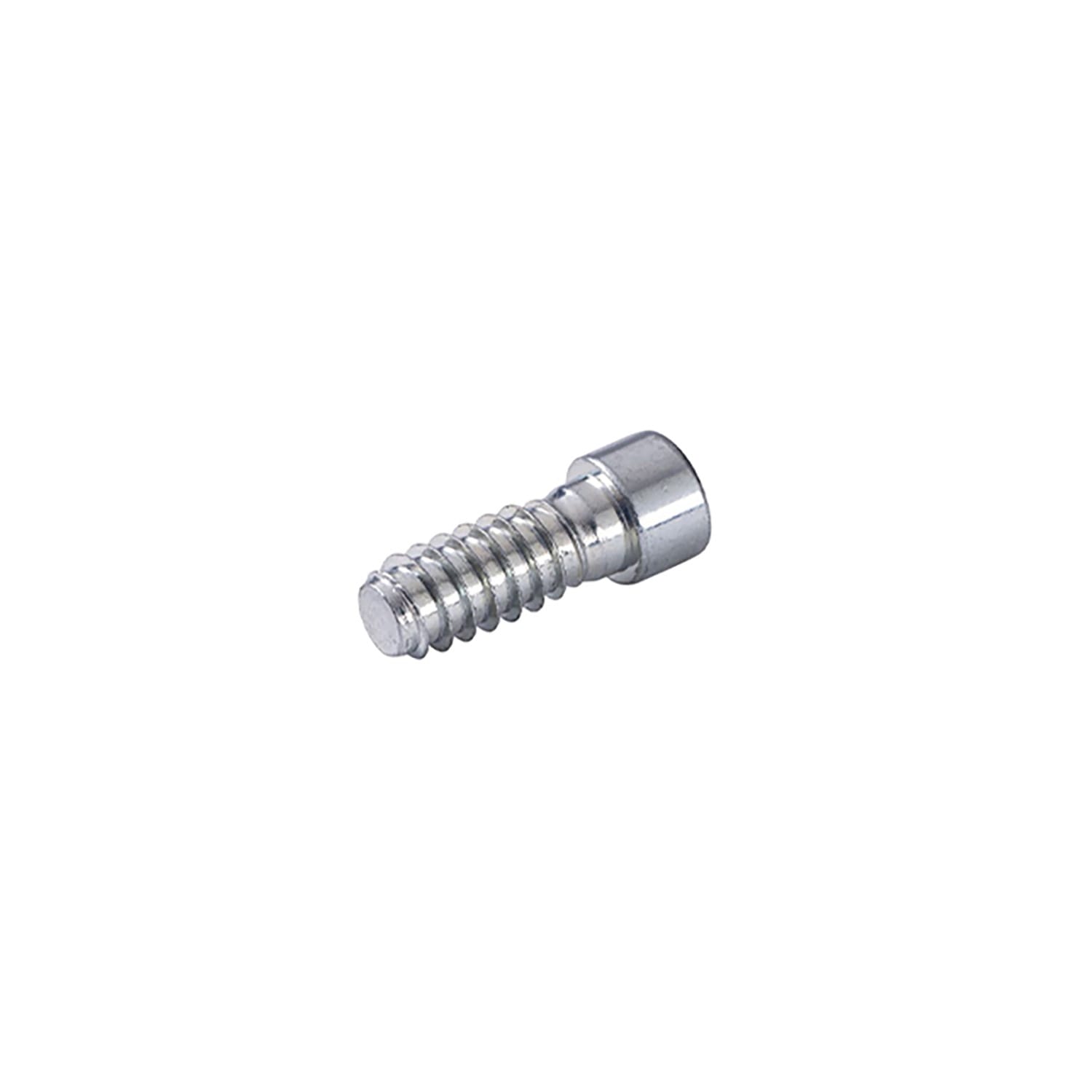

  • 40 x Cabineo 12 Screws
  • 20 x Cabineo 8 M6 Screws
  • 20 x Cabineo Shelf Support Ø5
  • 20 x Cabineo Shelf Support Ø3
  • 1 x Cabineo Bit
  • 1 x Drill bit

Product Information

  • For use with CNC without edge drilling
  • Secured against pulling out and lifting off; ideal for open shelf units
  • Same housing for connectors and adjustable shelves

Technical information

  • Size (mm): 33.8 x 16.5 x 10.8 mm
  • Cutter: Ø 12 mm or smaller
  • Drill: Ø 5 mm and Ø 15mm
  • Material of connector: Fibre glass reinforced plastic
  • Installation tolerance: – Lengthwise ± 0.5 mm (Cabineo ± 0.1 mm)

View Lamello range here

Lamello page

Catalog page


£53.10 (ex. VAT) £63.72 (inc. VAT)

SKU: 186307 Category: Tag:
