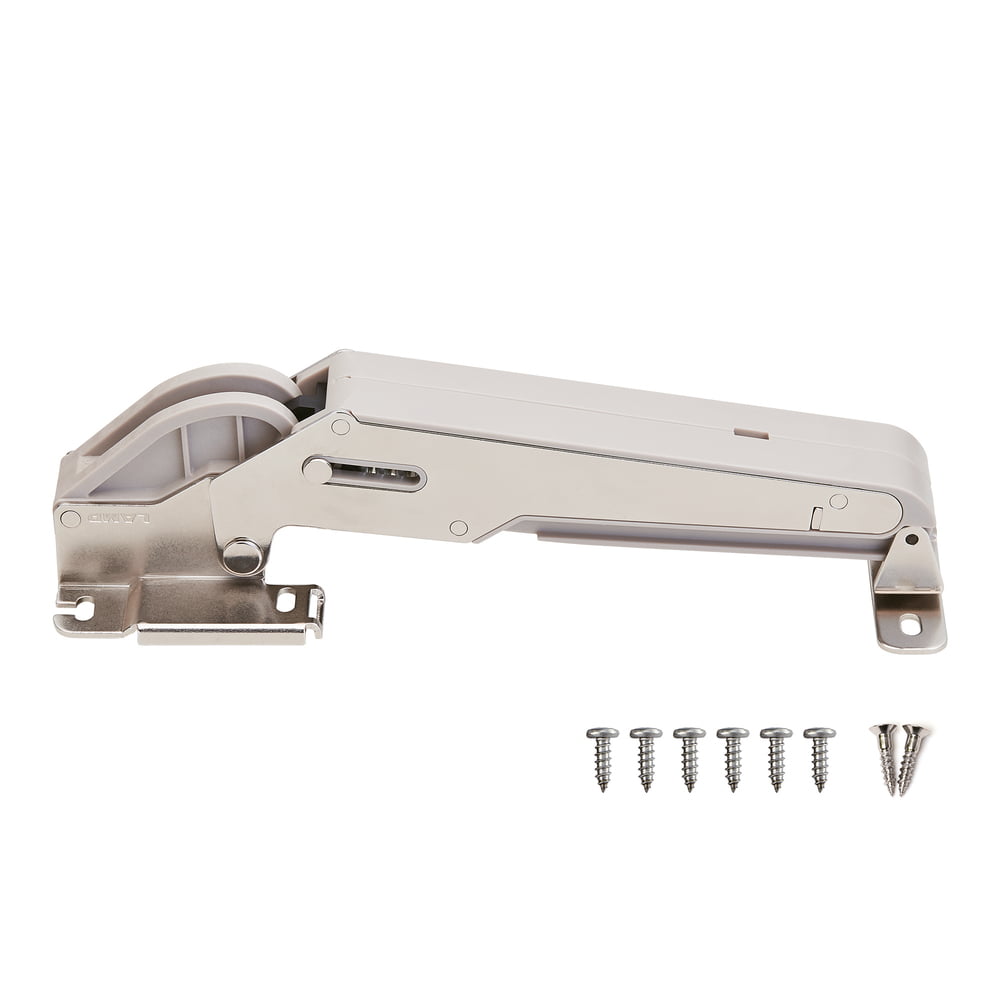

Aileron stay for olympia ARN-3

PRODUCT INFORMATION

• Aileron stay for olympia ARN-3.
• Smooth door movement. It is specially designed for use with the OLYMPIA concealed hinge.
• The lift-assist function allows for light opening of doors.
• The force of lift-assist is adjustable.
• The soft-close function makes doors close gently (0° – 30° degrees).
• Integrated design combines a concealed hinge and lid stay.
• The free-stop function enables doors to hold in position.
• Closing speed of doors is adjustable.
• Operating temperature: 0℃– 40℃
• Material: Steel (SPCC) / POM.
• Finish: Nickel plating / Grey
• Door Width,mm: 450～900.

Set contains:

• 1 AILERON stay
• 2 OLYMPIA hinges (with damper)
• 1 AILERON mounting plate
• 1 OLYMPIA mounting plate
• 8 extra screws

Download mounting instructions

Download catalog page.

To calculate the required product.

Door Height in meter/2 x kg x 9,8

Example: 0,48m/2 x 9kg x 9,8 = 21,18Nm.
