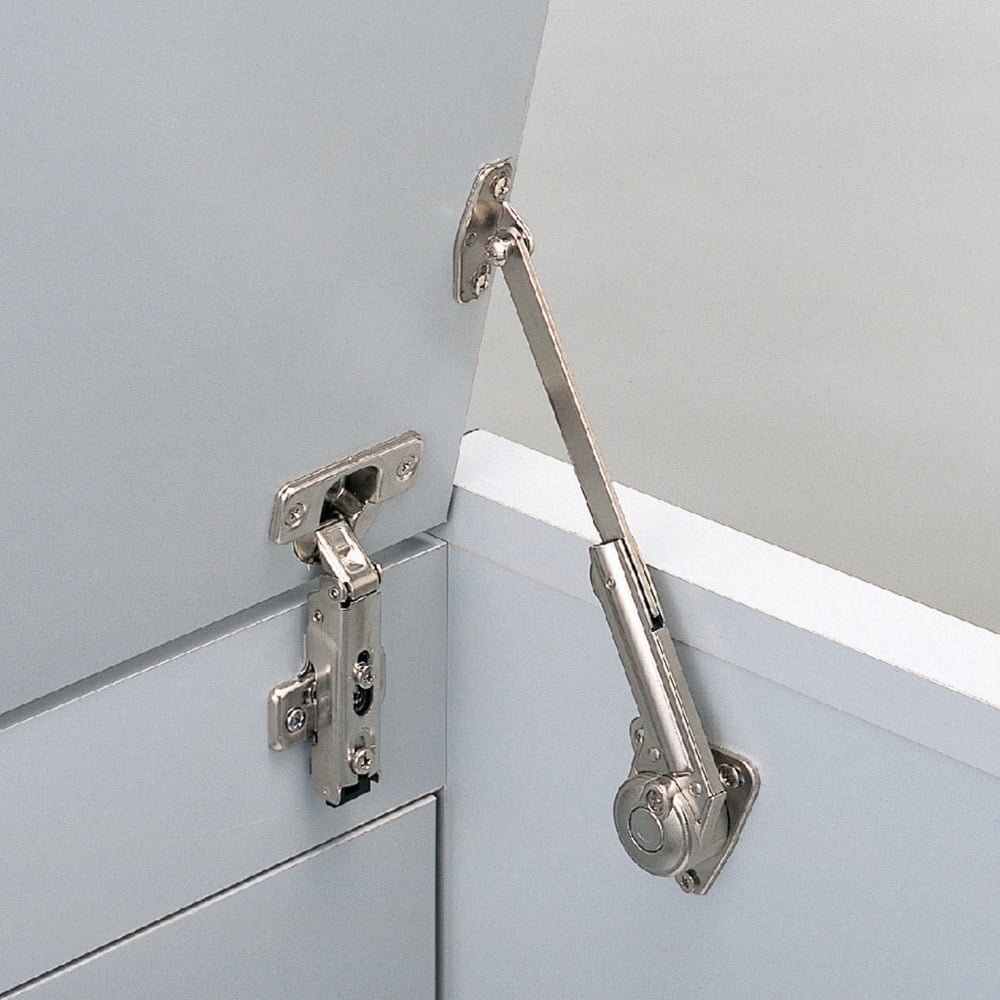

ADJUSTABLE SOFT-DOWN STAY NSDX-20

PRODUCT INFORMATION

  • For top-opening flap doors.
  • Built-in damper causes flap to close gently preventing slamming.
  • Built-in catch holds flap in fully opened position position.
  • Can also be used with concealed, piano, or butt hinges.
  • Depending on installation position, opening angle can be set to either 70˚ or 105˚.
  • Successfully passed for the 30,000 open/close private cycle test.
  • Closing speed adjustable.
  • Material: Zinc Alloy (ZDC), Steel
  • Finish: Nickel.

Required mounting plates (Sold separately)

Torque

  • With 1 stay
    Torque = 1.98 – 6.86 N·m (20 – 70 kgf·cm)
  • With 2 stays, the torque will be doubled.
  • Torque = Door weight (kg) x 9.8 x Length from the axis to the center of gravity of the door (m)

Download catalog page.

ORDER INFORMATION

Clear

£17.98 (ex. VAT)

All Variations

SKUPriceSideQuantityAdd to Cart
SU,NSDX-20L£17.98 (ex. VAT)Left
SU.NSDX-20R£17.98 (ex. VAT)Right
