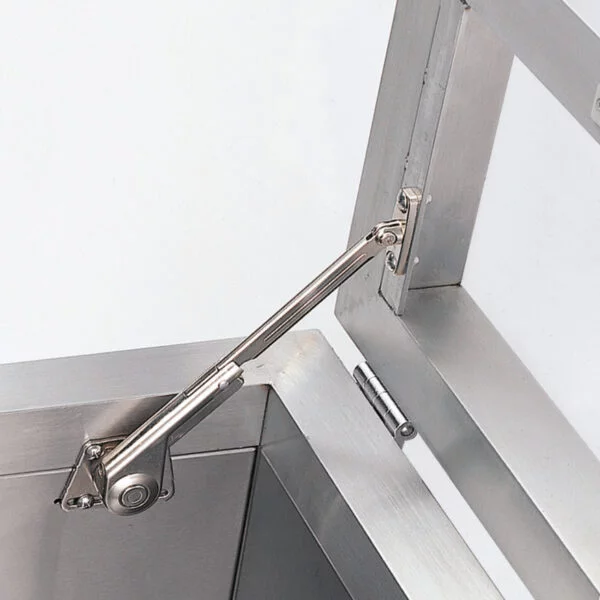

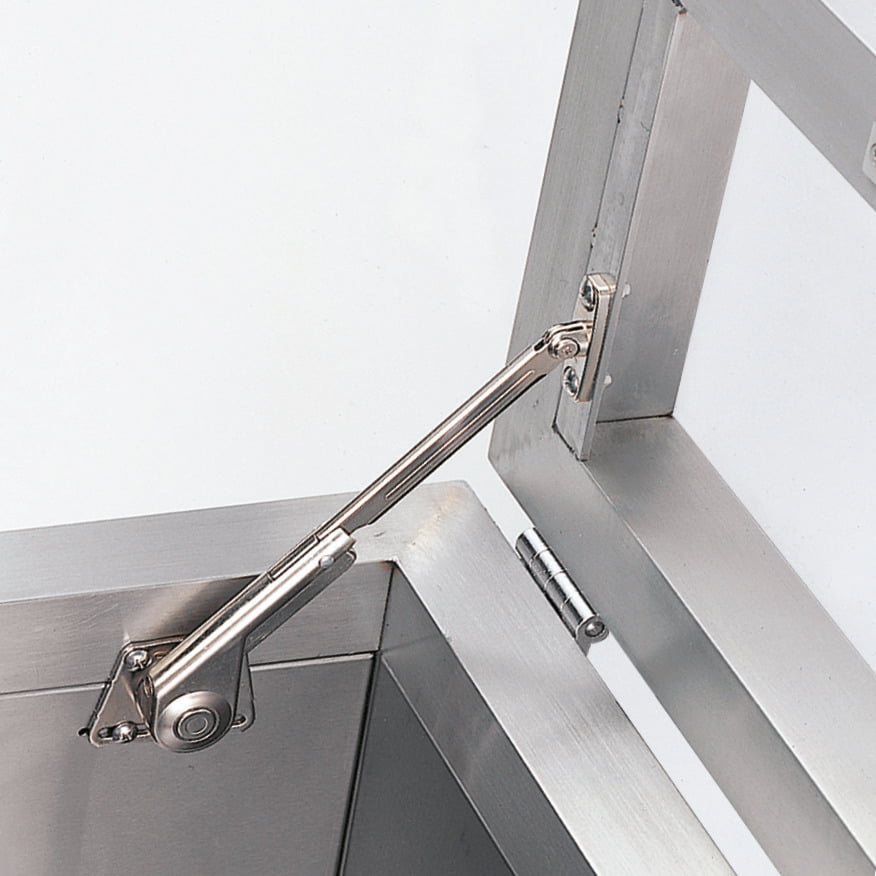

ADJUSTABLE SOFT-DOWN STAY NSD-20

PRODUCT INFORMATION

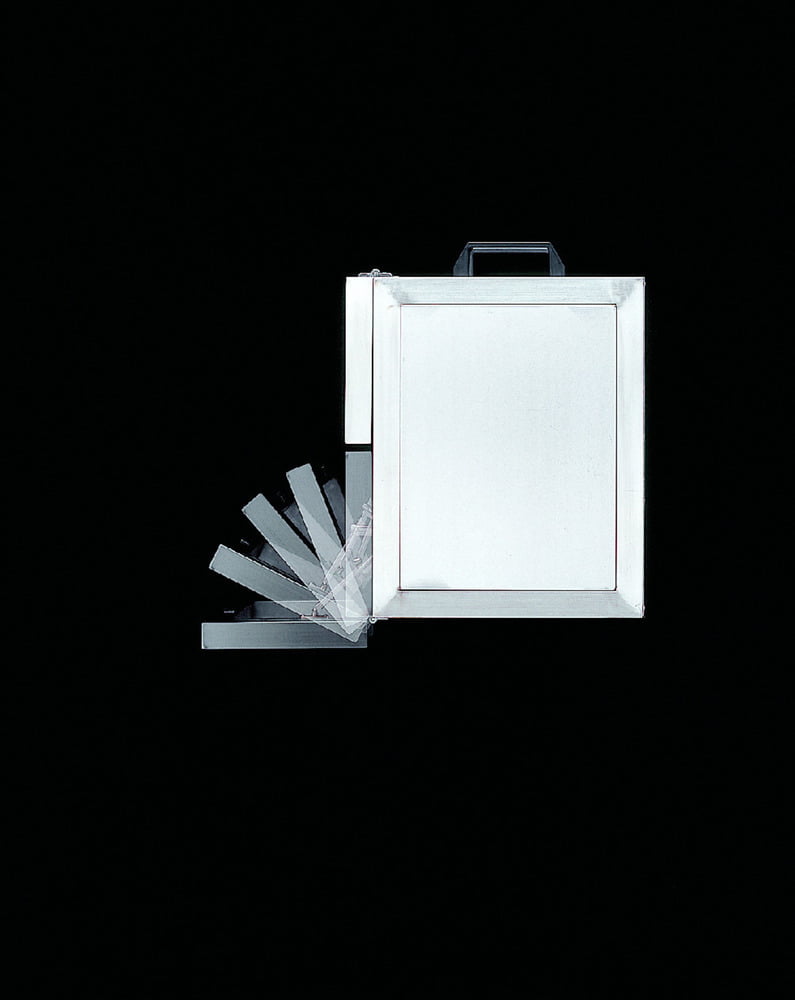

  • For top-opening flap doors.
  • Can also be used with concealed, piano, or butt hinges.
  • Opening angle adjustable from 70˚ to 105˚.
  • Designed to hold the flap in a fully opened position.
  • Successfully passed 50,000 open/close cycles in a private test.
  • Closing speed adjustable.
  • Torque Calculation :
    -Torque = Door Height x 1/2 x Door Weight.
    -Per Piece : 20 Р70 kgf·cm
    -Per Pair : 40 Р140 kgf·cm

Sold Separately

Parts included:

  • Mounting plate
  • Binding head tapping screw 3.5×15

Torque

  • With 1 stay
    Torque = 3.43 – 4.9 N·m (35 – 50 kgf·cm)
  • With 2 stays, the torque will be doubled.

Download catalog page.

ORDER INFORMATION

Clear

£25.65 (ex. VAT)

All Variations

SKUPriceSideQuantityAdd to Cart
SU.NSD-20L£25.65 (ex. VAT)Left
SU.NSD-20R£25.65 (ex. VAT)Right
