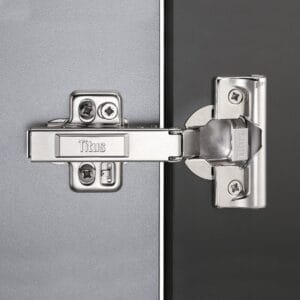

PRODUCT INFORMATION Opening angle - 110°. Drilling diameter for hinge cup - 35 mm. Drilling depth - 12 mm. Hinge on plate mounting system - 3 way snap-on. Suitable mounting plate: TITUS T-type mounting plate ORDER INFORMATION
PRODUCT INFORMATION For inset glass doors. Material: zinc alloy. For door height max. 800 mm. For door width max. 400 mm. For glass thickness max. 6.5 mm. With cup, with rubber buffer. For plug fitting into base panel, for direct fixing to glass door with screw. Without spring. No drilling in glass necessary. ORDER INFORMATION
PRODUCT INFORMATION For 45° angled cabinets. 110° opening angle. Convenient depth adjustment via worm gear. 4-dimensional adjustment with appropriate mounting plate. Minimum reveals. Mounting plate is not included in the set. Please order it additionally by choosing from the list of related products. ORDER INFORMATION
PRODUCT INFORMATION For 45° angled cabinets. 110° opening angle. Convenient depth adjustment via worm gear. 4-dimensional adjustment with appropriate mounting plate. Minimum reveals. Mounting plate is not included in the set. Please order it additionally by choosing from the list of related products. ORDER INFORMATION
PRODUCT INFORMATION For 37° angled cabinets. 110° opening angle. Convenient depth adjustment via worm gear. 4-dimensional adjustment with appropriate mounting plate. Minimum reveals. Mounting plate is not included in the set. Please order it additionally by choosing from the list of related products. ORDER INFORMATION
PRODUCT INFORMATION For 37° angled cabinets. 110° opening angle. Convenient depth adjustment via worm gear. 4-dimensional adjustment with appropriate mounting plate. Minimum reveals. Mounting plate is not included in the set. Please order it additionally by choosing from the list of related products. ORDER INFORMATION
PRODUCT INFORMATION For 30° angled cabinets. 110° opening angle. Convenient depth adjustment via worm gear. 4-dimensional adjustment with appropriate mounting plate. Minimum reveal. Mounting plate is not included in the set. Please order it additionally by choosing from the list of related products. ORDER INFORMATION
PRODUCT INFORMATION For 30° angled cabinets. 110° opening angle. Convenient depth adjustment via worm gear. 4-dimensional adjustment with appropriate mounting plate. Minimum reveal. Mounting plate is not included in the set. Please order it additionally by choosing from the list of related products. ORDER INFORMATION
PRODUCT INFORMATION 110° opening angle. Optimum gap widths for aluminium frames with a frame thickness of up to 24 mm and a frame width of 22 mm. Hinge not visible from the outside. Convenient depth adjustment via worm gear. 4-dimensional adjustment with appropriate mounting plate. Mounting plate is not included in the set. Please order it additionally by choosing from…
PRODUCT INFORMATION 95° opening angle. Optimum reveals up to 36 mm door thickness. Convenient depth adjustment via worm gear. 4-dimensional adjustment with appropriate mounting plate. Mounting plate is not included in the set. Please order it additionally by choosing from the list of related products. ORDER INFORMATION
