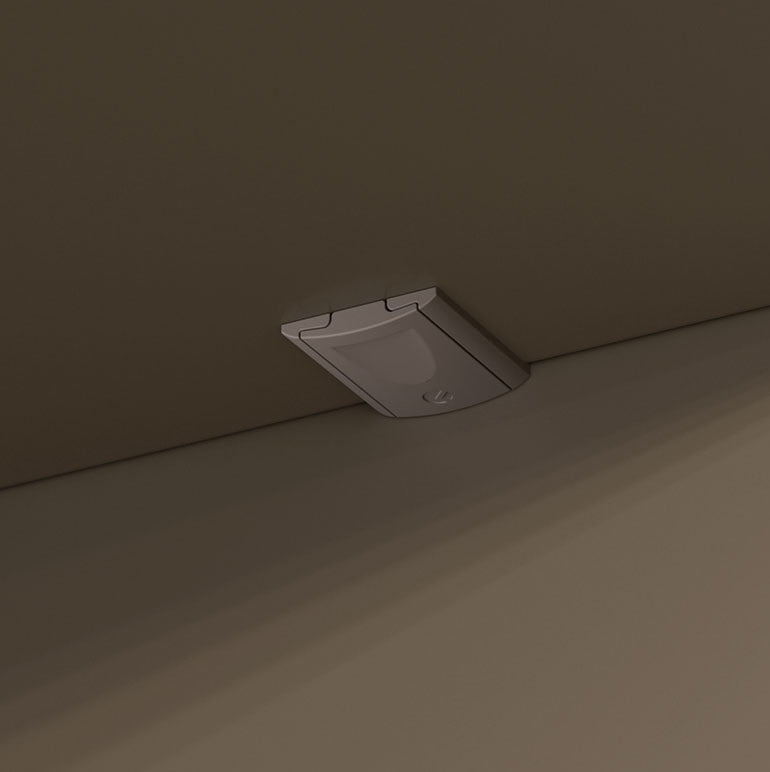

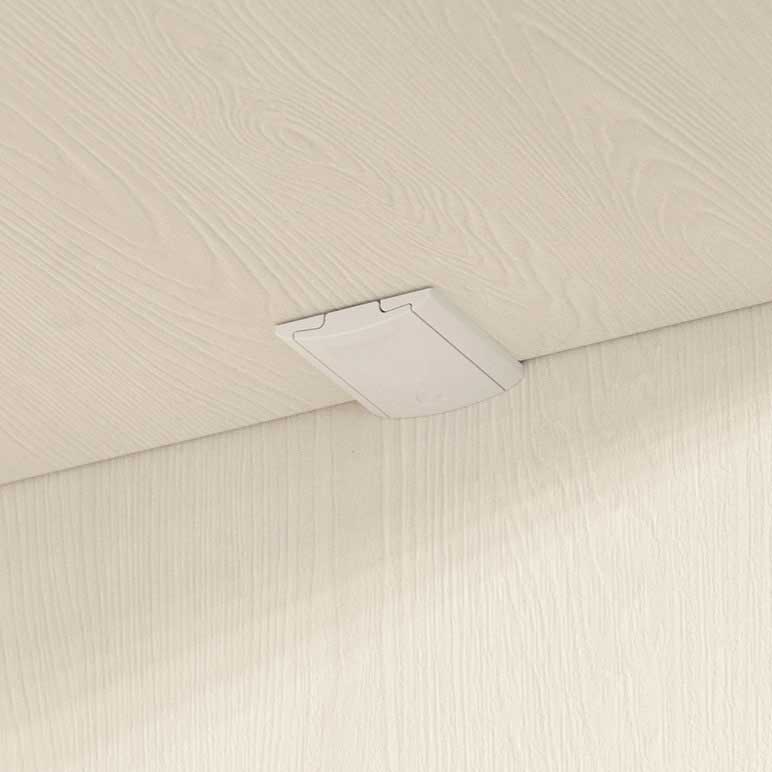

Shelf support Kerala

PRODUCT INFORMATION

  • For shelf minimum 16 mm thick (panel or wood).
  • The particular shape of the components guarantees the locking of the shelf and, therefore, the transportation of the furniture with the shelves already assembled.
  • As for the installation,also the dis-installation does not require the use of any tool, as it is simply carried out by sliding the clip backwards.
  • In accordance with the European regulations UNI EN 14749/05.
  • Recommended load capacity (Width x Length, mm – Max. shelves Weight300×600 mm – 32; 300×800 – 28; 450×600 mm – 30; 450×800 mm – 25. Easily variable shelf height.

Download mounting instructions.

ORDER INFORMATION

£0.23
