Cinetto PS66 Sliding system for retractable glass doors

PRODUCT INFORMATION

• Thanks to the innovative technology that works without upper and lower rails, PS66 allowes you to obtain a clean and linear result.
• Additional electronic door opening / closing system, supplied upon request can be retrofitted at any time.
• Max. door weigt 50 kg.
• Glass thickness – 8 mm.
• Softspace soft closing system included.
• Minimum distance between doors and floor or ceiling is only 12 mm.
• The distance between the module of retractable doors and the ceiling can be any, including zero.
• Door width 600 – 1000 mm. p>
• The minimum width of the module is 1062 mm (1262 mm, if mounted together with an electronic opening/closing system).
• The height of the system is 2100 – 3000 mm.
• Convenient height adjustment +/- 3 mm.
• The PS66 system is available on request. Delivery in 5-6 weeks.

Technical information

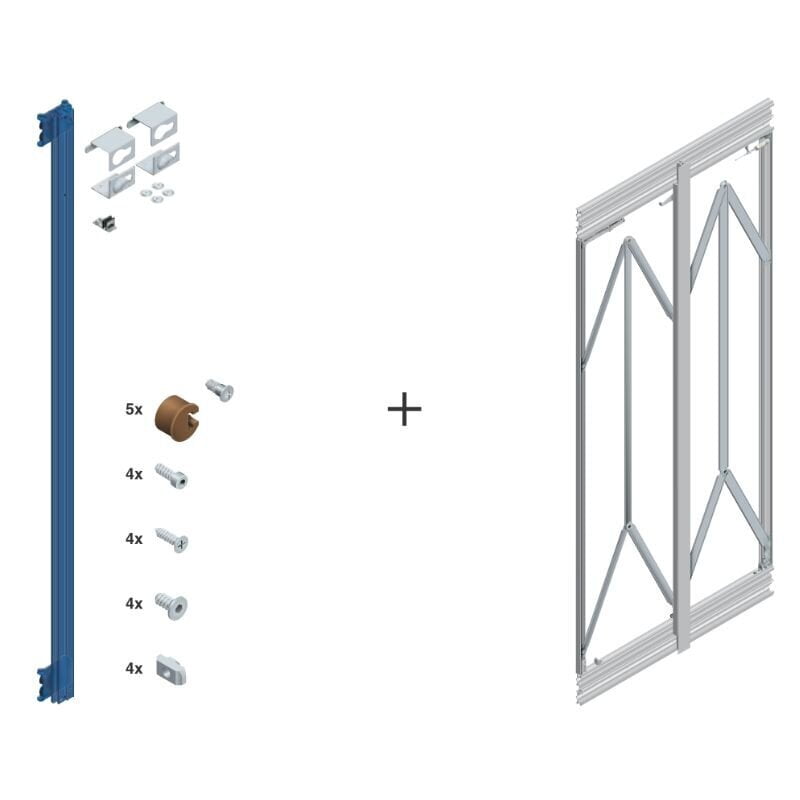

Mounting instructions.

The PS66 system is available on request. Delivery in 5-6 weeks.
