Hawa Junior 100 B Pocket Acoustics

PRODUCT INFORMATION

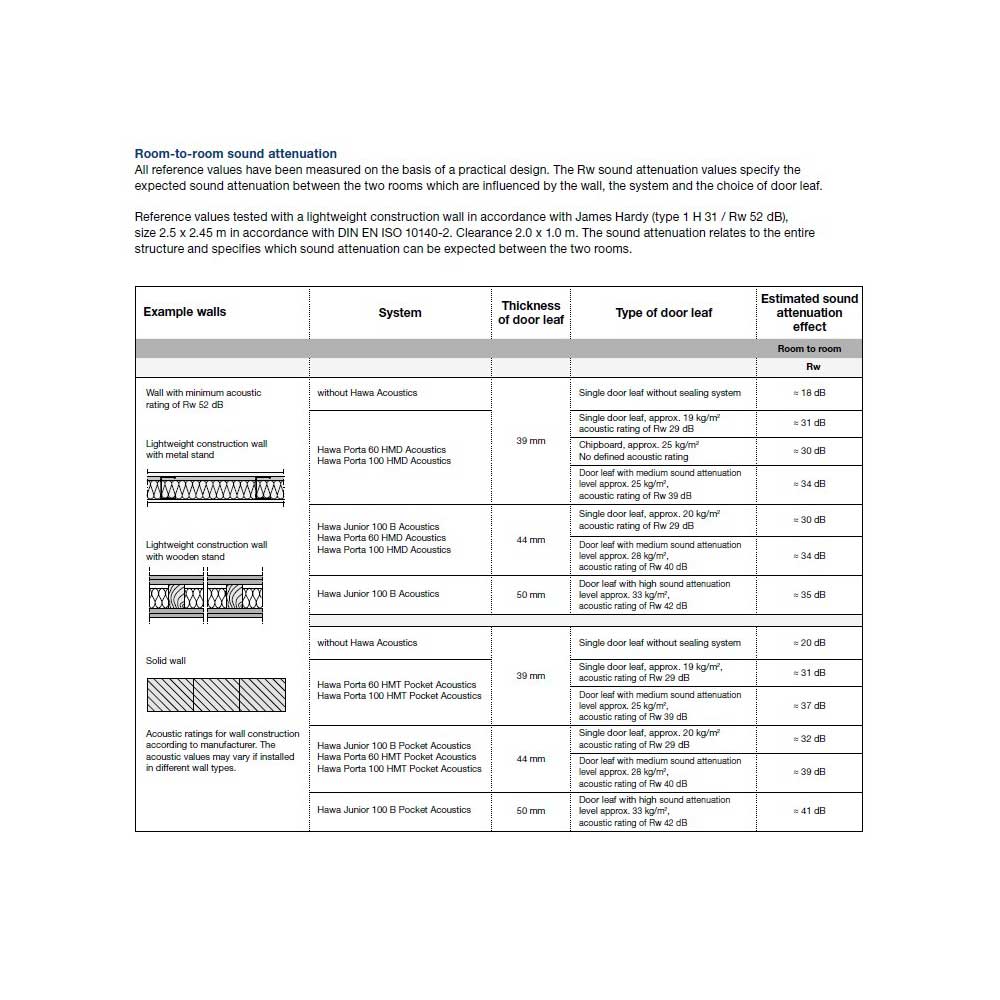

Hawa Junior Acoustics: Fitting for sliding doors with sound attenuation

Fitting for top-running wooden doors up to 100 kg (220 lbs.), with surface mounted running track or running track flush with the ceiling. Sound attenuation. Ceiling mounting. Wall pocket solution.

Overview of advantages:

• Comfort: Outstanding living comfort thanks to effective exclusion of sound, drafts, odors and unwanted light incidence
• Productivity: Easy height adjustment via both suspensions and convenient depth adjustment of the installed door in the wall pocket.

Specifications:

• Maximum door weight: 100 kg (220 lbs.)
• Door width: 750–1250 mm (2′ 5 17/32” to 4′ 1 7/32”)

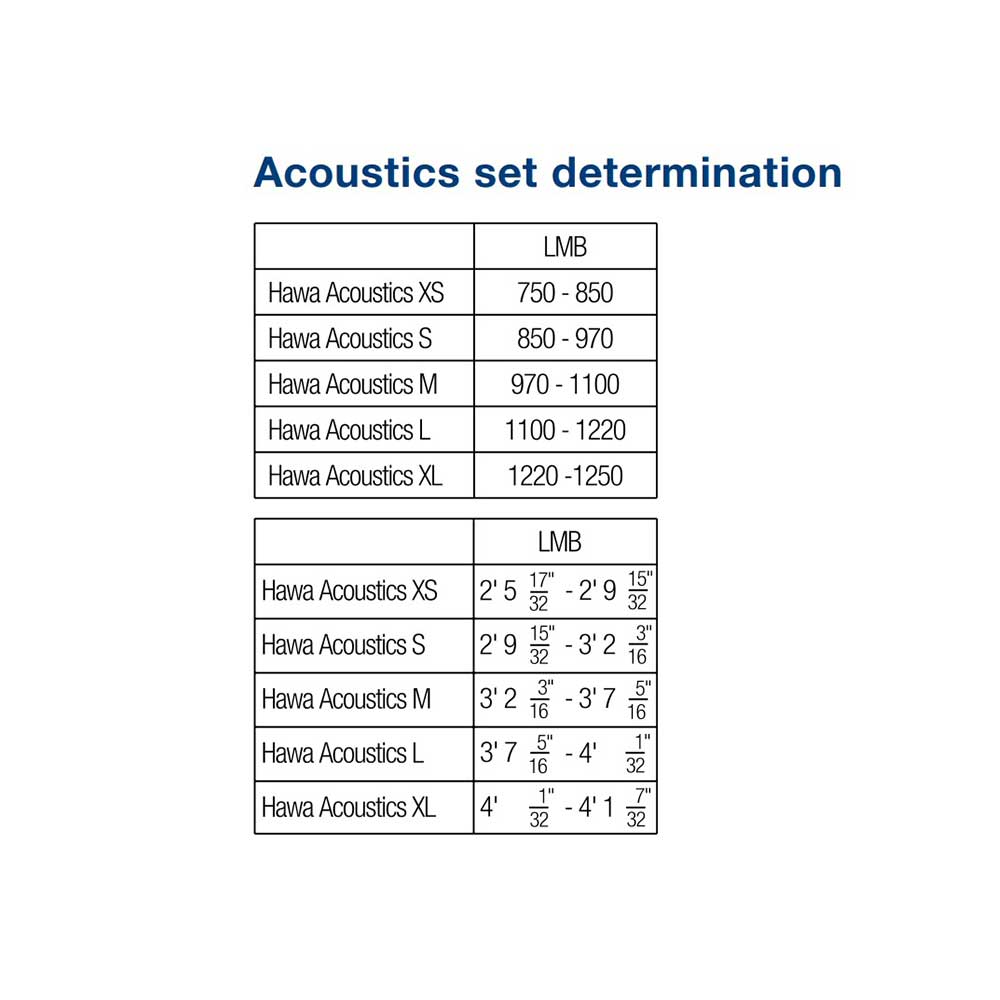

  Inside clearance (LMB)
• Height: 2500 mm (8′ 2 7/16”)
• Thickness: 44–50 mm (1 23/32” to 1 31/32”)

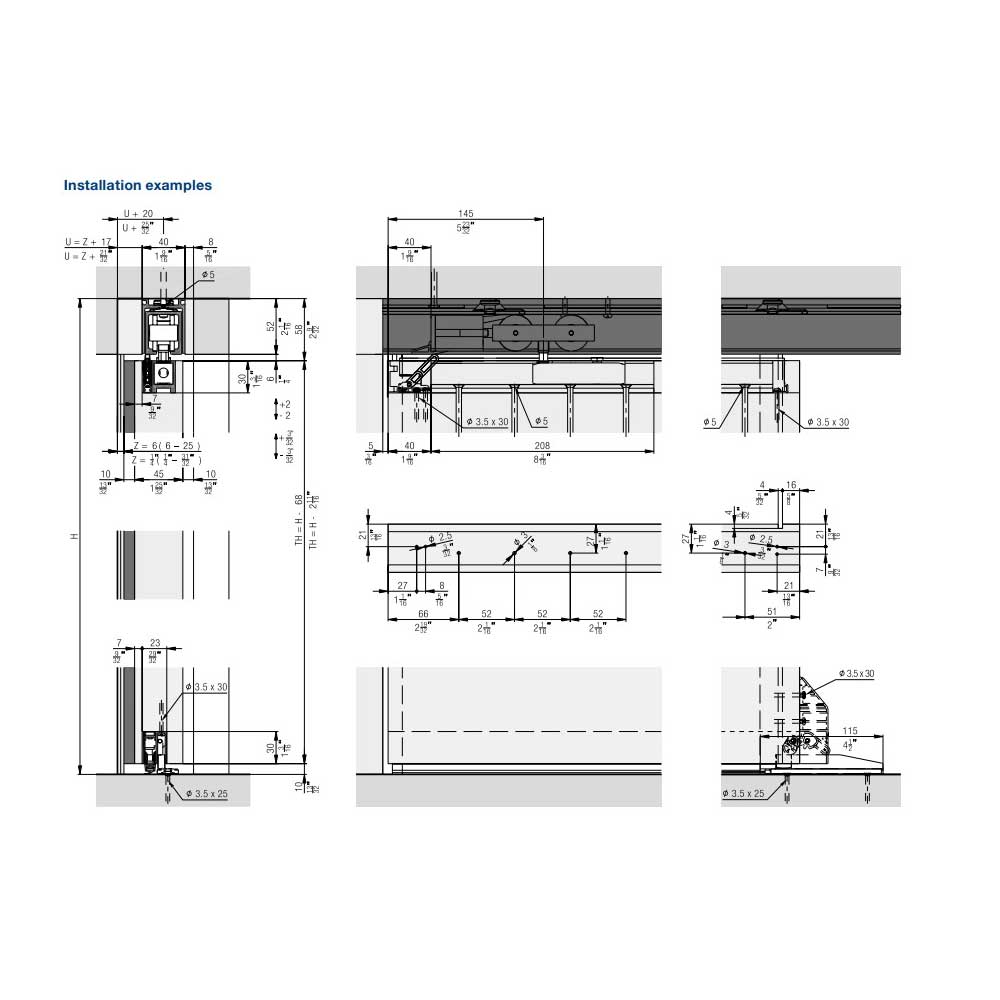

Mounting Instructions:

View Hawa concepta range here

Mounting instructions.
