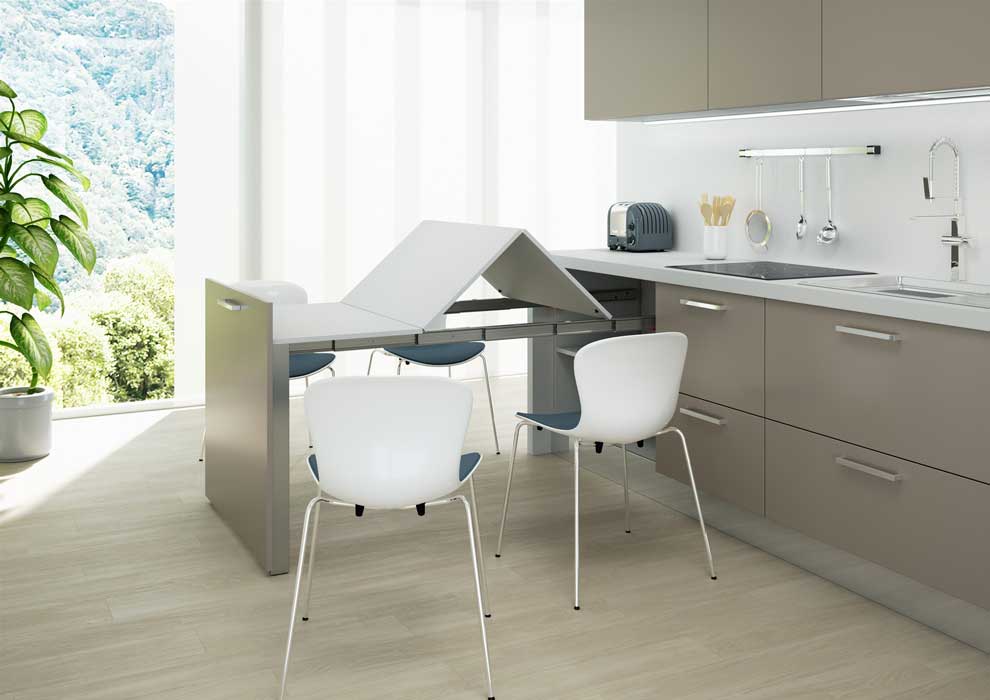

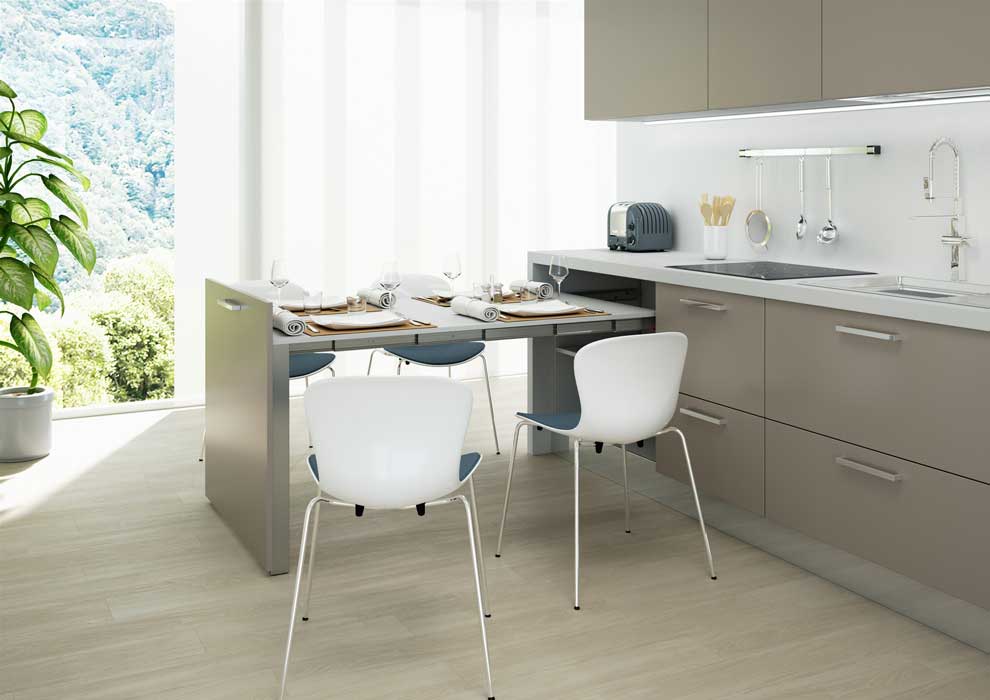

Evolution / Evolution XL – pull-out table from the cabinet


Evolution is a system that allows the instalation of a space-saving medium (100cm) or large (150cm) table inside a cabinet. The mechanism has been designed to allow the use of the door of the furniture composition, or to be inserted in a piece of furniture in which the closing door is not provided (example: monobloc kitchens with retracting doors). The mechanism is supplied complete with painted steel bridge leg with two ground adjustable wheels.

  • Finish: Bronzino stainless steel
  • Load capacity: 100 Kg equally distributed
  • Naked version (N): Matt black RAL 9005. Without bar for door fixing
  • Sliding: Aluminum / Aluminum

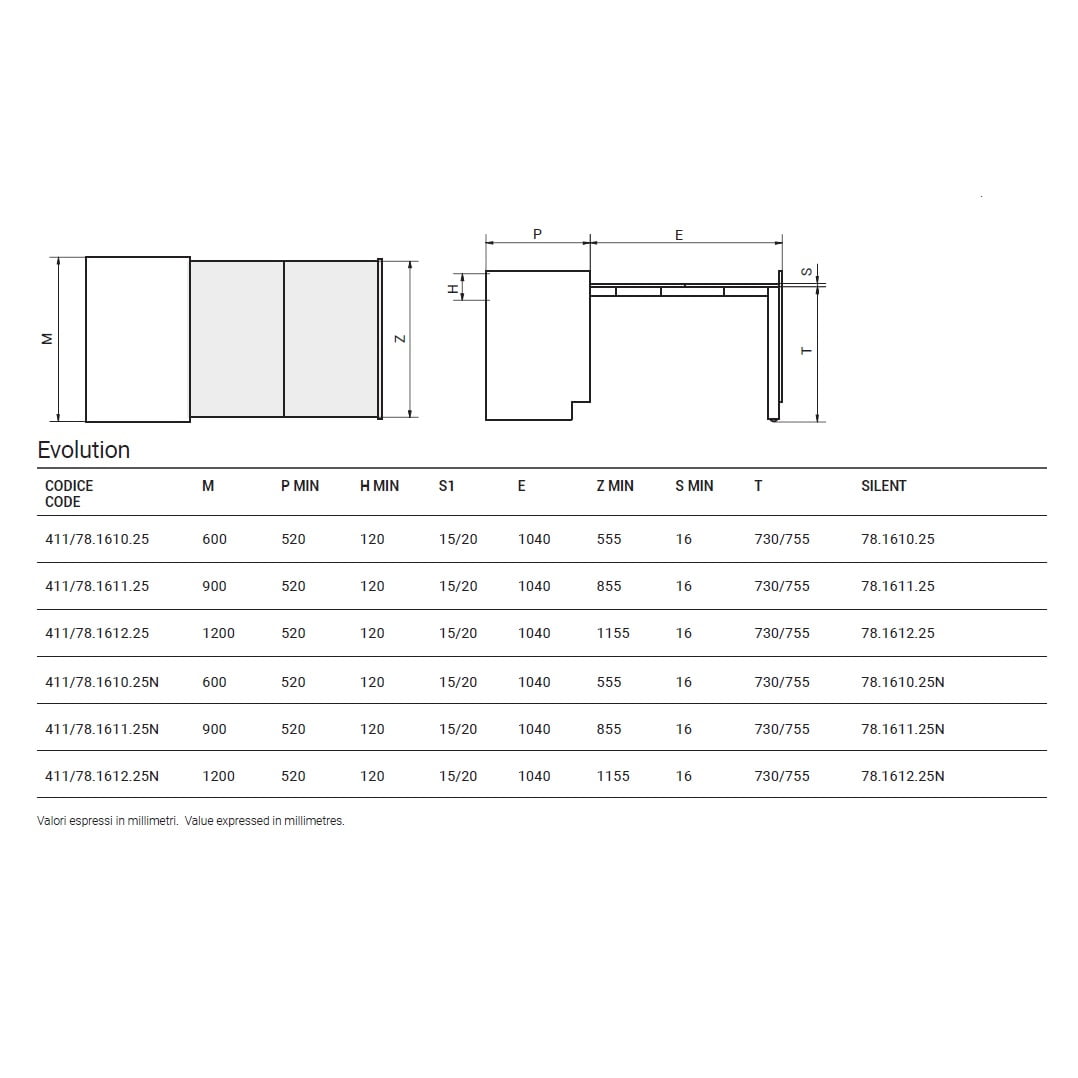

  • Cabinet width,mm: 450, 600, 900.
  • Min. height,mm : 120 , 150.
  • Extended table length,mm : 1040.

Optional accessories:

* The article does not provide for the supply of wooden parts.

Download catalog page.
