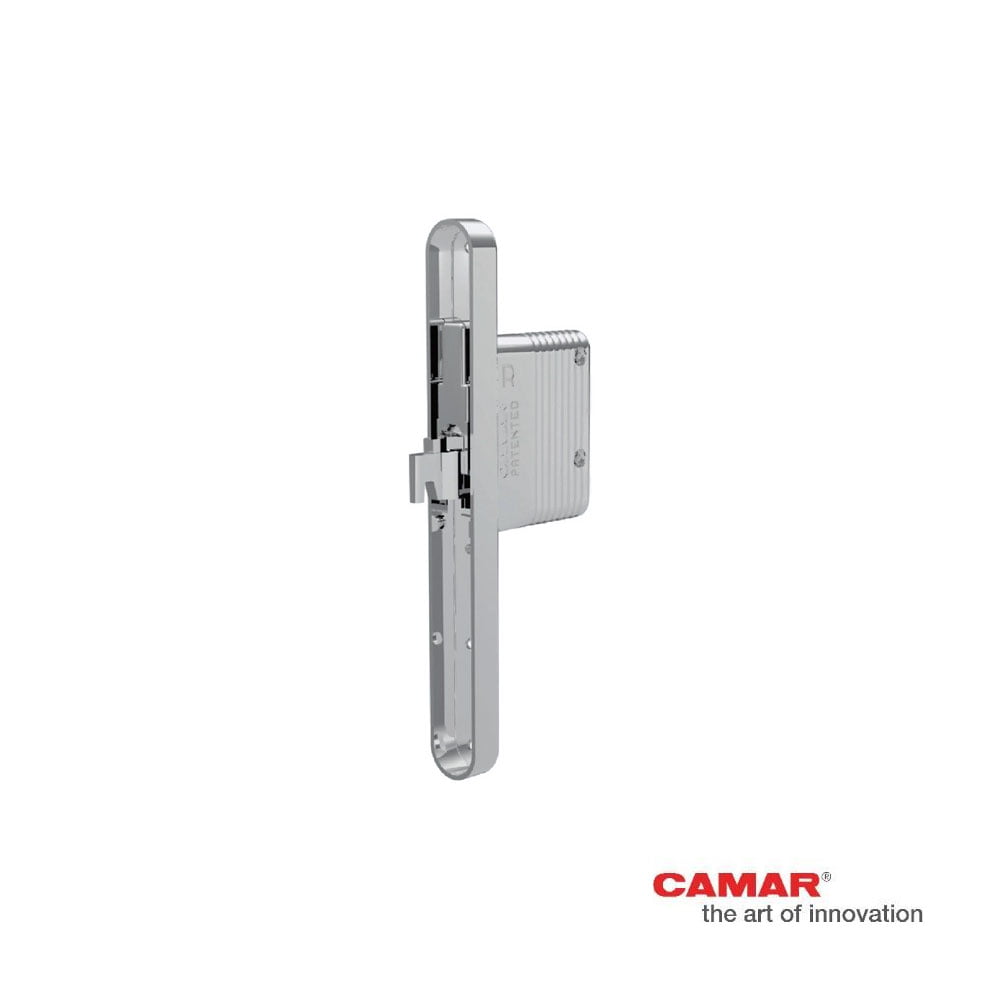

Cabinet hangers 821 mounted in the side panel

PRODUCT INFORMATION

  • For cabinets without rare panel or shelves.
  • Depth adjustment 12 mm.
  • Horizontal adjustment – 5+2 mm (CAM.82120…) or 2 mm (CAM.82112).

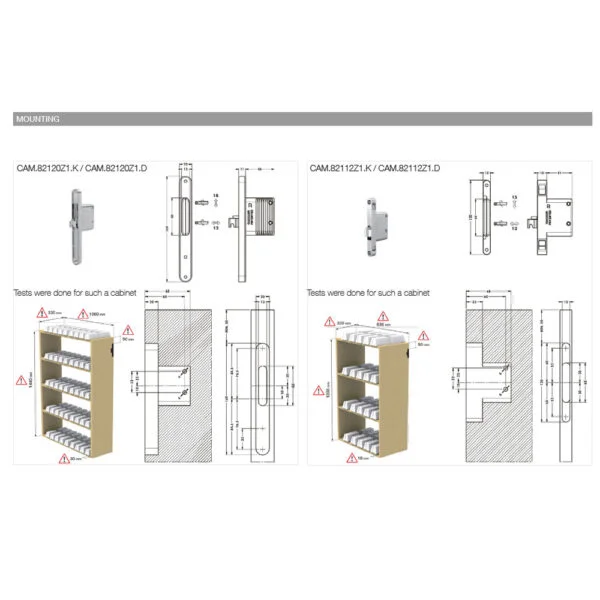

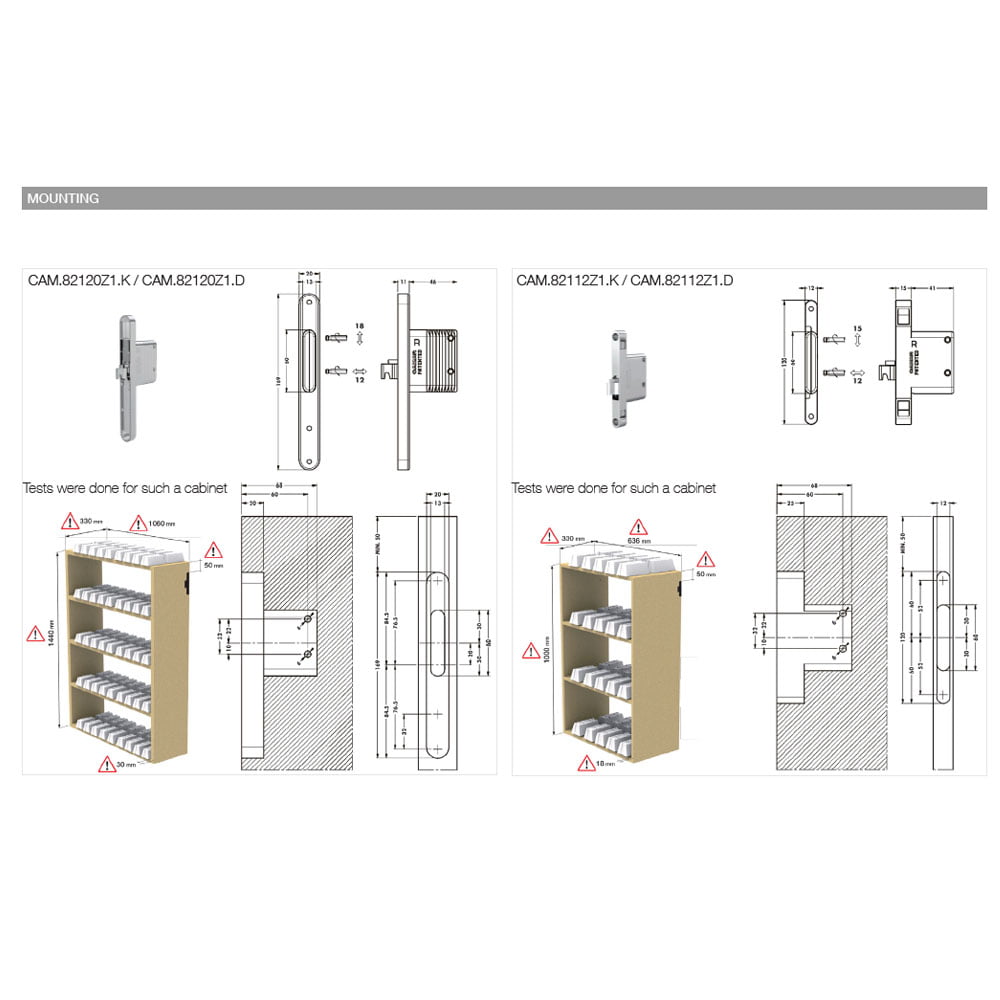

  • Capacity loading 60 kg for 12 mm model holder  (when cabinet dimensions are 636x330x1000 mm).
  • Capacity loading 100 kg for 20 mm model holder (when cabinet dimensions are 1060x300x1440 mm).
  • With “Lock” function – impedes any involuntary removal of top hanging cabinets.

Accessories:

ORDER INFORMATION

Clear

£0.18£10.98 (ex. VAT)

Additional information

Type

Left side, Right side, Endings

Material

Iron, Metal

W

20, 12, –

H, mm

169

D, mm

57

Finish

Zinc plated
