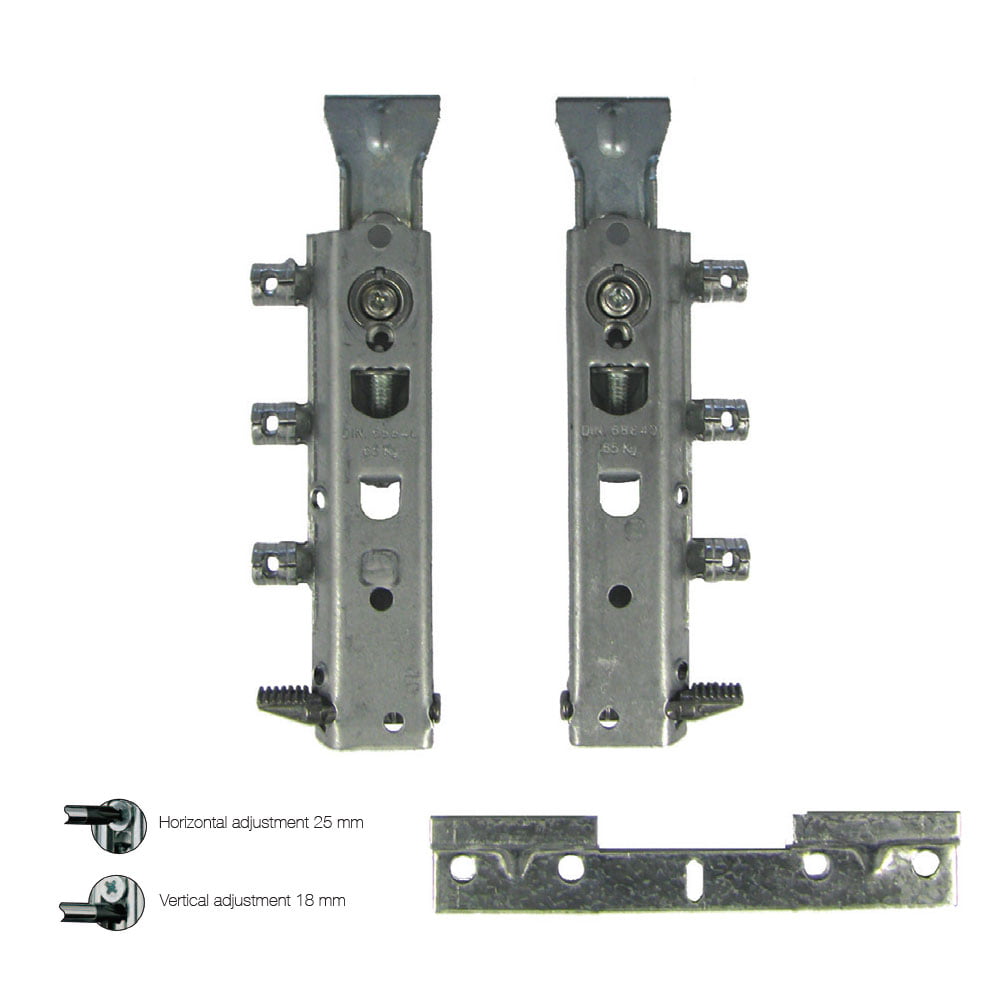

Cabinet hanger ID.5510

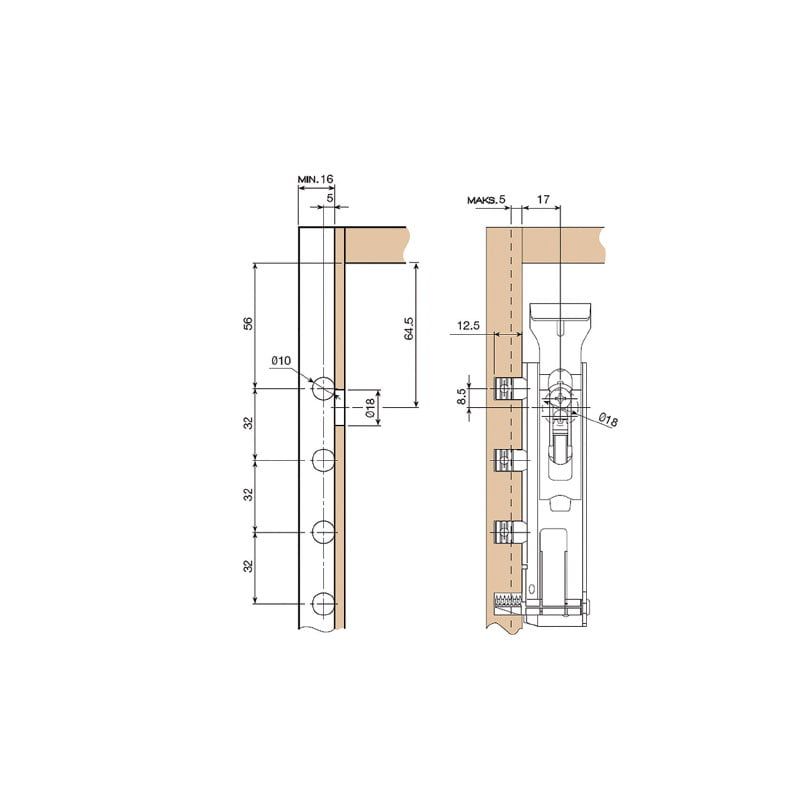

  • A Ø18mm hole provides access to all adjustments. Adjustment screws never penetrate the back of the furniture.
  • Depth adjustment: up to 18mm both at the front and back, in this case, without any need to drill the back of the furniture.
  • Height adjustment: up to 18mm with a Phillips® No.2, Ø6 screwdriver or a Pozidriv® No.2, Ø6.
  • Nominal load of 65 kgs. per hanger. DIN 68840 standard certified by LGA (equivalent to 260Kg. of final load per set), cabinet height 700mm. depth 350mm. Please check for smaller sizes.
  • For a cabinet of 600-1.000 mm height and 300-350 mm depth.





All Variations

SKUPriceProductQuantityAdd to Cart
ID.5510-30.D£1.68 (ex. VAT) £2.01 (inc. VAT)Cabinet hanger, right side
ID.5510-30.K£1.68 (ex. VAT) £2.01 (inc. VAT)Cabinet hanger, left side
ID.5510-42£0.33 (ex. VAT) £0.39 (inc. VAT)Hanging plate (for 2 hangers)
ID.3045-518£0.08 (ex. VAT) £0.10 (inc. VAT)Cover cap for hanger, D-18 mm, matt nickel color

Additional information


Cabinet hanger, right side, Cabinet hanger, left side, Hanging plate (for 2 hangers), Cover cap for hanger, D-18 mm, matt nickel color
