Cabineo 8 M6 Starterset

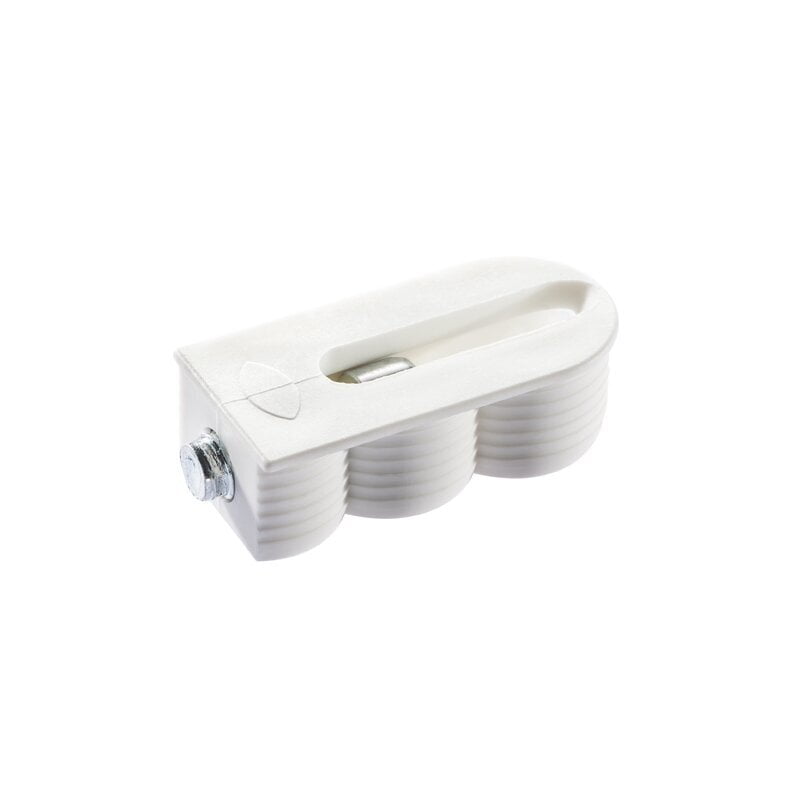

Cabineo 8 M6 is a one-piece cabinet connector which can be used with all CNC machines because only surface machining is required. The connector is ideal when joining wood composites with materials such as aluminium, steel or compact laminate.
After installing the connector in the board, the pre-assembled metric screw is screwed into a threaded hole or a socket, using a cordless drill. Cabineo impresses with its time-saving processing and assembly as well as the high clamping force which leads to stable connections without the need for additional dowels.

The Cabineo insert M6 is a threaded insert to drive in, which can be used in combination with the Cabineo 8 M6. It is ideal for applications where the thread cannot be cut directly into the workpiece or to increase the strength in corner and dividing panel joints. The Cabineo insert M6 is hammered into the through-hole of the middle panel so that the Cabineo can reach into the insert from both sides. The same connector and insert can be used everywhere for corner and dividing panels.

  • Cabineo 8 M6 (80 pieces)
  • Insert nut and cover caps (40 pieces each)
  • Cabineo insert nut tapping aid (1 piece)
  • Cabineo hex bit 1/4″ (1 piece)

Technical information

View Lamello range here

Lamello page

Catalog page


£86.40 (ex. VAT) £103.68 (inc. VAT)

SKU: 186306 Categories: , Tag:
