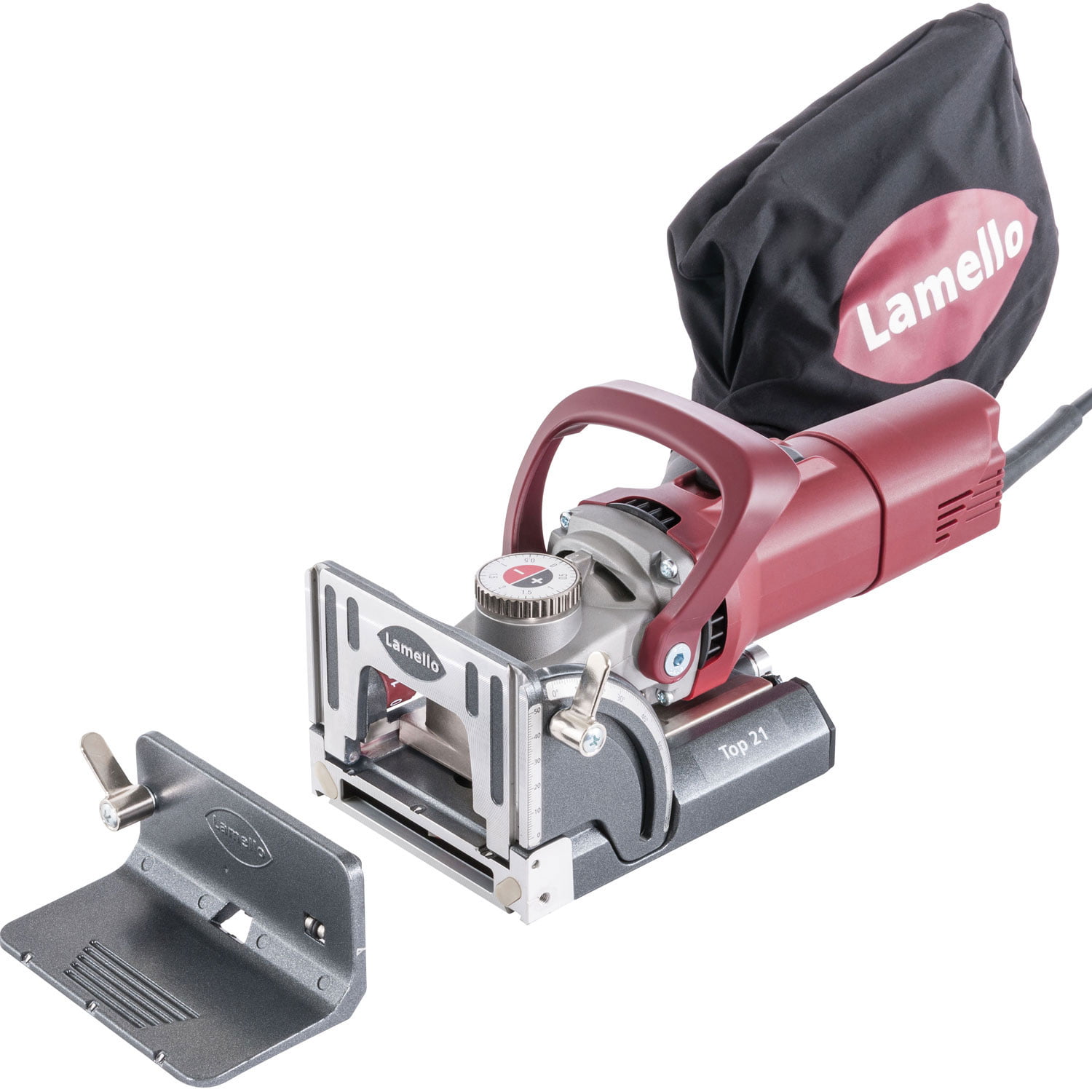

Biscuit joiner Top 21, 230 V
PRODUCT INFORMATION
Top 21 is the biscuit joiner from the inventor of the Lamello System and includes a height adjustable blade for cutting the 4 mm groove. The unique height adjustment of the cutter in steps from 0.1 mm to max. 4 mm allows positioning the groove in the middle of the material thickness. Precision in every component leads to perfect accuracy of the workpieces and saves time. The multifunctional stop square allows perfect mitres by applying on the exterior surface and stabilises the machine in vertical position
- Versatile: A cutting principle for many different joining elements.
- Swivelling front stop with fixed pivot point: Join reliably with the cutter which is in the exact center between to two application surfaces
- P-System depth adjuster: Extremely fast rotation to set different depths for the P-System joining elements: 10, 12, 14, 15 or 18.
- Multifunctional stop square: In addition to vertical stability resulting from the larger contact area, the stop quare enables variable adjustment of the groove position, 0-50 mm.
- Voltage (V): 230 V
- Power (W): 1050 W
- Speed (U/min): 9’000 minˉ¹
- Cutting depth max: 20 mm
- Weight (kg): 3,7 kg
Technical information

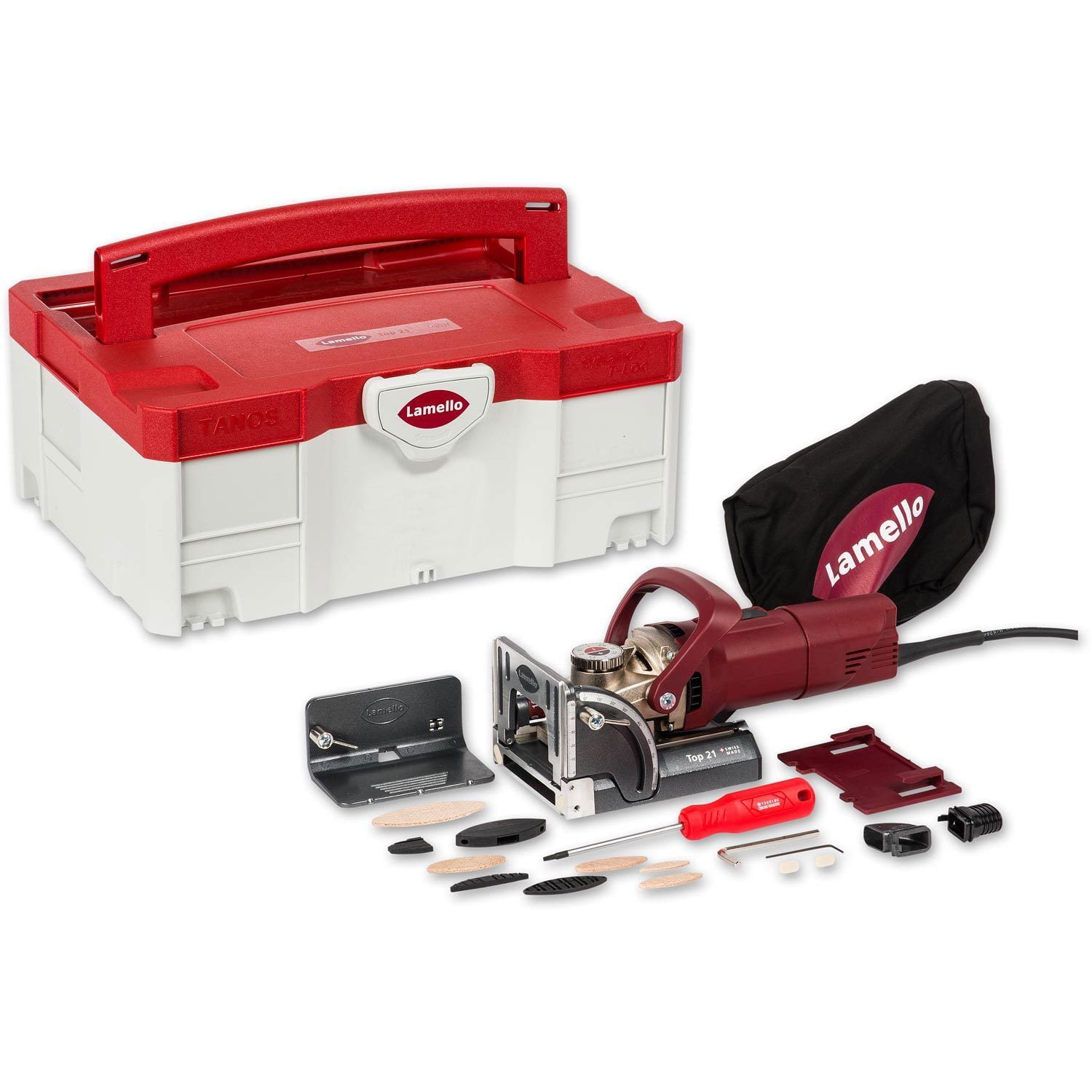

Set contains:
- Top 21
- Carbide tipped cutter
- Suction stub 23 mm
- Suction stub 36 mm
- Dust bag
- Stop square
- Spacer 4 mm
- Tool set
ORDER INFORMATION
£967.50 (ex. VAT) £1,161.00 (inc. VAT)
