The Hawa Concepta III is a premium pivot sliding door system widely used in modern kitchens, wardrobes, and fitted furniture projects across the UK.
This guide explains the full installation process in a clear, structured way, so installers, contractors, and designers can follow along using:
- Official installation PDF

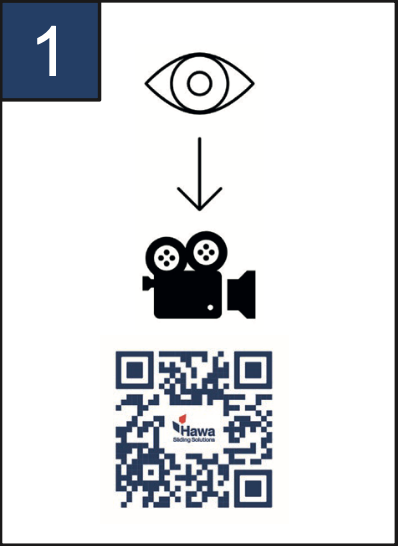

- Installation video
- Step-by-step images (you can insert these below each step)
Before You Start
This system requires precision installation. Before beginning:
- Read the full installation PDF
- Watch the installation video at least once
- Check all measurements carefully
Important Rule:
Every arrow in the PDF shows a direction of movement or rotation. Always follow these exactly.
Step 1: Cabinet Preparation
The cabinet must be perfectly prepared before installing any hardware.
What to check:
- Internal width, height, and depth match the PDF
- Cabinet is square and level
- Panels are rigid and securely fixed
Use the PDF:
Check exact minimum and maximum dimensions
Watch video:
Look at how cabinet alignment affects door movement

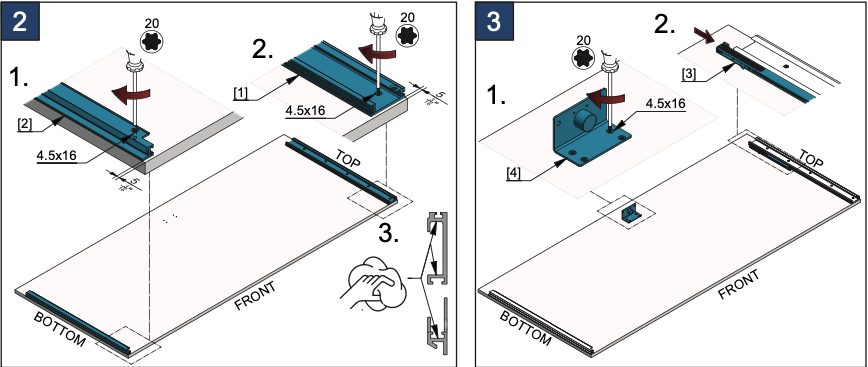

Step 2: Install the Top Track
The top track is the main load-bearing component.
Installation:
- Mark drilling positions precisely (from PDF)
- Fix the track securely
- Use a spirit level to ensure perfect alignment
Critical:
Even small misalignment will affect door movement.
Follow:
- Hole positions
- Fixing distances
Watch:
- Proper track alignment technique
Step 3: Install the Bottom Guide System
Step 4: Prepare the Door Panels
Door preparation must be done accurately.
What to do:
- Drill all required holes using the template
- Install pivot fittings and hardware
- Attach running components
Very Important:
Incorrect drilling = system failure.
Always:
- Use drilling template from PDF
Watch:
- Exact positioning of hardware
Step 5: Mount the Doors
Now the doors are installed into the system.
Process:
- Insert door into top track
- Connect bottom guide
- Engage pivot mechanism
Follow:
- Exact sequence from PDF
Watch:
- How installers safely position the door
Step 6: Adjust the System
Step 7: Final Testing
Test the system thoroughly.
Check:
- Smooth opening and closing
- Full concealment
- No resistance or noise
Critical Installation Rule – Follow All Arrows in the PDF
The installation PDF includes directional arrows at every stage.
These arrows show:
- Direction to rotate screws
- Movement direction of parts
- Correct orientation of components
If you ignore arrows:
- The system may not function correctly
- Components may be installed incorrectly
- Doors may not align or slide properly
Always stop and check arrows before each step
Folding Door Systems for Kitchens in the UK
The Hawa Concepta III is one of the most advanced solutions for:
- Kitchen pocket doors
- Hidden workspaces
- Minimalist interiors
Why professionals choose it:
- Clean, handle-less design
- Space-saving functionality
- High-end architectural finish
Final Advice
The Hawa Concepta III is not a basic system—it requires:
- Careful reading of the PDF
- Watching the video at every stage
- Precise installation work
At Gamma Fittings, we strongly recommend using:
PDF instructions
Installation videos
Step-by-step visual references
