Wall panel hanging hanger 814Z

PRODUCT INFORMATION

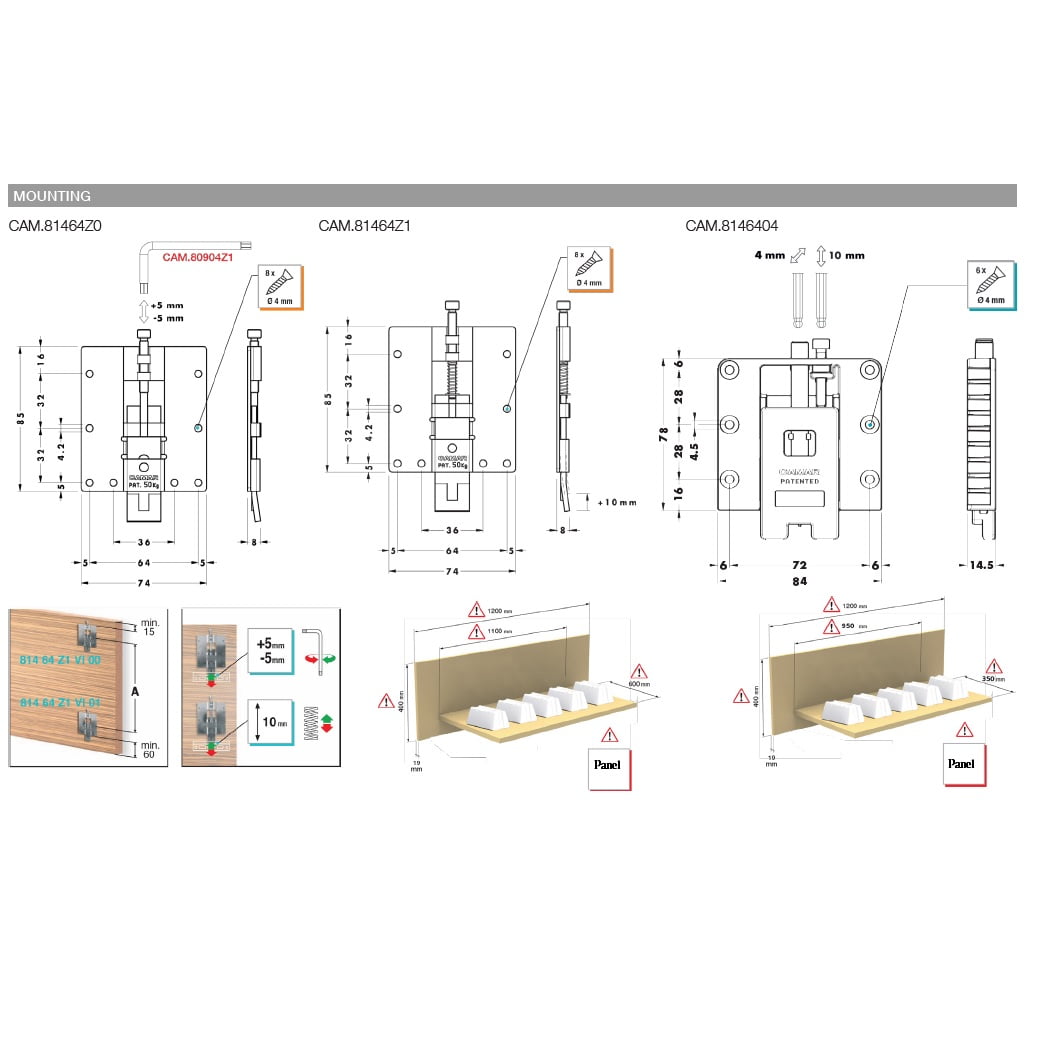

  • Thickness is only 8 mm.
  • 10 mm vertical and 4 mm horizontal  adjustment with mm hexagonal key.
  • Capacity loading 30 kilos per piece of holder with hanging plate (when panel dimensions are 1200x19x400 mm and a cabinet on the panel is not bigger than 1100×600 mm).

The optional accessories: hexagonal adjustment key for hanging plate CAM.890ACZ1.

ORDER INFORMATION

Clear

£0.35£1.99 (ex. VAT)

Additional information

Product

Bracket without spring (upper), Bracket with spring (lower), Hanging plate

Thickness,mm

8, –

Adjustment, mm

10, –
