Classic X cordless biscuit joiner, In systainer; including 2 batteries and charger

PRODUCT INFORMATION

Classic X is the original biscuit joiner from the inventor of the Lamello system for cutting the 4 mm groove. The proven and well-designed Classic X is fast and versatile in its use and the basis for the wide range of connectors with fixed, self-clamping and detachable solutions. Precision in every component leads to perfect accuracy of the workpieces, and the battery drive means even more flexible application. The multifunctional stop square allows perfect mitres by applying on the exterior surface and stabilises the machine in vertical position.

• CAS battery pack: Powerful 18V LiHD battery pack from the CAS battery system, in two sizes with 4.0 Ah or 5.5 Ah
• Swivelling front stop with fixed pivot point: Join reliably with the cutter which is in the exact center between to two application surfaces
• Multifunctional stop square: In addition to vertical stability resulting from the larger contact area, the stop quare enables variable adjustment of the groove position, 0-50 mm.
• Voltage (V): 18 V
• Power (W): 740 W
• Speed (U/min): 6’040 minˉ¹
• Cutting depth max: 20 mm
• Teeth:Z6 (3+3 alternating teeth)
• Weight (kg): 3.1 kg incl. battery 4.0 Ah, 3.5 kg incl. battery 5.5 Ah

Technical information

View Lamello range here

Manual

Lamello page

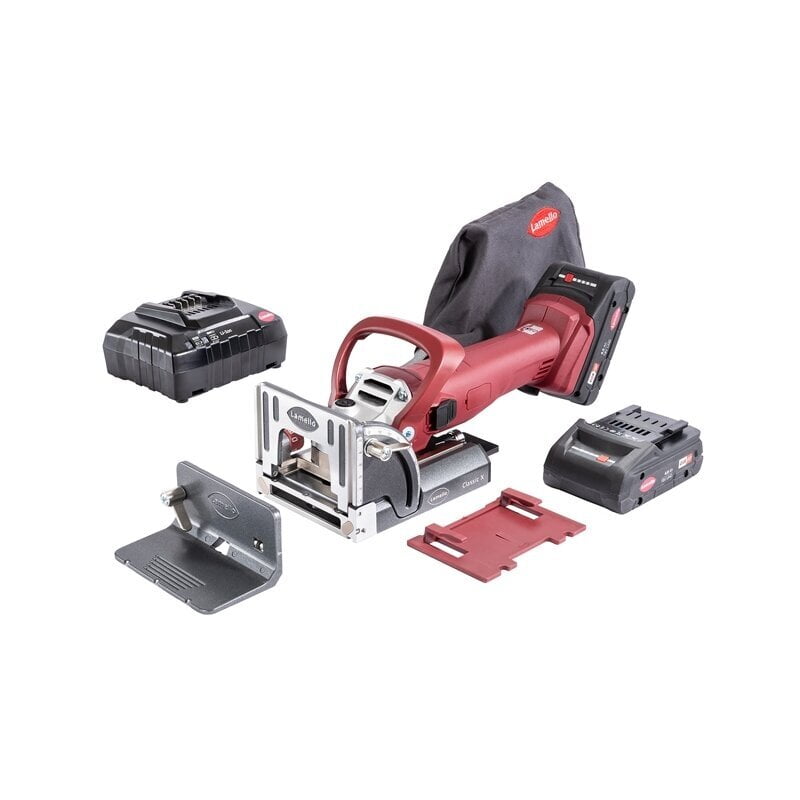

The set consists of:

• Classic X cordless
• 2 batteries 18V, LiHD 4.0 Ah
• Charger ASC 55, plug type C Euro
• Carbide tipped cutter
• Suction stub 36 mm
• Stop square
• Spacer 4 mm
• Tool set
• Dust bag
